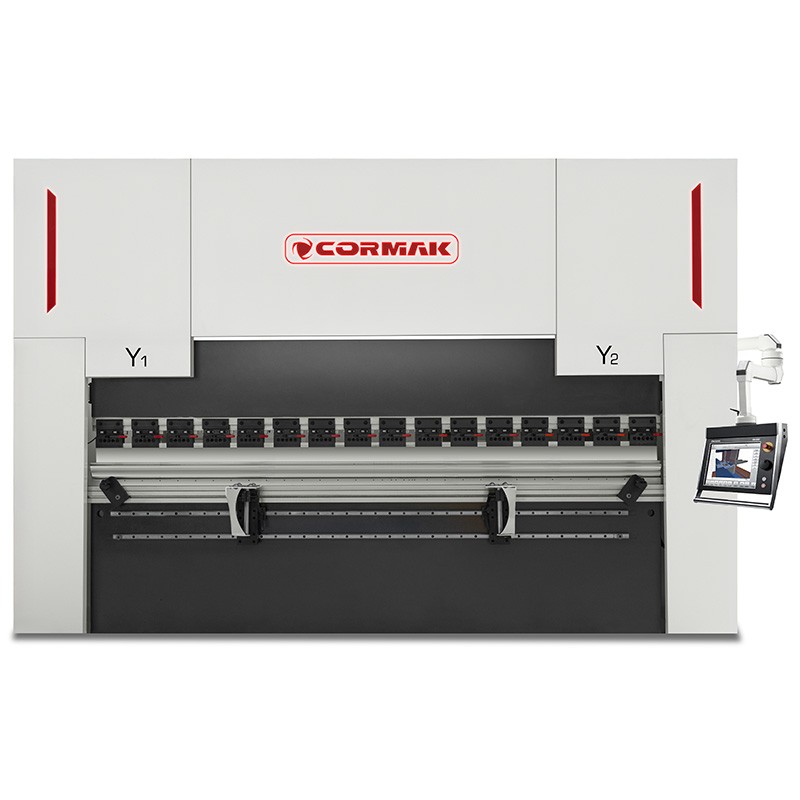

The presented configuration represents the most commonly chosen setup by our customers – a proven and efficient choice for serial production.

Main Features:

• Front supports: 2 pieces on linear guides, ensuring stability during bending operations

• Axis control Y1, Y2: servo drive with encoders

• Back gauge control (X-axis): servo drive with encoders

• R-axis control: servo drive with encoders

• Automatic crowning compensation

• Double-sided punch clamping: quick-change AMADA-type system allowing rapid tool changes

Available configurations can be adapted to the production requirements and type of workpieces – the machine specification is determined individually according to application and technological needs.

Technical parameters

Automatic control of back gauge travel (X-axis) and R-axis (manual option*). The R-axis facilitates bending larger radii, for example using step bending.

Optional control of fingers in axes Z1, Z2, R1, R2, X1, X2 with servomotors.

To achieve a satisfactory step-bending effect, certain calculations are necessary, requiring knowledge of key parameters of the bending process:

• Arc length – the distance between the ends of the bent sheet curve, measured along the inner side of the bend;
• Number of bends – the number of single bends required to achieve the desired radius; the higher the number of bends, the smaller the individual bend angle and the smoother the curve;
• Distance between bends – spacing between individual bends performed during the process.

Although the step-bending process may seem complex, CORMAK machines and software are so advanced that they automate much of the operator’s work.

Automatic deflection crowning compensation

Ensures consistent bending angle across the entire bending length – (option*)

Manual deflection crowning compensation (option*)

Ensures consistent bending angle along the full bending length – (option*)

High-quality components:

• Electrical components from Schneider / Delta / Eaton



Control and Functionality:

DELEM DA-58T

• Equipped with a 10” touch screen mounted on a movable arm, allowing full workspace freedom
• Programmability: storage of up to 2,000 programmes with 30 steps each, ensuring flexibility for different bending tasks
• Ergonomic operation: intuitive menu with English shortcuts for quick learning and efficient use

Optional DELEM controllers available: DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12

DA-53T+2D

Display

• 10.1" TFT LCD touch screen
• Full colour

External software

• Offline Profile-53TL workstation licence (bending sequence creation on PC)

System

• Windows operating system
• 200 MHz processor
• 1GB internal memory
• Collision-preventing axis control logic

Functions

• Die and punch library /30 punches & 60 dies/ – descriptive and graphical library
• Programme library with graphical preview and product cataloguing
• Material database /ability to add new materials/
• Part drawing creation on controller screen /2D/
• Bending programme generation based on part drawing /2D/
• Real-time 2D bending sequence simulation
• 2D bending simulation with collision preview /step-by-step bending simulation/
• Warning message system /e.g. tool load limits/
• Ability to change bending order and modify individual steps
• Saving and editing correction data in memory
• Manual operating mode
• Manual positioning of back gauge axes
• Collision-preventing control logic for X, R, Y1, Y2 axes
• Automatic stroke calculation
• Automatic bending force calculation depending on material type
• Automatic back gauge positioning
• Automatic calculation of inner radius and material allowance
• Backup creation for products and tools
• USB port

DA-58T

Display

• 15" TFT LCD touch screen
• Full colour

External software

• Offline Profile-53TL workstation licence (bending sequence creation on PC)

System

• Windows operating system
• 200 MHz processor
• 4Mb RAM
• Maximum number of programmes: 9999 (25 steps max)
• Maximum step repetitions: 99
• Collision-preventing axis control logic

Functions

• Die and punch library /30 punches & 60 dies/
• Descriptive and graphical library
• Programme library with graphical preview and product cataloguing
• Material database /ability to add new materials/
• Part drawing creation on controller screen /2D/
• Bending programme generation based on part drawing /2D/
• Real-time 2D bending sequence simulation
• 2D bending simulation with collision preview /step-by-step bending simulation/
• Warning message system /e.g. tool load limits/
• Ability to change bending order and modify programme steps, including corrections saved in memory
• Manual operation mode
• Manual positioning of back gauge axes with collision-preventing logic for X, R, Y1, Y2 axes
• Automatic stroke calculation
• Automatic bending force calculation depending on material type
• Automatic back gauge positioning
• Automatic inner radius and material allowance calculation
• Backup creation for products and tools
• USB port
• Backup creation for products and tools

DA-66T

Display

• 17” TFT LCD touch screen
• Full colour

External software

• LITE T2D workstation licence (bending sequence creation on PC)

System

• Intuitive controller with clear interface
• Stable Windows CE operating system
• 64Mb RAM
• Maximum number of programmes: 1000 /1Gb/
• Maximum step repetitions: 99

Functions

• 2D part drawing creation on the controller display
• Automatic bending programme generation based on 2D drawing
• Automatic stroke and bending force calculation depending on material
• Automatic back gauge positioning according to bending programme
• 3D visualisation of bending process (step-by-step simulation)
• Automatic back gauge finger positioning behind indicated punch/die segment
• Tool-material collision detection alerts
• Overload warning messages
• Change of bending sequence and correction of programme steps
• Automatic sheet development calculation
• Manual axis control (using rotary dial)
• Manual mode operation
• Material database
• Punch and die library
• Programme library with graphical preview and product catalogue
• Stroke and working hour counter
• USB port
• Backup creation for tools and programmes

DA-69T

Display

• 17” TFT LCD touch screen
• Full colour

External software

• LITE T3D workstation licence (3D bending sequence creation on PC)

System

• Stable Windows CE operating system
• 64Mb RAM
• Maximum number of programmes: 1000 /1Gb/
• Maximum step repetitions: 99

Functions

• DXF file import
• 3D function import to IGES & SAT from LITE T3D software
• 3D part drawing creation on the controller screen
• Automatic 3D bending programme creation from product drawing
• Automatic stroke and bending force calculation based on material
• Automatic back gauge positioning
• 3D visualisation of the bending process (step-by-step simulation)

CYBELEC 12

Display

• 12” TFT LCD touch screen
• Full colour

System

• Stable Windows CE operating system
• Maximum number of punches: 100
• Maximum number of dies: 100
• Maximum number of programmes: 300
• Maximum step repetitions: 24
• Maximum number of materials: 10

Functions

• User-friendly HMI interface
• 2D profile drawing and 3D visualisation
• Automatic bending sequence
• High bending accuracy through advanced algorithms
• Tandem mode
• Tool import
• Pre-bending / Post-bending
• Angle measurement support
• Barcode reader support
• Industry 4.0 ready configuration

The machine combines advanced technology with ease of use, making it an ideal choice for both precision manual tasks and efficient serial production. High-quality components and advanced safety systems ensure reliability and safe operation.

Safety

Laser safety system

Standardly equipped with a high-class laser safety system, protecting the operator and doubling the bending speed.

We do not compromise on safety! The machine uses top-class hydraulic connections and safety valves designed in Poland.

Beware of pseudo safety systems such as gates or light curtains, as they do not comply with CE standards and expose operators to risk. As an employer, you are responsible for the safety of your employees!

CE-compliant safety covers

Ergonomics and Additional Features:

• Mobile controller on articulated arm
• LED lighting: improves comfort and safety at work
• Supports on linear guides
• Follow-up supports (option*)

We prioritise safety for our clients and their teams — our press brakes are equipped with a comprehensive range of safety features, including clear markings, side guards, rear safety gates, and easily accessible emergency stops.

Each machine is delivered with a clear and detailed instruction manual.

CE declaration alone does not guarantee safety — the installed systems are what truly matter!

SCO – Oil cooling system

Standard feature ensuring stable machine operation parameters even during long continuous use.

Tool clamping system:

• Standard configuration includes split multi-groove four-sided dies and sectional punches
• The basic system used in CORMAK press brakes is the manual AMADA (European) quick-change system for rapid tool replacement
• Punches are side-mounted and locked with bolts

Selection of die and punch

Choosing the right tooling — die and punch — is essential for the final result.
CORMAK press brakes continuously monitor bending parameters and automatically compensate for deviations during operation to ensure optimal results.

Depending on press force, sectional punches and dies may vary in length.

Included in the machine price

Telephone consultations with a specialist

You can always rely on professional technical support.

Terms of cooperation

• 24-month warranty
• Factory-new machine
• Warranty and post-warranty service provided by the seller

Training and Machine Commissioning

It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
