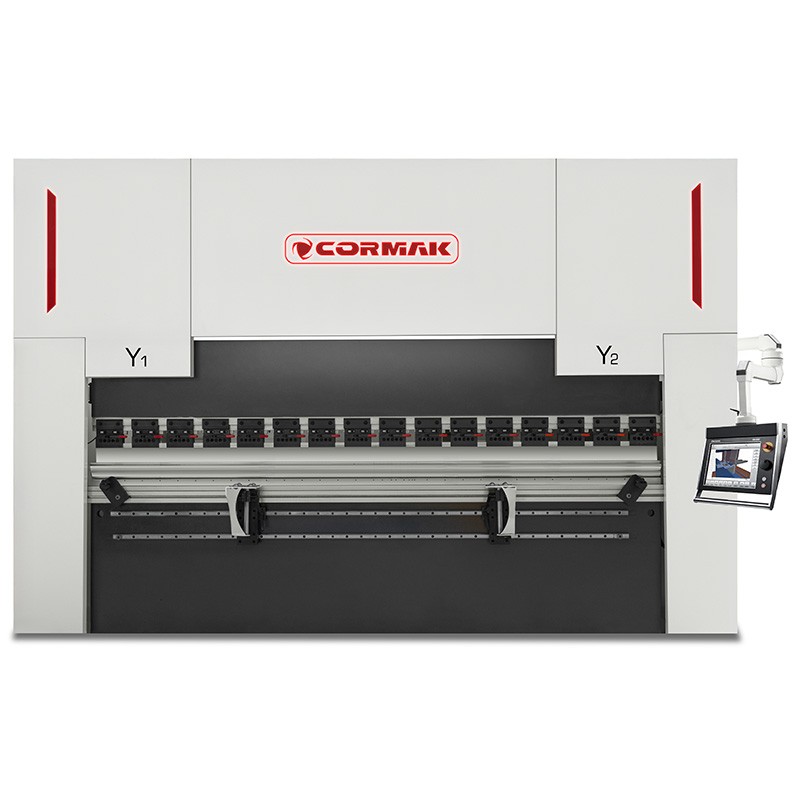

The presented configuration represents the most commonly chosen equipment by our clients – a proven and efficient solution for serial production.

Main Features:

• Front supports: 2 pcs on linear guides, ensuring stability during bending operations.

• Axis Y1, Y2 adjustment: automatic

• Backgauge adjustment (X-axis): servo drive with encoders

• R-axis adjustment: servo drive with encoders

• Automatic crowning compensation

• Double-sided punch clamping: quick-change AMADA type system allowing for fast tool replacement

Available configurations are adapted to the production requirements and the type of processed parts – machine specifications are determined individually according to application and technological needs.

Technical parameters

Automatic backgauge travel (X-axis) and R-axis adjustment (manual option*). The R-axis facilitates bending with larger radii, e.g. step bending systems.

Optional finger adjustment on axes Z1, Z2, R1, R2, X1, X2 with servomotors.

For a satisfactory step bending result, it is necessary to perform certain calculations requiring knowledge of several key parameters related to the bending process – these are:

• Arc length – the distance between the ends of the bent curve of the sheet, measured on the inner side of the bend;
• Number of bends – the number of individual bends that must be performed to achieve the desired bending radius; the greater the number of bends, the smaller the angle of each bend, resulting in a smoother curve;
• Distance between bends – the distance between each bend made during the process.

Although the entire step bending process may seem complicated, CORMAK machines and software are so advanced that they automate most of the operator’s work.

Automatic crowning compensation

Ensures a consistent bending angle along the entire working length – (option*)

Manual crowning compensation (option*)

Ensures a consistent bending angle along the entire working length – (option*)

High-quality components:

• Electrical components from Schneider/Delta/Eaton



Control and Functionality:

DELEM DA-58T

• Equipped with a 10-inch touchscreen, mounted on a movable arm allowing freedom of operation across the entire working area of the machine.
• Programmability: the ability to save up to 2000 programs with 30 steps each, allowing flexible adaptation to various tasks.
• Ergonomic operation: intuitive menu with English abbreviations ensures quick familiarisation and efficient use.

Optionally available controllers: DELEM DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12

DA-53T+2D

Display

• 10.1” TFT LCD touchscreen
• Colour display

External software

• Offline workstation licence Profile-53TL (bending sequence creation on PC)

System

• Windows operating system
• 200 MHz processor
• 1GB internal memory
• Control logic preventing axis collisions

Functions

• Library of punches and dies /30 punches & 60 dies/ – descriptive and graphical library
• Program library with graphical preview and product cataloguing
• Material database /ability to add new sheet metal types/
• Creation of bent element drawings directly on the controller (2D)
• Automatic program creation based on product drawing (2D)
• 2D real-time bending sequence preview
• 2D bending simulation with collision view (step-by-step simulation)
• Warning message system (e.g. tool overload)
• Ability to modify bend order and individual steps
• Correction entry and memory storage functions
• Manual operation mode
• Manual positioning of backgauge axes
• Automatic calculation of beam stroke and bending force depending on material
• Automatic backgauge positioning and material development calculation
• Backup creation for tools and products
• USB port

DA-58T

Display

• 15” TFT LCD touchscreen
• Colour display

External software

• Offline workstation licence Profile-53TL (bending sequence creation on PC)

System

• Windows operating system
• 200 MHz processor
• 4Mb RAM
• Max number of programs: 9999 (25 steps max)
• Max step repetitions: 99
• Control logic preventing axis collisions

Functions

• Library of punches and dies /30 punches & 60 dies/
• Descriptive and graphical library
• Graphical program library with product cataloguing
• Material database /ability to add new bending materials/
• 2D drawing creation on display
• Automatic program generation based on product drawing (2D)
• 2D real-time bending sequence simulation with collision preview
• Automatic beam stroke and bending force calculation
• Automatic backgauge position and radius computation
• Manual operation mode with full control over backgauge axes
• Backup creation for products and tools
• USB port

DA-66T

Display

• 17” TFT LCD touchscreen
• Colour display

External software

• LITE T2D licence (bending sequence creation on PC)

System

• Intuitive controller
• Stable Windows CE operating system
• 64Mb RAM
• Max number of programs: 1000 /1Gb/
• Max repetitions per step: 99

Functions

• 2D drawing and program generation directly on the controller
• Automatic calculation of stroke and bending force based on material type
• Automatic backgauge setup according to the bending program
• 3D bending simulation (step-by-step)
• Automatic adjustment of backgauge fingers to punch and die position
• Collision detection and warning messages
• Automatic sheet development calculation
• Manual or automatic operation modes
• Material, tool, and program libraries with graphic preview
• Stroke and work hour counters
• USB port with backup capability

DA-69T

Display

• 17” TFT LCD touchscreen
• Colour display

External software

• LITE T3D workstation licence (3D bending sequence creation on PC)

System

• Intuitive interface
• Stable Windows CE operating system
• 64Mb RAM
• Max number of programs: 1000 /1Gb/
• Max repetition per step: 99

Functions

• Import of DXF files
• Import of 3D IGES & SAT functions from LITE T3D software
• 3D creation of product drawings directly on the controller
• Automatic bending program generation from 3D model
• Automatic stroke and force calculation according to material type
• Automatic backgauge setup
• 3D visualisation and step-by-step bending simulation

CYBELEC 12

Display

• 12” TFT LCD touchscreen
• Colour display

System

• Intuitive interface
• Stable Windows CE operating system
• Max punches: 100
• Max programs: 300
• Max steps: 24
• Max materials: 10

Functions

• User-friendly HMI interface
• 2D profile drawing and 3D visualisation
• Automatic bending sequence generation
• Highest bending precision through advanced algorithms
• Tandem mode
• Tool import
• Pre-/post-bend functions
• Angle measurement support
• Barcode reader support
• Industry 4.0 compatible

The machine combines advanced technology with user-friendly operation, making it an ideal choice for both precision manual tasks and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator protection.

Safety

Laser safety system

A high-end laser safety system protecting the operator and increasing bending efficiency by over two times is included as standard.

We never compromise on safety! The highest-class hydraulic connections and safety valves are designed by CORMAK.

CE-compliant safety guards

Ergonomics and Additional Features:

• Mobile controller on articulated arm
• LED lighting: improves comfort and safety during operation
• Front supports on linear guides
• Servo-driven following supports (option*)

Our press brakes are equipped with comprehensive safety systems, including clear safety markings, side guards, a rear safety gate, and easily accessible emergency stop buttons.

Each machine comes with a complete user manual.

A CE declaration alone does not guarantee safety – the installed systems do!

SCO – Oil Cooling System

Standard system ensuring stable operating parameters even during long and continuous use.

Tool Clamping System:

• Standard divided four-sided multi-groove dies and segmented punches
• Manual AMADA (European) type system enabling quick tool changes
• Punches are side-mounted and locked with bolts

Selection of Punch and Die

Proper tool selection is key to achieving the desired bending results.
CORMAK press brakes continuously measure bending parameters and automatically compensate for deviations during operation to ensure optimal results.

Depending on the press force, segmented punches and dies may vary in length.

Included with the machine

Training and Machine Commissioning

It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
