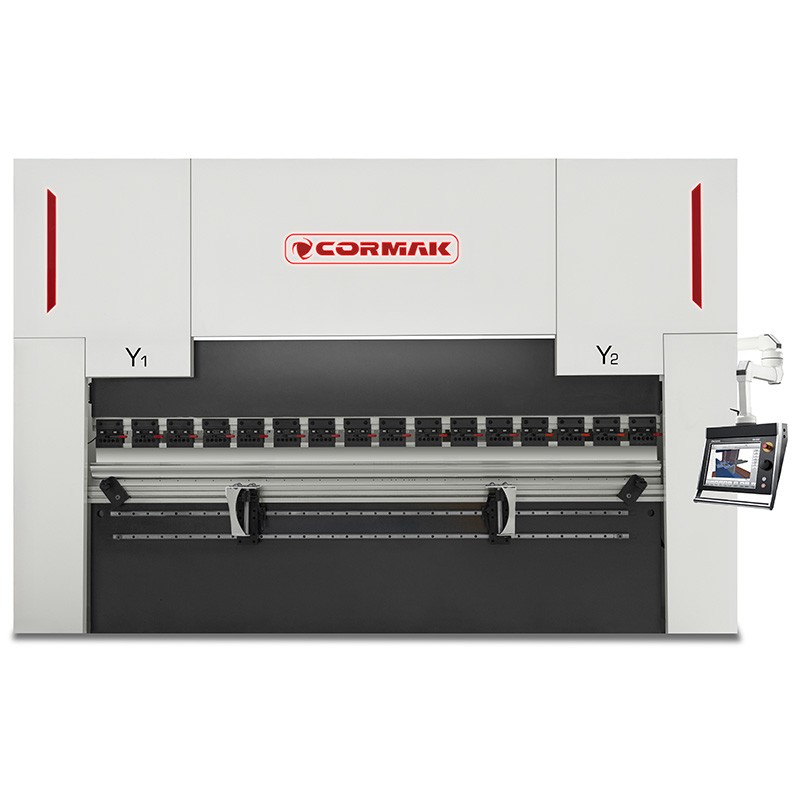

The presented configuration represents the most frequently chosen equipment by customers – a proven and efficient choice for serial production.

Main Features:

• Front supports: 2 pieces on linear guides, ensuring stability during bending operations

• Y1, Y2 axis control: automatic

• Backgauge adjustment (X axis): automatic

• R axis adjustment: automatic

• Automatic crowning compensation

• Double-sided punch clamping: quick-release AMADA type system allowing fast tool changes

Available configurations are tailored to production needs and part types – machine specifications are individually defined according to application and technological requirements.

Technical parameters

Automatic backgauge (X axis) and R axis adjustment (manual in option*). The R axis facilitates bending of larger radii, e.g. with step bending system.

Optional finger adjustment in axes Z1, Z2, R1, R2, X1, X2 with servomotors.

For a satisfactory step-bending result, it is necessary to perform certain calculations that require knowledge of several key parameters related to the bending process – these include:

• Arc length – the distance between the ends of the curved section of the sheet, measured along the inner side of the bend;
• Number of bends – the total number of bends required to achieve the desired bending radius; the greater the number of bends, the smaller the angle of each individual bend, resulting in a smoother curve;
• Distance between bends – the spacing between successive bends made during the process.

Although the entire step-bending process may seem complex, CORMAK machines and software are now advanced enough to automate most operations, relieving the operator of many tasks.

Automatic crowning compensation

Ensures a consistent bending angle across the entire working length – (option*)

Manual crowning compensation (option*)

Ensures a consistent bending angle across the entire working length – (option*)

High-quality components:

• Electrical system components from Schneider/Delta/Eaton



Control and Functionality:

DELEM DA-58T

• equipped with a 10-inch touchscreen mounted on a movable arm, allowing freedom of operation within the entire working area
• Programmability: capacity to store up to 2,000 programs, each with 30 steps, allowing flexible adaptation to various production tasks
• Ergonomic operation: intuitive menu with English shortcuts facilitates quick learning and efficient work

Optional controllers available: DELEM DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12

DA-53T+2D

Display

• 10.1" TFT LCD touchscreen
• colour display

External software

• Profile-53TL offline software licence (creating bending sequences on PC)

System

• Windows operating system
• 200 MHz processor
• 1GB internal memory
• control logic prevents axis collision

Functions

• punch and die library /30 punches & 60 dies/ – descriptive and graphical
• program library with graphical preview and product cataloguing
• material database with the option to add new materials
• creation of part drawings directly on the controller display (2D)
• bending program creation based on the drawn product (2D)
• real-time 2D bending sequence simulation
• step-by-step 2D simulation with collision preview
• warning messages (e.g. tool overload)
• ability to modify the bending sequence and individual program steps
• manual operation mode
• manual backgauge axis positioning
• automatic calculation of ram stroke, bending force and material development
• USB port

DA-58T

Display

• 15" TFT LCD touchscreen
• colour display

External software

• Profile-53TL offline software licence (PC-based bending sequence creation)

System

• Windows operating system
• 200 MHz processor
• 4Mb RAM
• max number of programs: 9999 (25 steps max)
• max step repetitions: 99
• control logic preventing axis collision

Functions

• punch and die library /30 punches & 60 dies/
• graphical program preview and product cataloguing
• material database with custom material entry
• 2D element drawing and bending program creation
• 2D real-time bending sequence simulation with collision detection
• automatic calculation of ram stroke and bending force
• manual axis control
• automatic calculation of backgauge position, bend radius and material development
• backup creation for tools and products
• USB port

DA-66T

Display

• 17” TFT LCD touchscreen
• colour display

External software

• LITE T2D offline software licence (bending sequence creation on PC)

System

• intuitive controller interface
• stable Windows CE operating system
• 64Mb RAM
• max number of programs: 1000 /1GB/
• max step repetitions: 99

Functions

• 2D part drawing and program generation
• automatic calculation of ram stroke and bending force
• 3D bending simulation with step-by-step visualisation
• automatic backgauge positioning according to the bending sequence
• automatic finger positioning behind selected punch or die segment
• collision and overload warnings
• sheet development and bending sequence correction
• manual mode with handwheel control
• material, punch and die libraries
• work counter and hour meter
• USB port for backups

DA-69T

Display

• 17” TFT LCD touchscreen
• colour display

External software

• LITE T3D offline software licence (bending sequence creation on PC)

System

• Windows CE operating system
• 64Mb RAM
• max number of programs: 1000 /1GB/
• max step repetitions: 99

Functions

• DXF file import
• 3D IGES & SAT import from LITE T3D software
• 3D drawing and automatic program generation
• automatic ram stroke and bending force calculation
• 3D bending simulation with collision detection

CYBELEC 12

Display

• 12” TFT LCD touchscreen
• colour display

System

• intuitive controller interface
• Windows CE operating system
• max number of punches: 100
• max number of programs: 300
• max step repetitions: 24
• max number of materials: 10

Functions

• User-friendly HMI interface
• 2D profile drawing and 3D visualisation
• Automatic bending sequence
• High precision through advanced algorithms
• Tandem support
• Tool import
• Pre-bending and post-bending
• Angle measurement support
• Barcode reader compatibility
• Industry 4.0 ready

The machine combines advanced technology with ease of use, making it ideal for both precise manual tasks and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator protection.

Safety

Laser safety system

Standard on all models: a high-class laser safety system that protects the operator and doubles the bending speed.

We never compromise on safety! Only certified hydraulic connections and safety valves are used.

Warning: pseudo safety systems such as light curtains or frames are not CE-compliant and can expose operators to serious injury. As an employer, you are responsible for the safety of your employees!

Safety guards in accordance with CE

Training and Machine Commissioning

It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
