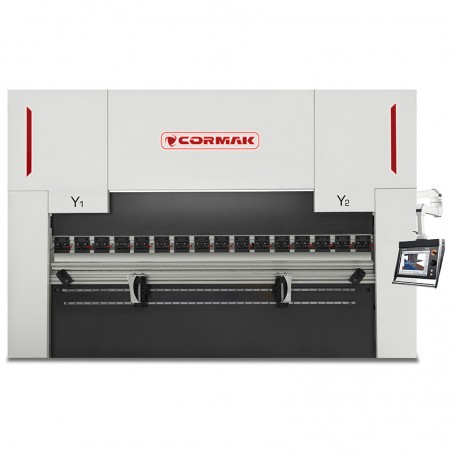

The presented configuration is the most frequently chosen by customers – a proven and efficient choice for serial production

Main Features:

• Front supports: 2 pcs on linear guides ensuring stability during bending operations

• Y1, Y2 axis adjustment: automatic

• Back gauge adjustment (X axis): servo drive with encoders

• R axis adjustment: servo drive with encoders

• Automatic crowning adjustment

• Two-sided punch clamping: quick-release AMADA-type system allowing for fast tool changes

Available configurations can be tailored to production needs and the type of workpieces – the machine specification is determined individually according to the application and technological requirements.

Technical parameters

Automatic adjustment of back gauge travel (X axis) and R axis (manual option available). The R axis facilitates bending with larger radii, e.g. step bending system.

Optional adjustment of fingers in axes Z1, Z2, R1, R2, X1, X2 driven by servomotors.

To achieve a satisfactory step bending effect, it is necessary to perform certain calculations that require knowledge of several key parameters related to the bending process, such as:

• Arc length – the distance between the ends of the curved section of the sheet measured along the inner bending line;
• Number of bends – the number of individual bends required to obtain a sheet with a specific radius; the higher the number of bends, the smaller each bending angle and the smoother the arc;
• Distance between bends – the spacing between consecutive bends performed during the process.

Although the step bending process may appear quite complex, CORMAK machines and software are now so advanced that they can relieve the operator of most of the calculation tasks.

Automatic crowning compensation

Ensures consistent bending angle along the entire bending length – (option)

Manual crowning compensation (option)

Ensures consistent bending angle along the entire bending length – (option)

High-quality components:

• Electrical system components by Schneider/Delta/Eaton



Control and Functionality:

DELEM DA-53TX

• Equipped with a 15-inch touchscreen mounted on a movable arm, allowing full freedom of operation within the working area
• Advanced programming algorithms with automatic bending sequence calculation
• Supports up to four axes, enabling more complex operations
• Compatible with a wide range of press brakes
• Option: creation of a 2D drawing of the bent element on the controller screen
• Option: automatic generation of bending programmes based on the product drawing (2D)
• Option: real-time 2D view of bending sequences during operation

Optional DELEM controllers available: DA-53T+2D, DA-66T as well as DA-69T, or CYBELEC 12

DA-53T+2D

Display

• 10.1" TFT LCD touchscreen
• Full colour

External software

• Offline workstation licence Profile-53TL (creation of bending sequences on PC)

System

• Windows operating system
• 200 MHz processor
• 1GB internal memory
• Command interface in English
• Control logic preventing axis collision

Functions

• Library of punches and dies (30 punches & 60 dies) – both descriptive and graphical
• Programme library with graphic preview and product cataloguing
• Material database (option to add new materials)
• Drawing creation directly on the controller screen (2D)
• Programme generation based on product drawing (2D)
• Real-time 2D visualisation of bending sequences during operation
• 2D bending simulation with collision detection (step-by-step)
• Warning message system (e.g. tool overload)
• Possibility to change bend order and modify programme steps
• Correction saving and editing options
• Manual operation mode
• Manual axis positioning of back gauge
• Collision-preventing control logic for X, R, Y1, Y2 axes
• Automatic ram stroke calculation
• Automatic bending force calculation depending on material
• Automatic back gauge positioning
• Automatic calculation of internal radius and material development
• Backup capability for tools and product data
• USB port

DA-58T

Display

• 15" TFT LCD touchscreen
• Full colour

External software

• Offline workstation licence Profile-53TL (creation of bending sequences on PC)

System

• Windows operating system
• 200 MHz processor
• 4Mb RAM
• Max programme number: 9,999 (25 steps max)
• Max step repetition: 99
• Command interface in English
• Control logic preventing axis collision

Functions

• Punch and die library (30 punches & 60 dies)
• Descriptive and graphic library
• Programme library with graphical preview and product cataloguing
• Material database (option to add new materials)
• Creation of a bent part drawing directly on the controller screen (2D)
• Programme generation based on product drawing (2D)
• Real-time 2D preview of bending sequences
• 2D simulation with collision preview (step-by-step)
• Warning system (e.g. exceeding tool capacity)
• Editable bend sequence and step correction
• Manual operation mode
• Manual back gauge axis control
• Collision-preventing logic for X, R, Y1, Y2 axes
• Automatic calculation of ram stroke
• Automatic calculation of bending force by material type
• Automatic calculation of back gauge position
• Automatic inner radius and material development calculation
• Backup of tools and product data
• USB port

DA-66T

Display

• 17” TFT LCD touchscreen
• Full colour

External software

• Offline workstation licence LITE T2D (creation of bending sequences on PC)

System

• Intuitive controller with English commands
• Stable Windows CE operating system
• 64Mb RAM
• Max number of programmes: 1,000 /1GB/
• Max step repetition: 99

Functions

• 2D drawing of bent elements directly on the controller
• Automatic creation of bending programme from product drawing
• Automatic calculation of ram stroke and bending force
• Automatic back gauge positioning according to bending programme
• 3D visualisation of bending process (step-by-step)
• Automatic positioning of back gauge fingers according to die and punch segment
• Collision and overload warnings
• Customisable bend order
• Automatic flat pattern calculation
• Programme step correction options
• Manual back gauge control (rotary navigation knob)
• Manual operation mode
• Material database
• Punch and die library
• Programme library with graphical view and product catalogue
• Stroke and operating hour counter
• USB port
• Data backup for tools and products

DA-69T

Display

• 17” TFT LCD touchscreen
• Full colour

External software

• Offline workstation licence LITE T3D (creation of bending sequences on PC)

System

• Intuitive controller with English commands
• Stable Windows CE operating system
• 64Mb RAM
• Max number of programmes: 1,000 /1GB/
• Max step repetition: 99

Functions

• DXF file import
• 3D import to IGES & SAT from LITE T3D software
• 3D creation of bent element drawings directly on the controller
• Automatic creation of bending programme from product drawing (3D)
• Automatic calculation of ram stroke and bending force
• Automatic back gauge positioning according to programme
• 3D visualisation of bending process (step-by-step)

CYBELEC 12

Display

• 12” TFT LCD touchscreen
• Full colour

System

• Intuitive controller with English commands
• Stable Windows CE operating system
• Max punches: 100
• Max programmes: 300
• Max step repetition: 24
• Max materials: 10

Functions

• User-friendly HMI interface
• 2D graphic profile drawing and 3D visualisation
• Automatic bending sequence
• Highest bending precision through advanced algorithms
• Tandem operation
• Tool import capability
• Pre-bend / Post-bend options
• Angle measurement support
• Barcode reader support
• Industry 4.0 ready

The machine combines advanced technology with ease of operation, making it ideal for both precise manual work and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator safety.

Safety

Laser Safety System

Only with us as standard – a high-class laser safety system protecting the operator and increasing bending efficiency over twofold.

We never compromise on safety! Top-quality hydraulic fittings and safety valves designed for reliability.

Be cautious of pseudo safety systems such as light barriers or light curtains, as they may not comply with CE standards and could endanger employees. As an employer, you are responsible for the safety of your team!

CE-compliant safety guards

Ergonomics and Additional Features:

• Mobile controller on movable arm
• LED lighting: improves comfort and safety at work
• Supports on linear guides
• Follow-up supports (optional)

We care about the safety of our customers and their teams. Our press brakes are equipped with a range of advanced safety features, including clear labelling, side guards, rear safety gate and easily accessible emergency stop buttons.

Each machine is supplied with a clear and detailed user manual.

Having a CE declaration does not automatically mean the machine is safe – its safety depends on the systems installed!

SCO – Oil Cooling System

Standard system ensuring stable operating parameters even after long periods of continuous operation.

Tool Clamping System:

• Divided multi-slot four-sided dies and segmented punches included as standard
• The standard system used in CORMAK press brakes is the manual AMADA (European) system allowing for quick tool changes
• Punches are side-mounted and locked with screws

Selection of dies and punches

For optimal bending results, the correct choice of die and punch is essential.
CORMAK press brakes continuously measure bending parameters and can correct deviations in real time to ensure the best possible results.

Depending on the press force, segmented punches and dies may vary in length.

Included with the machine

Telephone consultations with a specialist

You can always rely on expert support.

Terms of cooperation

• 24-month warranty
• Brand new machine
• Warranty and post-warranty service provided by the supplier

Training and Machine Commissioning

It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.

Contact our advisor to get more information.

Contact us

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
