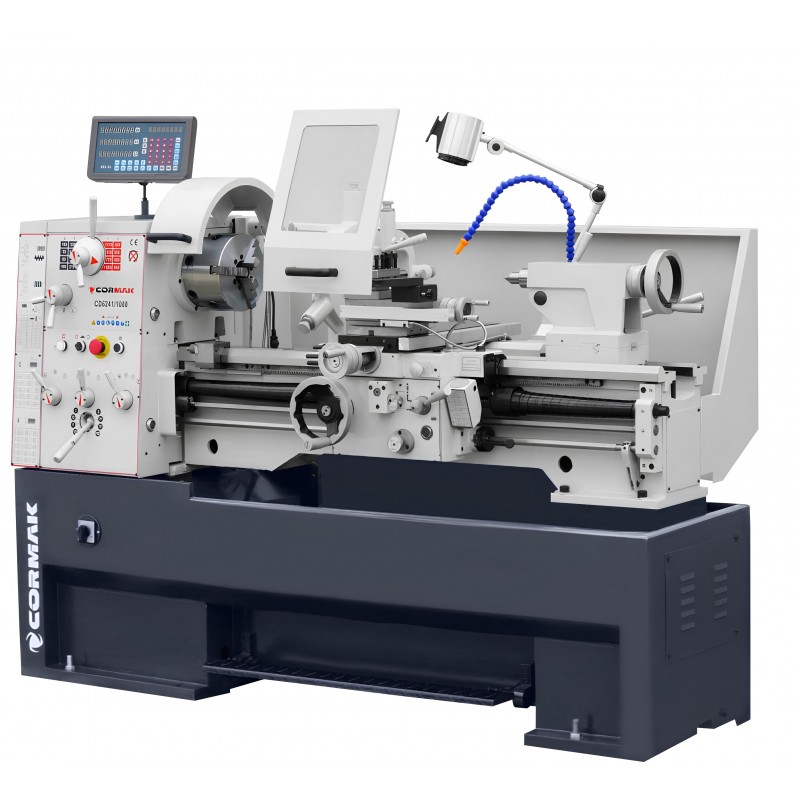

Universal Conventional Lathe CORMAK 410 x 1000 with 3-Axis Digital Readout – precision, strength and functionality for professional workshops
The CORMAK 410 x 1000 UNIVERSAL LATHE is a conventional metalworking machine designed for precise and efficient cutting operations in industrial and workshop environments. Built with robust components and advanced engineering, this lathe guarantees reliability, dimensional repeatability and versatility for continuous-duty applications.
Main features
- Universal machining capability – enables external and internal turning, taper cutting, threading (metric, inch, module and D.P.), drilling and broaching.
- 3-axis digital readout (DRO) with optical scales – full control and precision in longitudinal, cross and compound slide movement.
- Hardened and ground 250 mm-wide bed – cast-iron design ensuring rigidity, vibration damping and precision.
- Spindle bore 52 mm on a reinforced bearing system – stability and smooth operation even on large workpieces.
- Direct spindle speed and feed adjustment via ergonomic control panel – faster setup and intuitive operation.
- Wide threading range – 42 metric and inch, 18 module and 21 D.P. threads, without the need to change gears.
- Removable bed gap – allows turning of large-diameter workpieces up to Ø580 mm.
Design and technology
The CORMAK 410 x 1000 lathe is built on a stable cast-iron body with a precision-machined bed, ensuring rigidity and long-term reliability. The CAMLOCK D1-6 spindle with MK6 taper provides outstanding concentricity and strength. The drive system operates within 16 spindle speeds (45–1800 rpm), allowing optimal adjustment for a wide variety of materials.
Precision and performance
The hardened and ground spindle gearbox gears ensure quiet operation, minimal backlash and long component life. The DRO system enables accurate feed control with 0.02 mm precision, ideal for serial or single-piece production. An integrated threading dial allows quick reference positioning and error-free multi-pass thread cutting.
Applications
The CORMAK 410 x 1000 conventional lathe is ideal for:
- toolrooms and repair workshops,
- maintenance and service departments,
- production facilities,
- technical schools and training centres.
Its construction supports a wide range of turning operations while maintaining top-level accuracy and repeatability.
Technical parameters
| 3-jaw chuck |
200 mm |
| Max. swing over bed |
410 mm |
| Swing over cross slide |
255 mm |
| Swing in gap |
580 mm |
| Distance between centres |
1000 mm |
| Centre height |
205 mm |
| Compound slide travel |
145 (0.02) mm |
| Cross slide travel |
225 (0.02) mm |
| Longitudinal travel |
750 (0.2) mm |
| Bed width |
250 mm |
| Spindle bore |
52 mm |
| Spindle mount |
D1-6 CAMLOCK |
| Spindle taper |
MK6 |
| Tool post size |
100 × 100 × 32 mm |
| Max. tool size |
20 × 20 mm |
| Spindle speeds |
16 ranges (45 – 1800 rpm) |
| Metric threads |
(42) 0.2 – 14 mm/rev |
| Inch threads |
(42) 2 – 72 TPI |
| Module threads |
(18) 0.3 – 3.5 mm |
| D.P. threads |
(21) 8 – 44 DP |
| Longitudinal feeds |
(17) 0.05 – 1.7 mm/rev |
| Cross feeds |
(17) 0.025 – 0.85 mm/rev |
| Tailstock quill diameter |
50 mm |
| Tailstock quill travel |
120 (0.02) mm |
| Tailstock taper |
MK4 |
| Main motor power |
2.2 / 3.3 kW |
| Coolant pump power |
0.1 / 0.12 kW |
| Dimensions (L × W × H) |
2050 × 900 × 1650 mm |
| Weight (net) |
1600 kg |
Standard equipment
- 3-axis digital readout (optical scales)
- 3-jaw chuck 200 mm + left/right jaws (set)
- 4-jaw chuck 250 mm
- Faceplate 350 mm
- Fixed steady rest
- Travelling steady rest
- Fixed centre MK4
- Spindle reducing sleeve MK6/MK4
- Change gear set (complete)
- Cooling system
- Work light
- Oiler
- Chuck and tool post wrench
- Maintenance tool kit
- CE-compliant safety guards
- User manual (EN)
- CE declaration of conformity
- 6 vibration isolators
Optional equipment
- Taper-turning attachment
- Turning tool set 20×20 mm – 7 pcs (with inserts)
- Precision live centre MK4
- Drill arbor MK4/B16
- Drill chuck B16 3–16 mm
- Cobalt drill set HSS-CO5 / 1–13 mm
- Cutting fluid ES-12 1 L
Invest in precision and reliability. Choose the proven CORMAK 410 × 1000 conventional lathe – a machine built to handle demanding metalworking applications. Contact us or order now!
