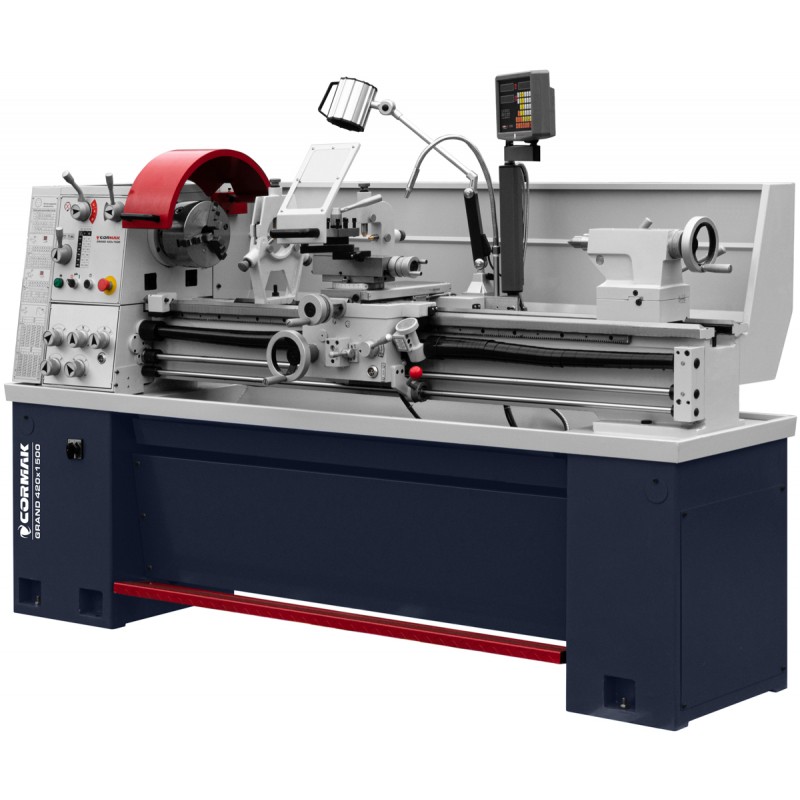

Conventional Universal Lathe Set CORMAK GRAND 420x1500 with Turning Tools and Live Centre
Professional lathe GRAND 420x1500 is an enhanced and optimised model of popular metalworking lathes. This universal metal lathe is equipped with a 12-speed gearbox (45–2000 rpm) and a constant-speed 2.4kW / 400V induction motor delivering maximum torque and a spindle bore of 55 mm. Recommended for turning hard steels and mechanical machining, it performs internal and external turning, taper turning, polishing, metric and inch threading, drilling, and broaching. Designed for professional use in small- and medium-scale production.
Variant
Conventional Universal Metal Lathe CORMAK CD6241/1000 410x1000 with Cutting Tools and Live Centre
Conventional Universal Lathe Set CORMAK 410x1500 with Turning Tools and Live Centre
Conventional Universal Lathe CORMAK 420x1100
Conventional Universal Metal Lathe CORMAK CD6241/1000 410x1000 with 3-Axis DRO
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€11,137.50
The lowest price of this product in the last 30 days before the discount was €11,137.50 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Conventional Universal Lathe CORMAK GRAND 420x1500 with Turning Tool Set and Live Centre – precision tool for professional metalworking
UNIVERSAL LATHE CORMAK GRAND 420x1500 is a robust and precise conventional metal lathe designed for demanding users in production, maintenance, and training environments. This model features a rigid cast-iron bed, a two-axis digital readout, and high-quality equipment – including a set of 20x20 mm turning tools (7 pcs) and a precision live centre MK4.
Main advantages
- Rigid cast-iron bed (left and right cast-iron base) – maximum vibration reduction and precise tool guidance.
- Hardened and ground guideways – long-lasting accuracy and stability.
- Two-axis digital readout – control of longitudinal and cross feeds.
- Reinforced spindle bearing system – increased rigidity and precision of operation.
- Large spindle bore 55 mm – for machining larger diameter workpieces.
- Two-range motor 2.0 / 2.4kW – efficient main drive system.
- 12 spindle speeds – smooth regulation from 45 to 2000 rpm.
- Stepless feed and thread selection – no need to change gears manually.
- Adjustable overload clutch on the leadscrew – protects feed mechanisms.
- Central feed selector – quick change between shaft and leadscrew functions.
- Thread dial indicator – ensures repeatability and precision when threading.
Technical specifications
| 3-jaw chuck | 200 mm |
| Max. turning diameter over bed | 390 (420) mm |
| Turning diameter over carriage | 240 mm |
| Turning diameter in gap | - |
| Turning length between centres | 1500 mm |
| Max. workpiece length with chuck and centre | 1400 mm |
| Bed width | 220 mm |
| Spindle bore | 55 mm |
| Spindle speeds | 12 ranges (I/II) 45–2000 rpm |
| Speed ranges | I: 45–1000, II: 90–2000 rpm |
| Spindle nose | D1-5 CAMLOCK |
| Spindle taper | MT6 |
| Tool post size | 90 x 90 x 32 mm |
| Max. tool size | 20 x 20 mm |
| Top slide travel | 110 (0.04) mm |
| Cross slide travel | 195 (0.04) mm |
| Longitudinal travel | 1150 (0.15) mm |
| Metric threads | (36) 0.8–14 mm |
| Inch threads | (36) 2–28 TPI |
| Longitudinal feeds | (64) 0.03–0.42 mm/rev |
| Cross feeds | (64) 0.006–0.11 mm/rev |
| Tailstock quill travel | 110 (0.04) mm |
| Tailstock quill diameter | 45 mm |
| Tailstock taper | MT4 |
| Main motor power | 2.0 / 2.4 kW (S1/S6) |
| Coolant pump power | 0.1 kW |
| Dimensions (L x W x H) | 2400 x 780 x 1650 mm |
| Weight | 920 kg ±2% |
Standard equipment
- Set of 20x20 mm turning tools – 7 pcs with inserts
- Precision live centre MK4
- 2-axis digital readout SDS2-MS (optical scale)
- 3-jaw chuck 200 mm + inside and outside jaws
- Fixed and travelling steady rests
- 2 × dead centre MK4
- Reducing sleeve MK6/MK4
- Complete change gear set
- Cooling system
- Work light
- Oil gun, service wrenches
- User manual, CE declaration
- Safety guards compliant with CE standards
Optional equipment
- 4-jaw chuck 200 mm + 200 mm faceplate
- Drill arbor MK4/B16
- Drill chuck B16 (3–16 mm)
- HSS-CO5 drill set (1–13 mm)
- Cutting oil / coolant ES-12 1L
Choose proven quality and precision. Select the CORMAK GRAND 420x1500 metal lathe with complete equipment ready for work from day one. Contact our team and order the full set today!
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
