Conventional Universal Lathe CORMAK 460x1500

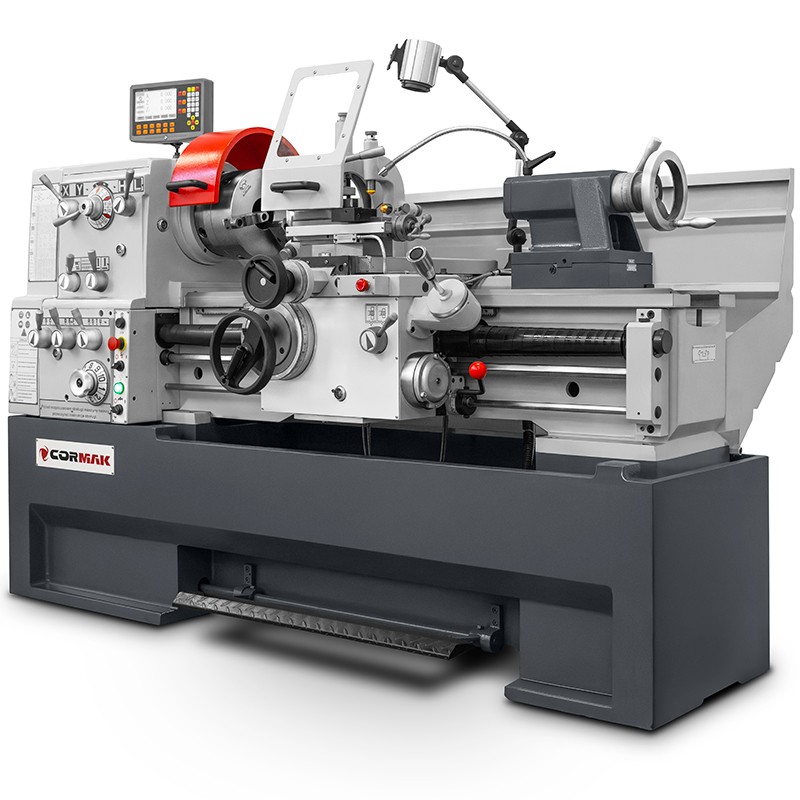

Conventional Universal Lathe CORMAK 460x1500 – reliable industrial metal lathe

CORMAK 460x1500 is a professional universal lathe designed for precision machining of metal parts in industrial plants, locksmith workshops and toolrooms. With its rigid cast iron construction, large spindle bore and 3-axis digital readout, this conventional lathe ensures stability, repeatability and efficiency even in the most demanding applications.

Main advantages of the machine

• Solid cast iron bed construction, hardened and precisely ground, provides excellent vibration damping and long service life.
• Stable cast iron base ensures firm machine positioning and precise operation even under heavy loads.
• Long turning length – 1500mm – allows machining of long workpieces in a single setup.
• Spindle bore 80mm enables machining of pipes and shafts with large internal diameters.
• 3-axis digital readout (optical scales) – full control of carriage position and operation repeatability.
• 3-jaw chuck 250mm – fast workpiece clamping and high holding force.
• High-quality spindle bearings – smooth and stable operation across all speed ranges.
• 5.5kW (S1) motor – reliable performance even in long machining cycles.
• Rapid longitudinal and cross feed system – increases productivity and shortens cycle time.
• Removable bed bridge – allows machining of workpieces up to 690mm in diameter.

Design and technology

The CORMAK 460x1500 model is designed for intensive use. The large-bore spindle is mounted on reinforced bearings, driven by a multi-range gearbox with hardened and ground gears. Parameter control is conveniently operated from the ergonomic control panel. Thread cutting in a wide range (metric, inch, module, D.P.) without the need to change gears in the gearbox significantly increases operator efficiency.

Precision and performance

The machine is equipped with a leadscrew and feed shaft for automatic feeds and precise threading. The built-in threading dial indicator facilitates thread pitch reproduction and speeds up subsequent passes. The digital readout system provides full positioning control on all three axes, making it ideal for tasks requiring high precision and repeatability.

Applications

The CORMAK 460x1500 lathe is suitable for any workshop where precision and reliability matter:

• Maintenance and repair departments,
• Locksmith and toolmaking workshops,
• Production plants,
• Technical schools and training workshops.

Technical parameters:

Standard equipment

• 3-axis digital readout (optical scales)
• 6 vibration isolators
• Fixed and travelling steadies
• Dead centre MK4
• Reduction sleeve MK7/MK4
• Change gears
• Cooling system with pump
• LED work light
• Oiler and service tools
• Safety guards compliant with CE standards
• User manual
• CE Declaration of Conformity

Optional equipment

• Set of 25x25mm turning tools (9 pcs with carbide inserts)
• Precision live centre MK4
• Taper turning attachment
• Grinding attachment PS125
• 4-jaw chuck 250mm + drive plate D8
• Drill arbor MK4/B16 and drill chuck B16 (3–16mm)
• HSS-Co5 drill set (1–13mm)
• ES-12 coolant – 5L

Looking for a conventional lathe with a large turning capacity and robust construction? Choose CORMAK 460x1500 – a precision solution for demanding tasks. Contact our technical advisor to learn about purchase options and stock availability.
