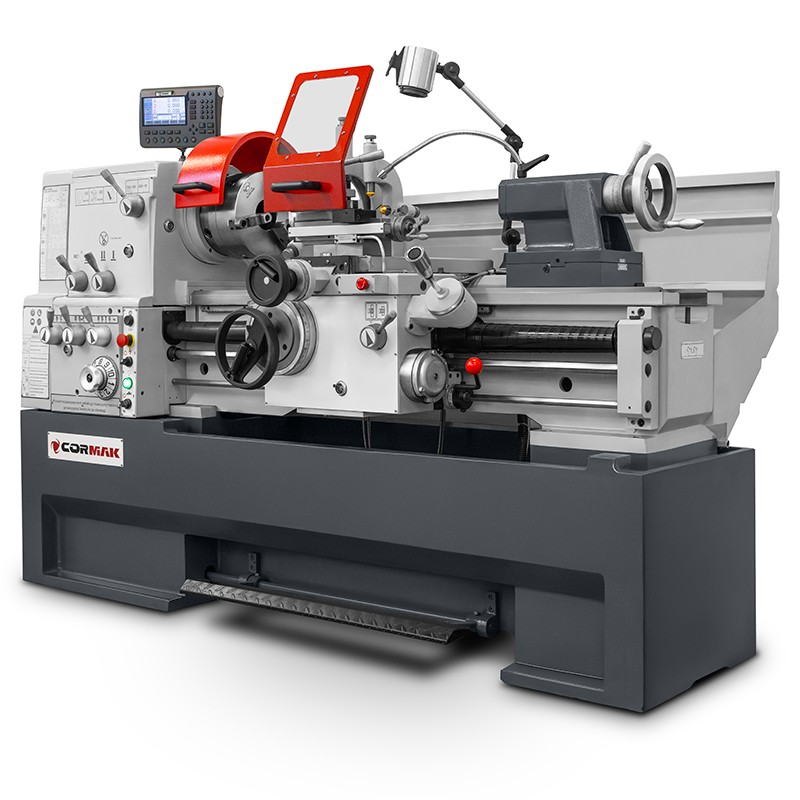

Conventional Universal Lathe CORMAK 460 x 1000 – reliable metal lathe for industry
CORMAK 460 x 1000 VARIO is a professional universal lathe designed for precision machining of metal components in industrial plants, metalworking workshops and tool rooms. Thanks to its rigid cast iron construction, large spindle bore and three-axis digital readout, this conventional lathe ensures stability, repeatability and efficiency even in the most demanding applications.
Main advantages of the machine
- Solid cast iron bed construction, hardened and precision-ground, ensures excellent vibration damping and long service life.
- Stable cast iron base provides secure positioning of the machine and precise operation even under heavy loads.
- Large turning length – 1000 mm – enables machining of long workpieces in a single setup.
- 80 mm spindle bore allows machining of pipes and shafts with large internal diameters.
- Three-axis digital readout (optical scales) – full control over carriage position and operation repeatability.
- 250 mm 3-jaw chuck – quick workpiece mounting and high clamping force.
- High-quality spindle bearings – smooth and stable operation across all speed ranges.
- 5.5 kW motor (S1) – reliable operation even during long machining cycles.
- Rapid feed system for longitudinal and cross feeds – increased productivity and reduced cycle times.
- Removable bed bridge – enables turning of workpieces up to 690 mm in diameter.
Design and technology
The CORMAK 460 x 1000 VARIO model has been designed for intensive operation. The large-bore spindle is mounted on reinforced bearings, and the drive is provided by a two-range gearbox with infinitely variable speed control and hardened, ground gears. Parameter adjustment is carried out from an ergonomic control panel. The ability to cut a wide range of threads (metric, imperial, module, D.P.) without changing change gears in the gearbox significantly increases operator efficiency.
Precision and working efficiency
The machine is equipped with a leadscrew and feed shaft for automatic feeds and precise thread cutting. Thanks to the digital readout system, the operator has full control over positioning in three axes. This is an ideal solution for tasks requiring high repeatability and precision.
Applications
The 460 x 1000 lathe by CORMAK is suitable for any facility where precision and reliability are essential:
- Maintenance and repair departments,
- Metalworking workshops and tool rooms,
- Manufacturing plants,
- Technical schools and training workshops.
Technical parameters:
| 3-jaw chuck |
250 mm |
| Maximum turning diameter over bed |
460 mm |
| Turning diameter over cross slide |
270 mm |
| Turning diameter in gap |
690 mm |
| Distance between centres |
1000 mm |
| Maximum installed workpiece length |
900 mm |
| Bed width |
300 mm |
| Spindle bore |
80 mm |
| Spindle speeds |
2 ranges
(1) 25–250 / (2) 250–1700 rpm |
| Spindle nose |
D1-8 CAMLOCK |
| Spindle taper |
MT7 |
| Tool post dimensions |
110 x 110 x 42 mm |
| Maximum tool size |
25 x 25 mm |
| Top slide travel |
128 mm |
| Cross slide travel |
285 mm |
| Longitudinal slide travel |
750 mm |
| Metric threads |
(41) 0.1–14 mm |
| Imperial threads |
(60) 2–112 T.P.I |
| Module threads |
(34) 0.1–7 M.P. |
| D.P. threads |
(50) 4–112 D.P. |
| Number and range of longitudinal feeds |
(42) 0.056–3.133 mm/rev |
| Number and range of cross feeds |
(42) 0.019–1.058 mm/rev |
| Rapid feeds |
Yes |
| Tailstock quill travel |
130 mm |
| Tailstock quill diameter |
60 mm |
| Tailstock taper |
MT4 |
| Main motor power S1/S6 |
5.5 / 6.6 kW / 400V |
| Coolant pump power |
0.1 kW |
| Dimensions L/W/H |
2200 x 1080 x 1370 mm |
| Net weight |
1920 kg |
Standard equipment
- 3-axis digital readout (optical scales)
- 6 vibration-damping mounts
- Fixed and travelling steady rest
- Fixed centre MT4
- Reduction sleeve MT7/MT4
- Change gears
- Coolant system with pump
- LED work light
- Lubricator, service tools
- CE-compliant safety guards
- User manual
- CE certification
Optional equipment*
- Lathe tool set 25x25 mm (9 pcs with indexable inserts)
- Precision live centre MT4
- Taper turning attachment
- Grinding attachment PS125
- 4-jaw chuck 250 mm + faceplate D8
- Drill arbor MT4/B16 and drill chuck B16 (3–16 mm)
- HSS-Co5 drill set (1–13 mm)
- Coolant ES-12 – 5L
Looking for a conventional lathe with a wide turning range and solid construction? Choose CORMAK 460 x 1000 VARIO – a precision solution for demanding tasks. Contact our technical consultant to learn about purchase conditions and availability.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
