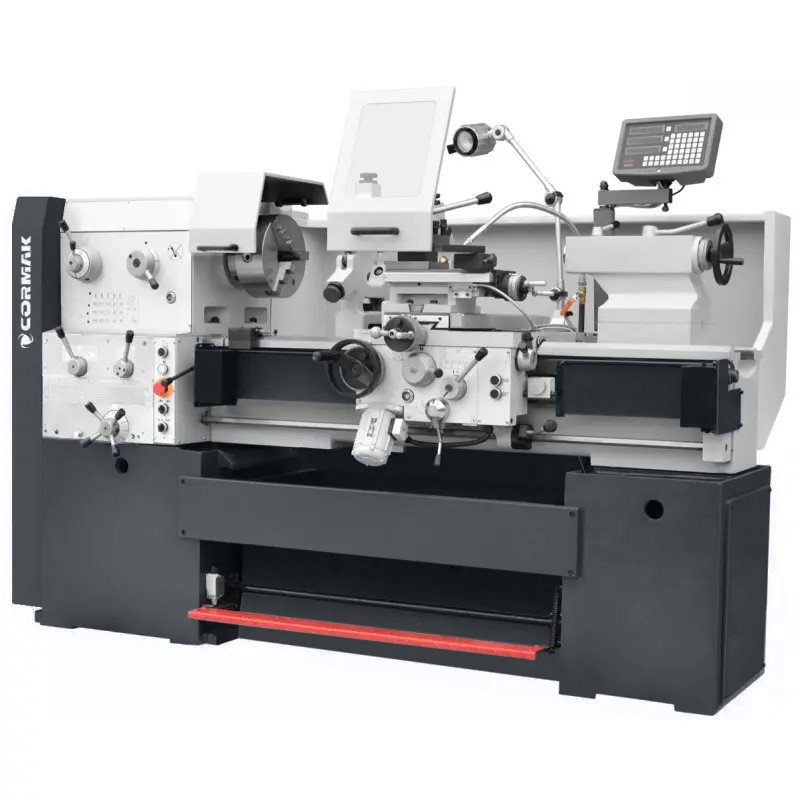

Conventional Universal Lathe Set CORMAK 500x1500/80 with Turning Tools and Live Centre

Main advantages:

• The CORMAK 500x1500/80 universal lathe (CJ6250C/1500) can be used for a wide range of machining tasks, including internal and external turning, taper machining, polishing, metric, inch, module and DP threading, drilling and broaching.
• Rapid longitudinal and cross feed system significantly shortens machining time and increases productivity.
• Combined cast-iron bed (right and left base made of cast iron) ensures maximum vibration reduction. In addition, hardened and ground guideways provide stability and precision during operation. The 325mm wide bed guarantees stable cutting conditions.
• Digital readout on three axes (longitudinal, cross and top slide). The optical scale transmits electronic signals that display the actual position on the digital screen.
• Equipped with a high-quality, reinforced spindle bearing system ensuring smooth and quiet performance.
• Excellent machining results thanks to the large 80mm spindle bore, 250mm 3-jaw chuck and a powerful 5.5kW motor.
• Hardened and ground spindle gears – guarantee long-term operational stability.
• Equipped with a leadscrew and feed shaft for threading and automatic longitudinal and cross feeds.
• Easy adjustment of spindle speeds and automatic feed rates via the ergonomic gearbox control panel.
• Wide threading capability without changing gear sets. The machine can cut metric (66) 0.5–28mm, inch (66) 1–56TPI, module (33) 0.25–3.5MP and DP (33) 8–56DP threads. Supports both right- and left-hand threads.
• Thread dial indicator allows accurate lead counting and quick re-engagement of the leadscrew nut, improving efficiency during multiple passes.
• Removable bed bridge enables machining of large-diameter components such as discs – up to 630mm diameter with the bridge removed.

Additionally included: complete 25x25mm turning tool set (7 pcs) and live centre MK5

Set of 25x25mm turning tools – 7 pcs. Professional tool set supplied in a durable case. Includes wrenches for securing inserts. Set includes: GDAR 2525 M400-25 – for MGMN 4 insert SWGCR 2525 M06 – for WCMT 06 insert SER 2525 M16 – for threading insert 16 SSSCR 2525 M12 – for SCMT 12 insert SSBCR 2525 M12 – for SCMT 12 insert S20Q-SSSCR 12 – for SCMT 12 insert S20Q-SSKCR 12 – for SCMT 12 insert S20Q-SWUCR 06 – for WCMT 06 insert SIR 0020Q 16 – for threading insert 16

Live centre MK5 Technical data: Morse taper MK5 Width A – 37mm Distance B – 120mm Distance C – 50mm Total width D – 80mm Total length L – 250mm

Technical parameters:

Standard equipment:

• Set of 25x25mm turning tools – 7 pcs (with inserts)
• 3-axis digital readout (optical scale)
• 3-jaw self-centring chuck 250mm (hard jaws – inside/outside)
• 4-jaw independent chuck 320mm (hard jaws – inside/outside)
• Faceplate 435mm
• Fixed steady
• Travelling steady
• 2 pcs. dead centres MK5
• Live centre MK5
• Spindle reduction sleeve MK7/MK5
• Cooling system
• Work light
• Lubricator
• Chuck and toolpost keys
• Set of service tools
• CE-compliant safety guards
• User manual in Polish
• CE Declaration of Conformity

Optional equipment:

• Internal/external grinding attachment PS125
• Cutting fluid ES-12 (1L)
• Taper turning attachment
