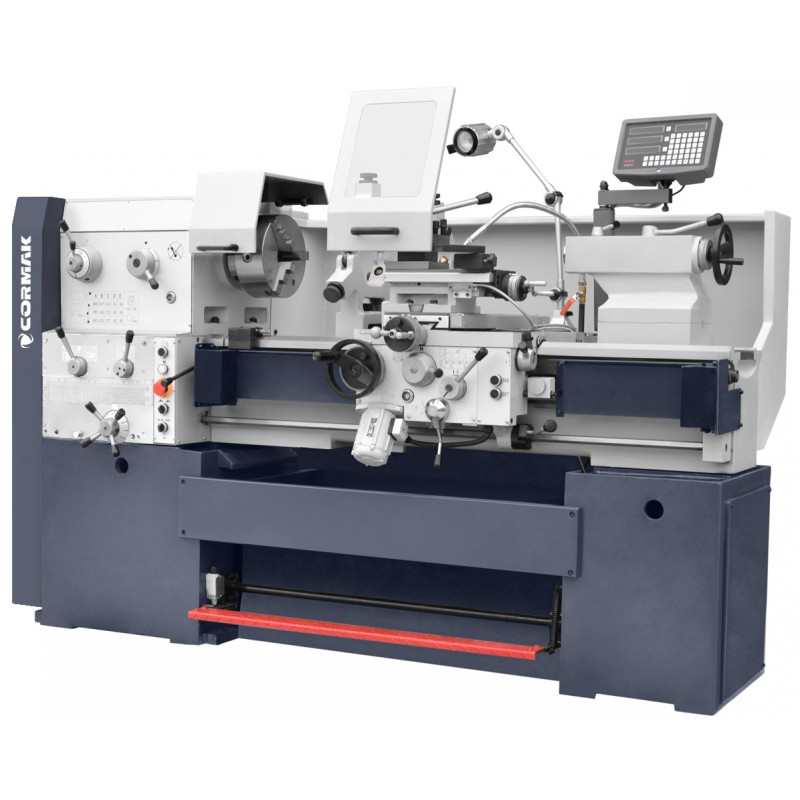

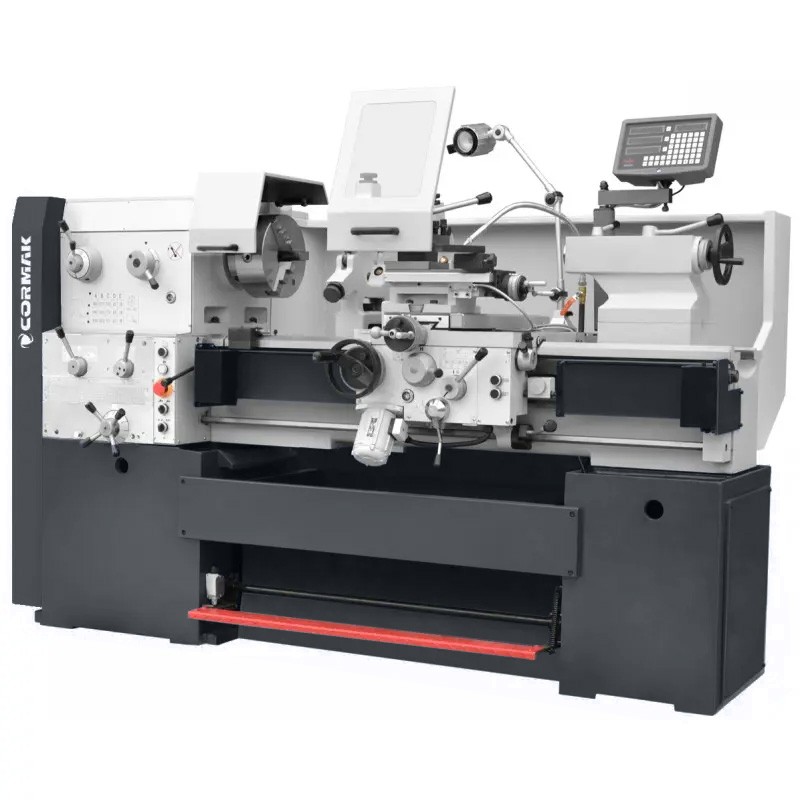

Conventional Universal Lathe Set CORMAK 500x1000/65 with Turning Tools and Live Centre

Reduced price

The industrial CORMAK 500x1000/65 metal lathe features a 15-speed gearbox and a powerful 5.5kW/400V induction motor delivering maximum torque with a large 65mm spindle bore. Recommended for machining hard steels and mechanical turning, it supports a wide range of operations including internal and external turning, taper cutting, polishing, metric and imperial threading, drilling and broaching.

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

~~€16,149.75~~

€14,649.75

The lowest price of this product in the last 30 days before the discount was €14,649.75 gross

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Professional universal lathe for precise metal machining – CORMAK 500x1000/65

The CORMAK 500x1000/65 universal lathe is a high-class conventional lathe designed for demanding machining tasks in production plants, toolrooms and locksmith workshops. The machine enables precision metal machining across a wide range of operations – from rough turning to threading and drilling. The set includes a complete set of 25x25mm turning tools and a live centre MK5, providing a ready-to-use, fully equipped solution.

Main advantages of the machine

Solid cast iron bed 325mm wide – excellent vibration damping and turning stability.
Large spindle bore 65mm allows machining of long parts with larger diameters.
High-quality spindle bearing system ensures smooth and quiet operation.
Hardened and ground gears – durability of the drive mechanism even under heavy use.
3-axis digital readout (X, Y, Z) – improved precision and process control.
Rapid longitudinal feed reduces machining time and increases productivity.
Threading versatility: metric, inch, module and D.P. – without the need to change gears.
Removable bed bridge – allows machining of components up to 630mm in diameter.

Design and technology

The lathe structure is based on a monolithic cast iron body, providing excellent rigidity even under heavy load. The spindle, featuring a CAMLOCK D1-6 mount and MK7 taper, is driven by a 5.5kW main motor, offering smooth speed regulation from 18 to 1600rpm across 15 gears. The toolpost accommodates 25x25mm cutting tools, ensuring compatibility with a wide range of tooling systems.

Precision and performance

With its digital position readout, precisely ground guideways and automatic feeds, the CORMAK 500x1000/65 metal lathe guarantees dimensional repeatability and a high-quality surface finish. The integrated thread dial indicator and the ability to cut both right- and left-hand threads make it a versatile and professional machine. The ergonomic control panel allows quick adjustment of working parameters for optimal performance.

Applications

This model is suitable for:

single and small-batch production,
shaft and machine component repair,
maintenance and service workshops,
toolmaking and locksmith industries.

Standard equipment

Set of 25x25mm turning tools – 7 pcs (with carbide inserts)
Live centre MK5
3-axis digital readout
3-jaw chuck 250mm
Faceplate 435mm
Fixed and travelling steadies
Cooling system with pump
LED work light
Set of service tools and wrenches
User manual, CE Declaration of Conformity

Optional equipment

Grinding attachment PS125
Cutting fluid ES-12
Taper turning attachment

Technical parameters

3-jaw chuck	250mm
Maximum turning diameter over bed	500mm
Turning diameter over cross slide	325mm
Turning diameter in gap	630mm
Turning length between centres	1000mm
Maximum workpiece length	900mm
Bed width	325mm
Spindle bore	65mm
Spindle speed range	15 speeds / 18–1600rpm
Spindle mount	D1-6 CAMLOCK
Spindle taper	MK7
Maximum tool size	25 x 25mm
Top slide travel	130mm
Cross slide travel	290mm
Longitudinal travel	750mm
Metric threads	(66) 0.5–28mm
Inch threads	(66) 1–56TPI
Module threads	(33) 0.5–3.5MP
DP threads	(33) 8–56DP
Longitudinal feeds	(66) 0.072–4.038mm/rev
Cross feeds	(66) 0.036–2.019mm/rev
Tailstock quill travel	120mm
Tailstock quill diameter	65mm
Tailstock quill taper	MK5
Main motor power	5.5 / 6.6kW / 400V
Rapid feed motor power	0.12kW
Coolant pump power	40W
Overall dimensions (L/W/H)	2250 x 1080 x 1650mm
Weight	1600kg ±2%

The CORMAK 500x1000/65 universal lathe is a reliable tool for professionals who demand precision, durability and high efficiency. Order now and enhance your production capabilities.

Manufacturer: Cormak
