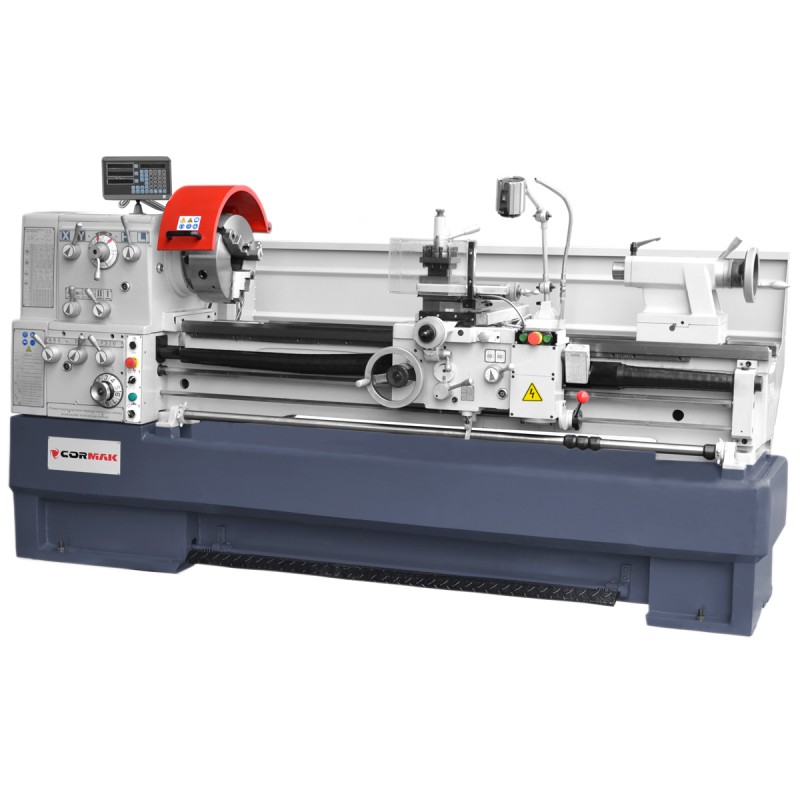

Conventional Universal Lathe Set CORMAK 460x2000 with Turning Tools and Live Centre

Conventional Universal Lathe CORMAK 460x2000 – efficiency and precision for industry

CORMAK 460x2000 is a precision universal lathe designed for metalworking in industrial environments. The machine offers an impressive turning length of up to 2000mm, a large spindle bore and extensive threading capabilities. With its solid design, 3-axis digital readout and equipment including a complete set of turning tools and a precision live centre, this model is a reliable solution for professional workshops, toolrooms and maintenance departments.

Main advantages of the machine

• Hardened and ground cast iron bed ensures vibration damping and long service life of the guideways.
• Stable cast iron base provides rigidity and precision even under intensive operation.
• 80mm spindle bore enables machining of shafts and tubes with large internal diameters.
• 2000mm turning length – ideal for machining long components.
• 3-axis digital readout – complete control over carriage positioning and dimensional repeatability.
• 3-jaw chuck 250mm included – quick clamping and secure holding of the workpiece.
• Reinforced spindle bearing system – smooth and quiet operation with high stability.
• Main motor 5.5kW – sufficient power for roughing and finishing operations.
• Rapid longitudinal and cross feed – increases machining efficiency and reduces cycle time.
• Removable bed bridge – allows machining of components up to 690mm in diameter.

Design and technology

The lathe is built on a hardened, massive 300mm-wide cast iron bed, providing high rigidity and accurate guidance. The main gearbox is equipped with hardened and ground gears, while spindle speed and feed adjustments are controlled from an ergonomic panel. The machine supports a wide range of metric, inch, module and D.P. threads – without the need to replace gears in the gearbox.

Precision and performance

With the integrated 3-axis digital position readout, the operator has full control over machining operations. The lathe enables precise right- and left-hand threading, and the built-in threading dial indicator allows quick repositioning when repeating cuts. The high-quality spindle and carriage design ensures consistent accuracy and stable operation even during long machining cycles.

Applications

The CORMAK 460x2000 model is suitable for a variety of technical environments:

• maintenance and repair departments,
• toolrooms and locksmith workshops,
• mechanical workshops,
• technical and vocational schools.

Technical parameters:

Standard equipment

• Set of 25x25mm turning tools (7 pcs) with carbide inserts
• Precision live centre MK4
• 3-jaw chuck 250mm
• 3-axis digital readout (optical scales)
• Fixed and travelling steadies
• Dead centre MK4
• Reduction sleeve MK7/MK4
• Change gears
• Cooling system
• Work light
• Oiler, service tools and keys
• Safety guards compliant with CE standards
• User manual
• CE Declaration of Conformity

Optional equipment

• 4-jaw chuck 250mm + drive plate D8
• Drill arbor MK4/B16
• Drill chuck B16 (3–16mm)
• HSS-Co5 cobalt drill set (1–13mm)
• Cutting fluid ES-12 – 1L

Looking for a conventional lathe with a large centre distance, solid base and complete equipment? Choose CORMAK 460x2000 for precision, quality and full CORMAK technical support. Contact our team for a customised offer tailored to your needs.
