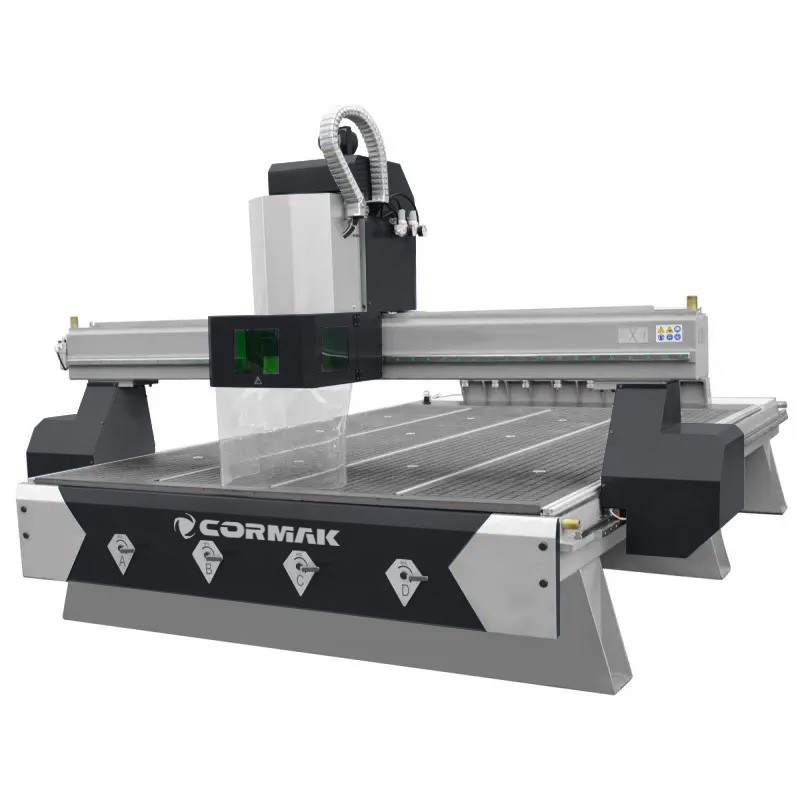

4-Axis CNC Router CORMAK C2040 ATC PREMIUM 2150x4300 with Hybrid Table

Reduced price

The machining centre with industrial control provides versatile machining capabilities including cutting, drilling, milling, and engraving. Easy access to the machine allows operation by a single operator. The offered CNC router is a precise machine based on components from leading global manufacturers. The CORMAK C2040 ATC CNC router is designed for processing and cutting wood, chipboard, MDF, OSB, plywood, and plastics such as PVC, plexiglass, and dibond. AC YASKAWA SERVO motors ensure appropriate acceleration and travel speeds on each axis.

Variant

CNC Milling Machine / CNC Router CORMAK C2030 ATC PREMIUM (2100x3200) with Hybrid Table

CNC Milling Machine CORMAK C2030 ATC 4-Axis PREMIUM 2100x3300 Hybrid Table

CNC Milling Machine / CNC Router CORMAK C2040 ATC PREMIUM (2100x4100) with Hybrid Table

CNC Milling Machine / CNC Router CORMAK C1325 ATC (1300x2500) with Automatic Tool Changer

CNC Milling Machine / CNC Router CORMAK C1530 ATC (1500x3000) with Automatic Tool Changer

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€43,634.25

Cena regularna: ~~€47,939.25~~

The lowest price of this product in the last 30 days before the discount was €43,634.25 gross

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
2 000,00 PLN

Machine description

1. Work table

The work table is made using hybrid technology,
It has grooves that ALSO allow manual clamping of material measuring 2100 x 4300mm,
Sectional table with four independent vacuum sections together with a 7.5kW pump!

2. Adjustment of the table vacuum sections

3. HQD spindle

High-class brushless spindle characterised by very high power of 9kW
Additionally equipped with an innovative AIR cooling system / not liquid!
High-quality machine bearings are used in the spindle structure, characterised by very quiet operation and ensuring increased durability.
The spindle speed range is from 4500 to 24000 rpm.
Option to add oil mist for an additional charge

4. 4th axis

versatile machining (cutting, drilling, milling, engraving)
free access to the machine enabling operation by one operator

5. Vacuum pump (option)

Vacuum pump - 7.5kW (as much as 440 mbar)
4 independent vacuum sections

6. Drive

SERVO motors used to drive high-power machine tools provide suitable acceleration and speeds in individual directions.
In the X and Y axes, high-quality rack strips praised by users are used, providing high durability and precision,
The Z axis is driven by a high-quality ball screw.
All axes move on rail guides.
The machine is equipped with a tool height sensor
Gantry drive on rack strips, rolling linear guides.
Linear bearing system: trapezoidal rails, Hiwin carriages

7. Structure

The moving gantry structure is made of cast iron, achieving exceptional rigidity and absorbing vibrations generated during machining very effectively.
The rigid table structure is made of high-quality materials. During the production process, it undergoes heat treatment.
Free access to the machine enabling operation by one operator

8. Tool magazine

Tool holder ISO30 ER32 collet
Tool magazine 8 positions,
Tool height measurement sensor,
Included holders: ISO30 and collets for clamping tools with the following dimensions:
1/2" - 6 pcs; 1/8" - 1 pc; 3-4mm - 1 pc; 5-6mm - 2 pcs; 7-8mm - 1 pc; 9-10mm - 1 pc
A compressor connection is required for automatic tool change

Software, INDUSTRIAL CONTROL:

The machine supports CAD/CAM software in the latest version.
OPTION latest software UCanCAM V13 (the software allows files to be imported from Corel, Autocad, etc. File import/export, editor, text input and many other functions)
The software enables quick and easy design of elements, which the program then converts into so-called G-code. It is also possible to import ready-made files from other programs.
The machine is equipped with a function for remembering the last G-code path (in the event of a failure or power interruption, it starts work from the last point without losing time or material.

YASKAWA AC SERVO motors used to drive high-power machine tools provide suitable acceleration and speeds in individual directions.

Milling machine with new software.

The machine is controlled using a JAPANESE (not Chinese) industrial controller with pendant and LCD display

CNC Milling Machine CORMAK C2040 ATC 4 Axis PREMIUM (2150x4300) + Hybrid Table

We offer machine tools with genuine EU CE certification - certified by the best in the EU.

By choosing the CORMAK brand, you choose machining precision and long service life, as well as peace of mind and safety for yourself or your employees.

We do not look for external companies; we have our own service department (warranty/post-warranty services/training/commissioning/machine presentations) at our CORMAK headquarters

Technical parameters

Working Area	2150x4300mm
Z Axis	350mm
Structure	Arm - cast iron / table - welded steel
Drives	hybrid servo motors
Table	hybrid
Spindle power	9kW
Spindle	air-cooled HQD (oil mist option)
Spindle speed	from 6000 to 24000 rpm
Power supply	400V, compressed air min. 8 bar
Re-positioning accuracy	0.01mm
Linear bearing system	trapezoidal rails, Hiwin carriages
Material clamping	vacuum, hybrid
Vacuum pump	(option) 7.5kW, 4 independent vacuum sections
Software	UCanCAM V13 (option)
Dimensions	5070 x 2870 x 1950mm
Weight	2450kg

Equipment

Air-cooled spindle, Premium version
AC Yaskawa hybrid servo drives
Raised gantry in the Z axis to 350mm
Vacuum table - 4 independent vacuum sections + T-slot table for manual material clamping (holders included)
Tool measurement sensor included
Tools, collet set, levelling feet and other accessories
SYNTEC control
Tool set: cutters, drills, holders

Unloading and positioning of the machine on the customer’s side.

Power plug on the customer’s side due to different 16A / 32A sockets

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
