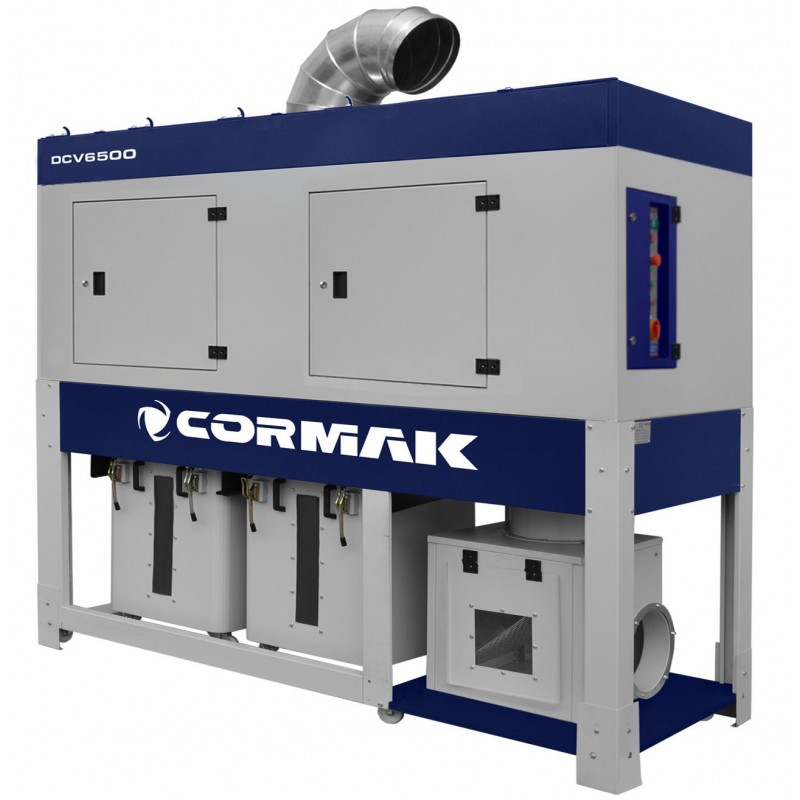

DCV6500TC VIBER – professional industrial dust extractor with automatic filter cleaning and heat recovery
DCV6500TC VIBER is a modern industrial dust extractor designed for continuous, heavy-duty operation in woodworking and production facilities. It combines high suction performance, quiet operation, and energy efficiency. The unit includes the VIBER system (automatic filter cleaning), TC housing (noise insulation), REHEAT (heat recovery), and DAMAGE PROTECT (mechanical protection of the impeller).
Main advantages
- Automatic VIBER system – effective filter cleaning without downtime.
- REHEAT – heat recovery from exhaust air, improving thermal comfort.
- DAMAGE PROTECT – mechanical protection of key components.
- Full TC enclosure – significant noise and vibration reduction during operation.
- High extraction capacity – 6,500 m³/h – efficient multi-station dust removal.
- Large waste container capacity – 500 L total, reducing emptying frequency.
Design and technology
The DCV6500TC VIBER is engineered for maximum reliability. Its robust steel frame prevents vibration transmission, while the dynamically balanced metal impeller ensures quiet, stable operation. The specially designed fan blade geometry improves suction efficiency while reducing energy consumption. The TC sound-insulated enclosure significantly lowers noise levels across the workshop.
Precision and performance
The system uses 32 polyester filters to capture particles as small as 5 microns. Optional HEPA filters can be added for even finer filtration. Quick-access dust bins and an intuitive control cabinet interface improve ergonomics and operator efficiency.
Applications
DCV6500TC VIBER is an industrial central dust extraction system ideal for use with sanders, panel saws, edgebanders, and milling machines. It is designed for continuous operation in production environments where air quality and extraction reliability are critical.
Standard equipment
- VIBER system – automatic filter cleaning
- TC noise-insulated housing
- REHEAT – heat recovery system
- DAMAGE PROTECT – mechanical impeller protection
- Control cabinet with main power switch
- Two mobile waste containers with inspection windows (2 × 250 L)
Optional equipment*
- HEPA filters
- Ceiling-mounted ducting system
- Additional suction pipes and connectors
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
Technical data
| Technical data |
|---|
| Motor power (S1) |
5.5 kW / 400 V, 50 Hz |
| Motor speed |
2,900 rpm |
| Extraction capacity |
6,500 m3/h |
| Vacuum pressure |
3,000 Pa |
| Noise level |
80 dB |
| Suction inlet diameter |
280 mm |
| Air velocity |
28–32 m/s |
| Filter surface area |
16 m2 |
| Filter material |
Polyester, 5 microns |
| Number of filters |
32 |
| Container capacity |
2 × 250 L |
| Dimensions (L × W × H) |
2,440 × 930 × 2,270 mm |
| Weight |
440 kg |
Choose the DCV6500TC VIBER industrial dust extractor and ensure your production area benefits from reliable, efficient, and energy-saving air filtration. Contact us to select the best configuration for your facility!
