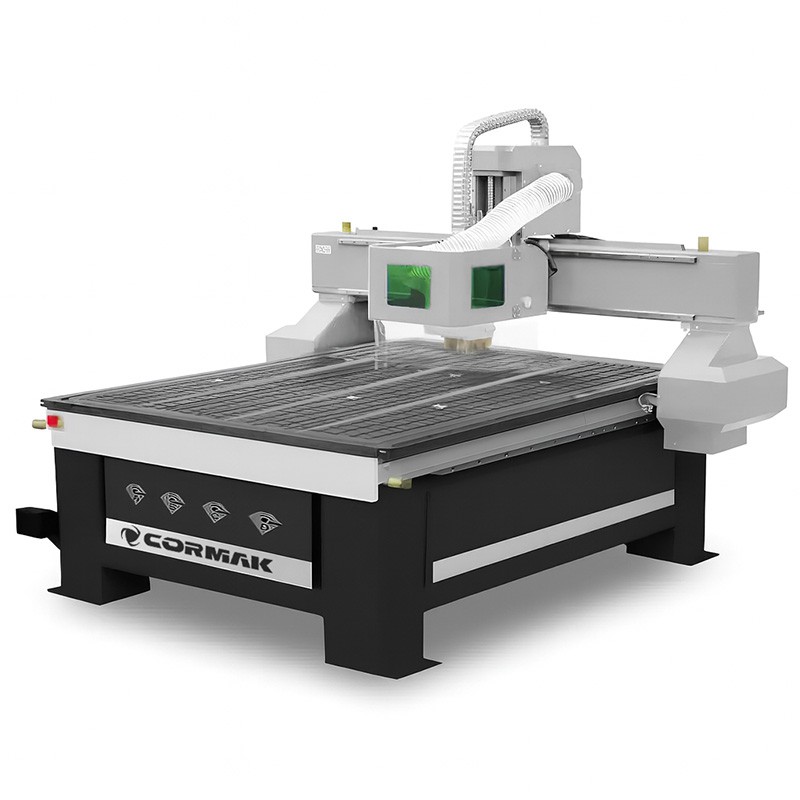

Construction
- Rigid welded steel frame,
- The gantry arms are made of thick, powder-coated steel sheet, ensuring higher stiffness and excellent machining accuracy.
Worktable
- T-slot worktable,
- Equipped with T-slots for manual material clamping, working area 1200 × 1200mm,
Drive
- High-power drive motors provide suitable acceleration and speed along all axes.
- High-quality rack and pinion drives on X and Y axes ensure durability and precision,
- Z axis driven by a high-quality ball screw,
- All axes move on linear guideways,
- Router equipped with a tool height sensor.
Spindle
- High-quality machine bearings ensure quiet operation and extended spindle lifespan.
- Tool height measurement sensor – included,
- Spindle speed range from 4,500 to 18,000 rpm,
- Tool clamping with ER32 collets
Optional Software
- OPTIONAL Latest software UCanCAM V13 in English version (software allows importing files from Corel, AutoCAD etc., import/export, text editing and many other functions)
- The software allows quick and easy design of parts, which are then converted into G-code. It also supports importing ready-made files from other programs.
- The router features a function that memorises the last G-code path (in the event of power loss, it resumes from the last point without losing time or material).
DSP Control
- Digital Signal Processing – digital signal processing,
- The router’s DSP controller has its own processor and memory, ensuring reliable operation and easy handling,
- The controller provides smooth operation and high machining accuracy,
- After a power interruption, reinitialisation of the programme is not required,
- The built-in controller memory allows the router to work without reloading the programme each time.
Machines supplied with genuine CE certification – verified by leading EU institutions.
By choosing the CORMAK brand, you choose machining precision, long service life, peace of mind and operator safety.
Technical Specifications
| Spindle |
3.7kW / 18,000 rpm inverter, air-cooled |
| Working area |
1200×1200×210 mm |
| Control |
DSP |
| Software resolution |
0.001 mm |
| Power supply |
400V |
| Weight |
450 kg |
| Machine dimensions |
2000×1800×1640 mm |
| Table height |
715 mm |
| Guideways |
Linear |
| Drive transmission |
Rack and pinion (Z axis – ball screw) |
| Software |
Software UCanCAM V13 in English version (option) |
NOTE!
The router is equipped with a function that memorises the last G-code path. In case of failure or power loss, it resumes from the last point without losing time or material.
Equipment
- Levelling feet,
- Screws,
- Wrenches,
- Training cutter set,
- ER32 collets – 1/8 inch, 1/2 inch, and 5–6 mm,
Unloading and positioning of the router are the client’s responsibility.
Power plug provided by the client due to different 16A / 32A sockets.
