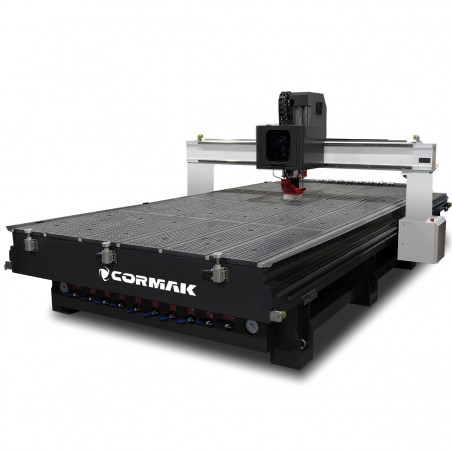

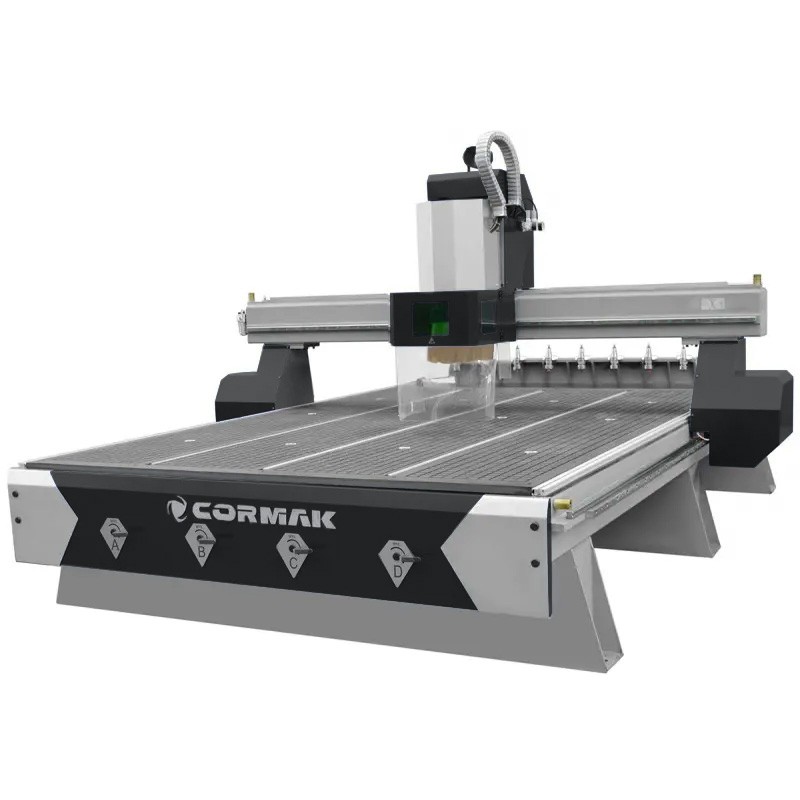

1. Work table
- Sectional table with four independent vacuum sections made of rigid and durable HPL boards.
- Each section features holes connected through a vacuum pipe system to the pump.
- Main holes are equipped with plugs, allowing clamping of different material formats.
- The table surface includes channels ensuring even vacuum distribution across the entire working area.
- Includes T-slots for manual material clamping.
2. HQD Spindle
- Brushless spindle from a leading manufacturer with 9kW power, inverter-driven with overload protection.
- Equipped with an innovative air-cooling system.
- Supports automatic tool change, eliminating downtime from manual tool replacement.
- Automation enables seamless tool use without recalibration or process interruption.
- Optional oil mist system available at additional cost.
3. Drive system
- Energy-efficient YASKAWA AC servo drives controlled by a digital industrial controller for precise high-speed machining.
- Brushless AC servo motors on X and Y axes transmit power through premium planetary gearboxes.
- Z-axis driven by a reinforced ball screw ensuring high positioning accuracy.
- X and Y movement achieved via HIWIN linear guides and helical racks made of hardened and tempered steel, ensuring durability and long life.
- All HIWIN trapezoidal guides undergo compliance testing at every assembly stage.
- Central, maintenance-free lubrication system for critical moving components – saves time and protects key parts.
4. Structure
- The sliding gantry is made of cast iron, providing exceptional rigidity and vibration absorption during machining.
- The rigid, ribbed steel table construction eliminates vibration during the production process.
5. Tool magazine and tool measurement sensor
- Equipped with an 8-position linear tool magazine, ISO30 tool holders, and ER32 collets.
- Includes holders: ISO30 and collets in sizes 1/2" (6 pcs), 1/8" (2 pcs), 3–4mm (2 pcs), 5–6mm (4 pcs), 7–8mm (2 pcs), 9–10mm (2 pcs).
- Each machine includes a precise Z-axis tool height sensor that eliminates recalibration after each tool change.
6. Control and software
- Machine control is managed by an industrial SYNTEC controller, identical to those used in large machining centres, complete with manipulator and LCD display.
- Optional: latest UCanCAM V13 software with multilingual interface, supporting file import from Corel, AutoCAD, and others (G-code generation, text editor, and more).
- Software allows easy design and automatic conversion to G-code, with import of ready-made CAD/CAM files.
- The machine includes a G-code memory function – in the event of power failure, operation resumes from the last position without time or material loss.
7. Vacuum pump (optional) and extraction shoe
- The vacuum pump greatly increases workpiece holding force, preventing displacement during machining.
- Optional vacuum pump – 7.5kW (max –440 mbar).
- Four independent vacuum sections.
- Pneumatic extraction shoe near the spindle allows chip collection connection, ensuring clean, safe, and precise operation.
All CORMAK machines are CE certified by leading European institutions.
Choosing CORMAK means precision, durability, and operator safety.
We offer full warranty and post-warranty service. Training and commissioning are available upon request — please contact our consultant.
Technical specifications
| Working area |
2100x3200 mm |
| Z-axis travel |
350 mm |
| Construction |
Arm – cast iron / Table – welded steel |
| Drives |
Hybrid AC Yaskawa servo motors |
| Table |
Hybrid |
| Spindle power |
9 kW |
| Spindle |
HQD air-cooled (optional oil mist) |
| Spindle speed |
6,000–24,000 rpm |
| Power supply |
400V, compressed air min. 8 bar |
| Repositioning accuracy |
0.01 mm |
| Linear bearings |
Trapezoidal guides, Hiwin carriages |
| Material clamping |
Vacuum, hybrid |
| Pump |
Vacuum 7.5kW, 4 independent sections |
| Software |
UCanCAM V13 (optional) |
| Dimensions |
4070×2870×1900 mm |
| Weight |
2050 kg |
The machine includes a memory function for the last G-code path. In case of power failure, it resumes from the last point without time or material loss.
Equipment
- Premium air-cooled spindle
- Hybrid AC Yaskawa servo drives
- Raised Z-axis gantry (350mm)
- Vacuum table – 4 independent sections + T-slot table for manual clamping
- Tool height sensor included
- Tools, collet set, levelling feet, and accessories
*Unloading and installation by the customer.
*Power plug provided by the customer (16A / 32A socket type may vary).
On-site commissioning of CNC routers available upon request, with individual pricing.
