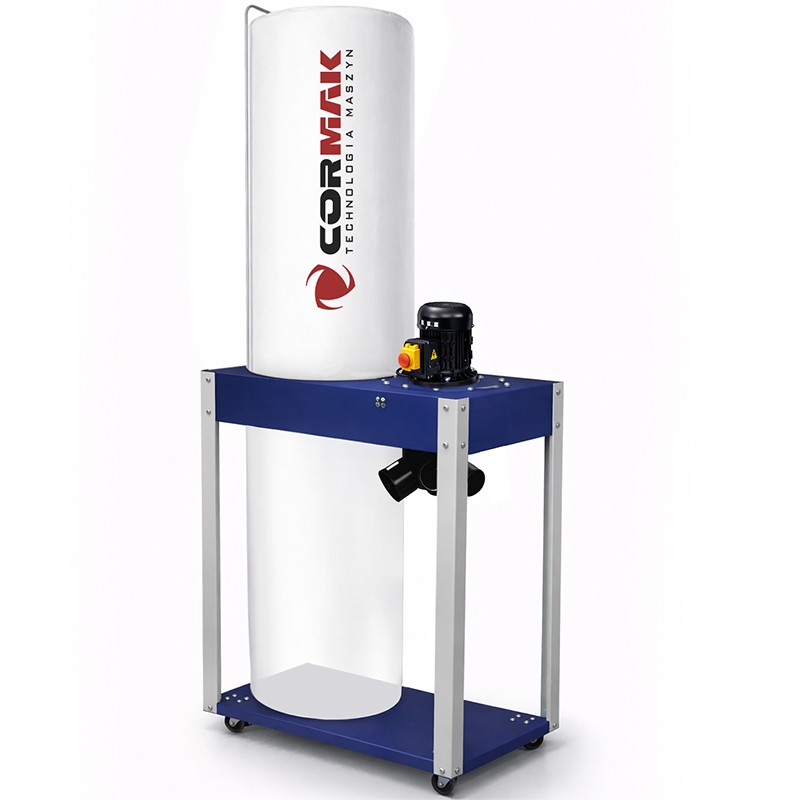

Wood Dust and Chip Extractor CORMAK FM340 230V – High-Performance Mobile Extractor for Workshops

CORMAK FM340 230V is a modern wood dust and chip extractor designed for efficient and quiet dust removal in woodworking and semi-industrial environments. Equipped with a 1.5 kW suction unit and a large, dynamically balanced metal impeller, it achieves an impressive airflow rate of 3200 m³/h using a standard 230 V supply. It is the ideal choice for users seeking a compact, mobile and reliable chip and dust extractor.

Main advantages of the machine

• Powerful suction unit – 1.5 kW / 230 V – high efficiency without the need for three-phase power.
• Airflow up to 3200 m³/h – effective extraction from several woodworking machines at once.
• 300 mm metal impeller – dynamically balanced for smooth and quiet operation.
• Steel housing and impeller – durable, damage-resistant and fully sealed construction.
• 180° rotatable suction head – flexible hose positioning and easy connection setup.
• Mobile design with castors – convenient movement within the workshop.
• Quick-release bag system – tool-free service and fast bag replacement.

Design and technology

The CORMAK FM340 230V extractor features a large metal dust fan mounted in a robust steel casing, ensuring rigidity and durability under heavy use. The 180° rotatable inlet head makes hose configuration simple and versatile. The set includes a fabric filter bag and a collection bag (190 L total capacity), allowing long operation without frequent emptying.

Precision and performance

With a motor speed of 2850 rpm and a 300 mm impeller, the CORMAK FM340 dust extractor delivers consistent airflow and effective separation of solid particles. Ideal for connecting to table saws, planers or spindle moulders, it features a suction port of Ø150 mm or 3 × Ø100 mm, allowing flexible setup for different woodworking machines.

Applications

• Woodworking workshops – for saws, planers, routers and sanding stations.
• Production facilities – as a central wood dust extractor for multiple machines.
• Educational workshops – compact and mobile solution for technical training use.
• Professional and hobby workshops – efficient dust collection with 230 V power supply.

Standard equipment

• 1 × fabric filter bag
• 1 × plastic collection bag
• Transport wheels
• Suction port Ø150 mm / 3 × Ø100 mm

Optional equipment*

• Suction hoses Ø100 mm (various lengths)
• Galvanised hose clamps
• Additional fabric or plastic bags

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical data

Summary

CORMAK FM340 230V is a powerful, durable and mobile wood dust extractor operating on single-phase 230 V power, perfect for workshops without a 400 V installation. With its high efficiency, quiet performance and robust construction, it ensures a cleaner, safer and more productive working environment.

Order your CORMAK FM340 230V dust extractor today and improve the efficiency and comfort of your workshop!
