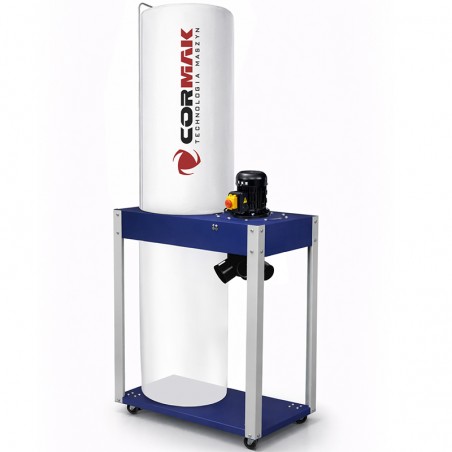

Wood Dust and Chip Extractor CORMAK FM340 400V – Professional High-Power Extraction System

CORMAK FM340 400V is a powerful and efficient wood dust extractor designed for continuous operation in industrial and woodworking environments. With a 1.5 kW three-phase motor and an impressive airflow capacity of 3200 m³/h, this model provides effective removal of wood chips, sawdust and fine dust from multiple workstations simultaneously. A robust steel structure, rotatable suction head and mobile base ensure long-lasting performance and easy handling.

Main advantages of the machine

• Three-phase motor 1.5 kW / 400 V – designed for continuous heavy-duty operation.
• Airflow up to 3200 m³/h – efficient extraction from several machines at once.
• 300 mm metal impeller – dynamically balanced for quiet, vibration-free performance.
• 180° rotatable suction head – flexible setup for optimal workshop configuration.
• Suction port: 1 × Ø150 mm or 3 × Ø100 mm – supports multi-machine connection.
• Quick-release bag system – tool-free replacement of filter and collection bags.
• Durable steel housing and mobile base – resistant to mechanical wear, easy to move.

Design and technology

The FM340 400V is built with a reinforced steel frame and a durable metal fan with a dynamically balanced impeller. The sealed housing and air channels prevent suction loss, while the 180° rotatable inlet head allows ergonomic hose positioning. The large 190 L collection bag ensures long operation between emptying cycles.

Performance and precision

With a 2850 rpm motor and 300 mm impeller, the CORMAK FM340 maintains steady negative pressure for efficient chip and dust collection. It performs exceptionally with saws, planers, routers and other woodworking machines, keeping the workspace clean and safe. The system removes both coarse chips and fine dust with consistent suction power.

Applications

• Woodworking and industrial plants – central dust extraction system for multiple machines.
• Production lines – integrated extraction for automated processing systems.
• Technical schools and training centres – robust design for intensive educational use.
• Professional workshops – reliable dust and chip collector for wood, MDF and composites.

Standard equipment

• Fabric filter bag
• Plastic collection bag
• Suction manifold Ø150 mm / 3 × Ø100 mm
• Mobile metal base with 4 wheels

Optional equipment*

• 100 mm suction hoses (various lengths)
• Galvanised hose clamps
• Replacement plastic or fabric bags

*The price applies to the machine only, excluding optional accessories, installation, transport and training. Please contact our consultant for more details.

Technical data

Summary

CORMAK FM340 400V is a robust and high-capacity dust extractor designed for demanding professional environments. Its three-phase power supply, strong suction and modular configuration make it a reliable solution for clean, safe and efficient workplaces.

Order the CORMAK FM340 400V Dust and Chip Extractor today and ensure optimal dust control in your workshop!
