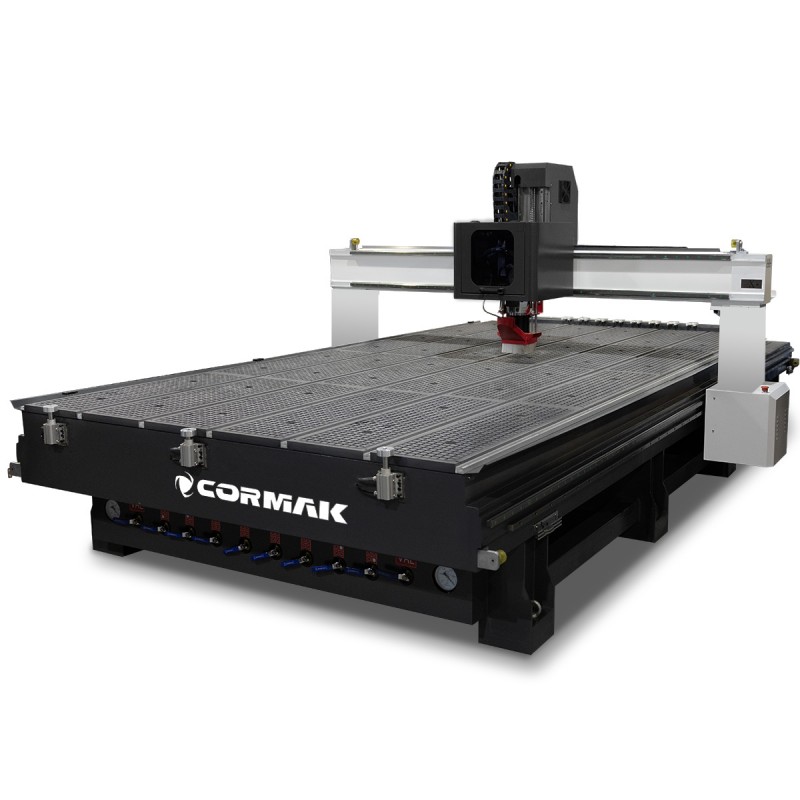

CNC Milling Machine / CNC Router CORMAK B2141 ATC (2100x4200) with Automatic Tool Changer

1. Work table

• Sectional table with four independent vacuum sections made of rigid and durable HPL boards.
• Each section includes openings connected via tubing to the vacuum pump system.
• Main openings in the vacuum table are fitted with caps, enabling the clamping of various material sizes.
• The work surface features a network of channels ensuring even vacuum distribution across the entire table.
• Includes grooves allowing manual clamping of materials.

2. HQD Spindle

• Brushless spindle from a renowned manufacturer, 9kW power, powered by an inverter with overload protection.
• Milling spindle equipped with an innovative air-cooling system.
• Designed for automatic tool change, reducing machining downtime caused by manual tool replacement.
• Automation enables the use of all tools without recalibration or production interruptions.

3. Drive system

• High-efficiency Leadshine 1500W servo drives with high holding torque (double drive on Y axis).
• Controlled by the NK-105 G3 digital controller, ensuring excellent machining quality at high operating speeds.
• Brushless servo motors driving X and Y axes transmit motion through high-quality planetary gearboxes.
• Z-axis, where precision is essential, is driven by a reinforced ball screw.
• Movement along X and Y axes is guided by HIWIN linear rails and helical racks made from hardened, tempered steel, ensuring long, trouble-free operation.
• All axes use professional HIWIN trapezoidal linear rails, tested for compliance at each assembly stage.
• Central, maintenance-free lubrication system for carriages and ball screws, saving time and protecting key moving components.

4. Structure

• The sliding gantry is made of cast iron, ensuring exceptional rigidity and vibration absorption during machining.
• The table’s ribbed steel construction prevents vibration during the production process.

5. 8-Tool Magazine + Tool Measurement Sensor

• Equipped with an 8-position linear tool magazine, ISO30 holders, and ER32 collets.
• Includes tool holders: ISO30 and collets sized 1/2" (6 pcs), 1/8" (2 pcs), 3–4mm (2 pcs), 5–6mm (4 pcs), 7–8mm (2 pcs), 9–10mm (2 pcs).
• Each CNC machine includes a precise Z-axis tool height sensor, eliminating manual recalibration after each tool change.
