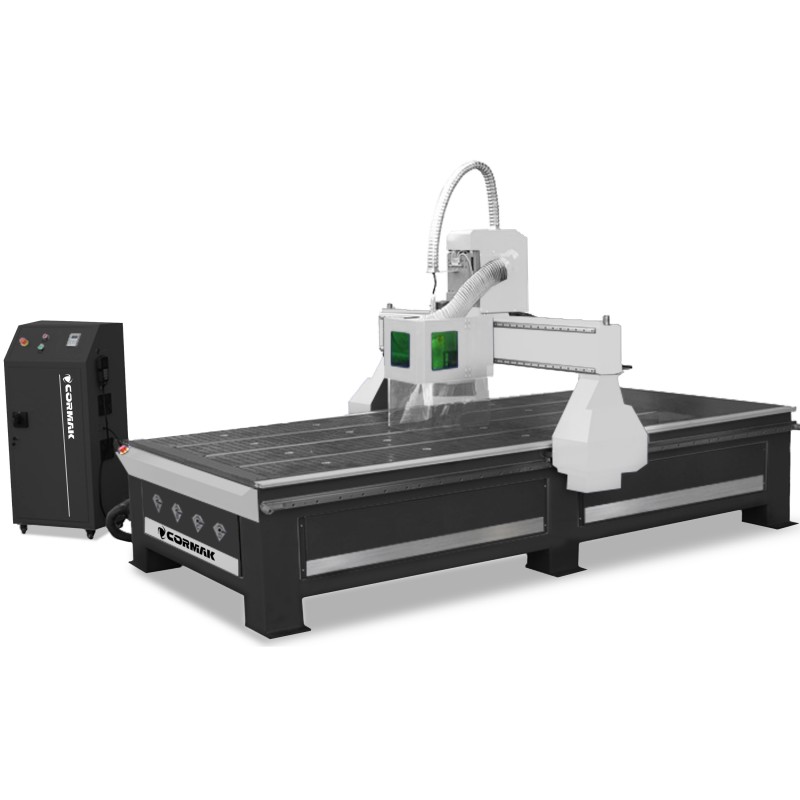

CNC Milling Machine / CNC Router CORMAK C1325 PREMIUM (1300x2500) with Hybrid Table

Construction

• Rigid welded steel structure,
• The gantry arms are made of hardened, powder-coated thick sheet metal, providing increased stiffness and ensuring high machining quality.

Worktable

• Hybrid worktable construction,
• Equipped with T-slots for manual clamping of materials measuring 1300 x 2500 mm,
• Sectional vacuum table with four independent vacuum zones.

Drive

• SERVO motors provide high acceleration and speed in all axes.
• X and Y axes use high-quality rack and pinion drives for long life and precision,
• Z axis driven by a high-quality ball screw.
• All axes move on linear guideways.
• The machine is equipped with a tool height sensor.
• Linear bearings: trapezoidal rails, Hiwin carriages.

Spindle

• High-quality brushless spindle designed for durability.
• Equipped with an innovative AIR cooling system (not liquid!)
• The spindle design uses precision machine bearings ensuring quiet operation and long service life.
• Tool height measuring sensor – included.
• Spindle speed range: 4,500–18,000 rpm.
• Tool clamping with ER32 collets

Software

• OPTIONALLY latest software UCanCAM V13 (software enables importing files from Corel, AutoCAD, etc., with import/export, text creation, and many other functions)
• Enables fast and easy design of parts, converting them into G-code. Also allows importing ready-made files from other programs.
• The machine features G-code path memory (in the event of power failure, it resumes from the last point without time or material loss.)

DSP Control

• Digital Signal Processing – digital signal processing technology
• The DSP controller has its own processor and memory, ensuring reliable operation and ease of control.
• Provides smooth machine operation and high machining accuracy.
• After power loss, restarting the program is unnecessary.
• Built-in memory allows machine operation without reloading the program each time.




We offer machines with genuine CE certification – certified by leading EU institutions.

By choosing the CORMAK brand, you choose machining precision, long service life and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical parameters

Equipment

• Air-cooled spindle, PREMIUM version
• Hybrid servo drives
• Raised Z-axis gantry to 350 mm
• Vacuum table – 4 independent vacuum zones + T-slot table for manual fixing (clamps included)
• Tool height sensor included
• Tool and collet set
• Levelling feet and accessories
• DSP control – digital signal processing
• Starter cutter set

**Power plug on the customer’s side due to various 16A / 32A sockets

On-site commissioning of CNC routers available upon request, with individual pricing.
