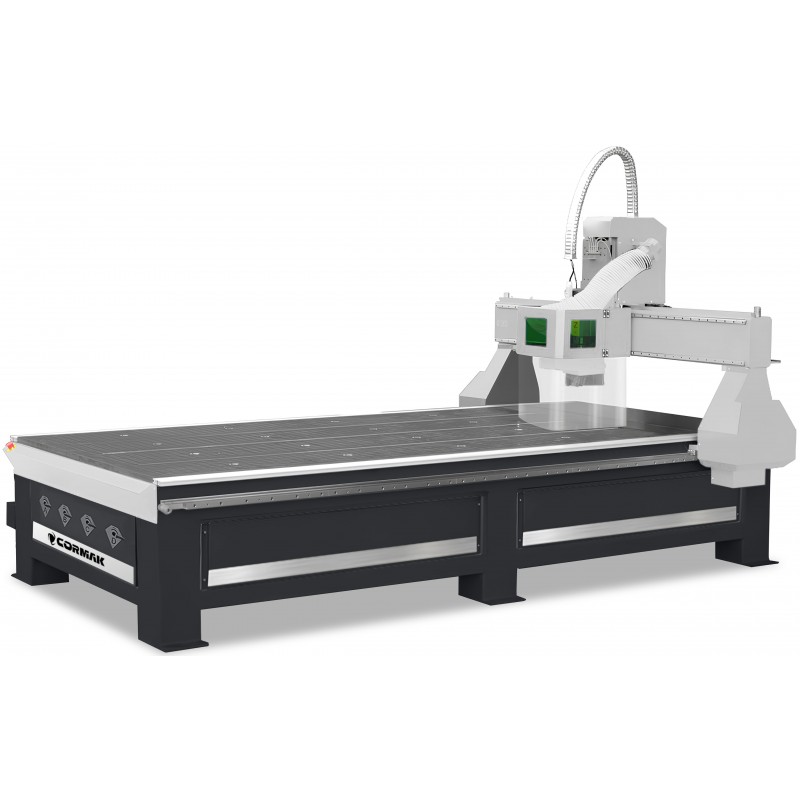

Construction
- Rigid welded steel frame ensuring durability and stability,
- Gantry arms made of thick, hardened, powder-coated steel for improved stiffness and precision,
- Hybrid worktable design,
- Equipped with T-slots for manual material clamping — working area 2100 x 4000 mm.
Drive System
- Servo motors provide dynamic motion and fast acceleration, ensuring accuracy across all axes,
- X and Y axes feature high-quality rack-and-pinion drives for precise motion,
- Z axis driven by a precision ball screw,
- All axes move on linear guideways,
- Equipped with a tool height sensor,
- Linear bearings: trapezoidal rails with Hiwin carriages.
Spindle
- High-quality brushless spindle designed for long service life,
- Equipped with an innovative air-cooling system — no liquid cooling required,
- Utilises precision machine bearings for quiet and reliable operation,
- Tool height measurement sensor included,
- Spindle speed range: 4,500–18,000 rpm,
- Tool clamping via ER32 collets.
Software
- OPTIONALLY latest software UCanCAM V13 (supports import/export from Corel, AutoCAD, etc.; includes text editor and other advanced features),
- Enables quick and intuitive element design and automatic G-code conversion,
- Includes G-code memory — resumes operation after power failure from the last cutting point.
DSP Control
- Digital Signal Processing – digital control for smooth and accurate operation,
- DSP controller has its own processor and memory ensuring stable, independent operation,
- Guarantees precise machining and reliability,
- No need to reload programs after power interruption,
- Internal memory allows operation without re-uploading programs.
We provide genuine CE-certified machines — approved by leading EU institutions.
By choosing CORMAK, you ensure precision, durability, and operator safety.
We offer warranty and post-warranty service. Machine training and/or commissioning available upon request — please contact our consultant.
The price quoted refers to the machine only and excludes additional equipment, installation, transport, and training.
Technical Parameters
| Spindle |
5.5 kW / 18,000 rpm, inverter-driven, air-cooled |
| Working area |
2100 x 4000 mm |
| Maximum spindle height |
350 mm |
| Control system |
DSP |
| Program resolution |
0.001 mm |
| Software |
UCanCAM V13 (optional) |
| Power supply |
400 V |
| Weight |
1580 kg |
| Machine dimensions |
2270 x 4570 x 2200 mm |
| Table height |
715 mm |
| Guideways |
Linear |
| Vacuum pump |
7.5 kW or 5.5 kW (optional) |
| Drive transmission |
Rack and pinion (Z-axis – ball screw) |
| Axis drives |
Hybrid servo drives |
Equipment
- Air-cooled spindle, premium version
- Hybrid servo drives
- Vacuum table – 4 independent zones + T-slot table for manual material clamping (clamps included)
- Tool height sensor included
- Tool set, collets, levelling feet, and other accessories
- DSP control system – digital signal processing
- Starter tool kit
Unloading and machine placement are the customer’s responsibility.
Power plug supplied by the customer due to different 16A / 32A socket standards.
On-site commissioning of CNC routers available upon request, with individual pricing.
