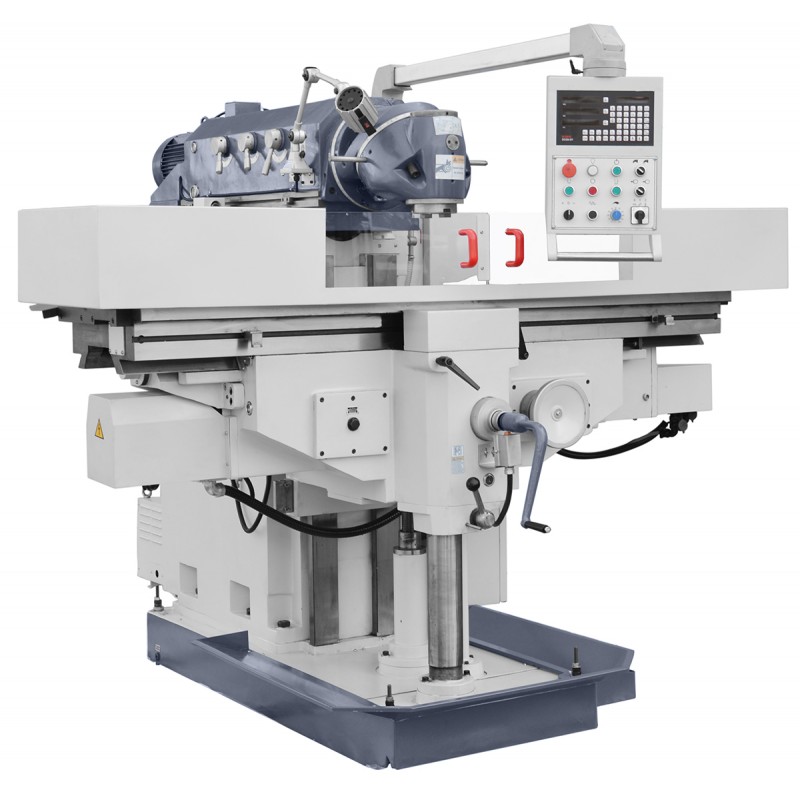

Conventional Universal Knee-Type Milling Machine CORMAK FU2000
Power and Durability Combined: The high-quality CORMAK FU2000 Conventional Universal Knee-Type Milling Machine guarantees both strength and endurance. Designed for heavy-duty use, it allows machining of workpieces up to 1800 kg. Equipped with servo drives and ball screws on all axes, it ensures outstanding precision and efficiency. Additional features such as a universal swivelling head, central lubrication system and LED lighting make operation simple, safe and comfortable.
Variant
Conventional Universal Knee-Type Milling Machine CORMAK FU1600
Conventional Universal Knee-Type Milling Machine CORMAK FU1700
Conventional Universal Knee-Type Milling Machine CORMAK FU1800
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€64,225.00
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine Characteristics
- Side-adjustable control panel with integrated position display ensures convenient and intuitive operation.
- Powerful 7.5 kW main drive provides high torque, enabling efficient machining of even the hardest materials.
- Coolant system and chip tray included as standard, increasing productivity and operational safety.
- Ball-screw-driven table ensures smooth and precise material feed, resulting in high machining accuracy.
Technical Data
|
Table dimensions |
500 × 2000 mm |
|
Table load capacity |
1800 kg |
|
X-axis travel |
1400 mm |
|
Y-axis travel |
700 mm |
|
Z-axis travel |
500 mm |
|
Spindle speed range |
(27) 30 – 2050 rpm |
|
Spindle taper |
ISO50 |
|
Distance from spindle nose to table surface |
50 – 550 mm |
|
Swivelling head |
360° |
| Rapid feed X-axis |
2540 mm/min |
|
Rapid feed Y-axis |
2540 mm/min |
|
Rapid feed Z-axis |
1700 mm/min |
|
Feed rate X-axis |
10 – 1000 mm/min |
|
Feed rate Y-axis |
10 – 1000 mm/min |
|
Feed rate Z-axis |
5 – 500 mm/min |
|
Main drive motor power |
7.5 kW |
|
Overall dimensions |
2986 × 2260 × 2180 mm |
|
Weight |
6000 kg |
Equipment Depending on Version
- 3-axis digital readout (DRO)
- Universal swivelling head
- Milling chuck with collets (Ø 5, 6, 8, 10, 12, 14, 16 mm)
- Central lubrication system
- Cooling system
- LED lamp
- Tool set
- User manual
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like

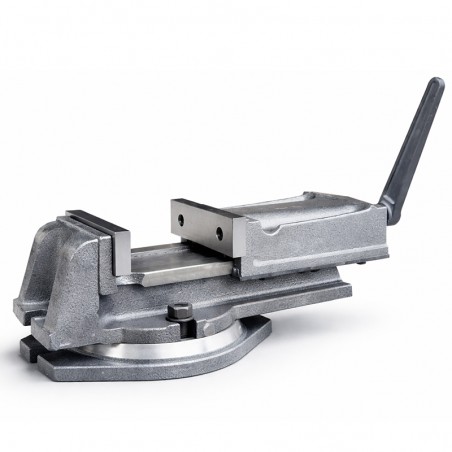

100 mm Inclined Swivel Machine Vice
