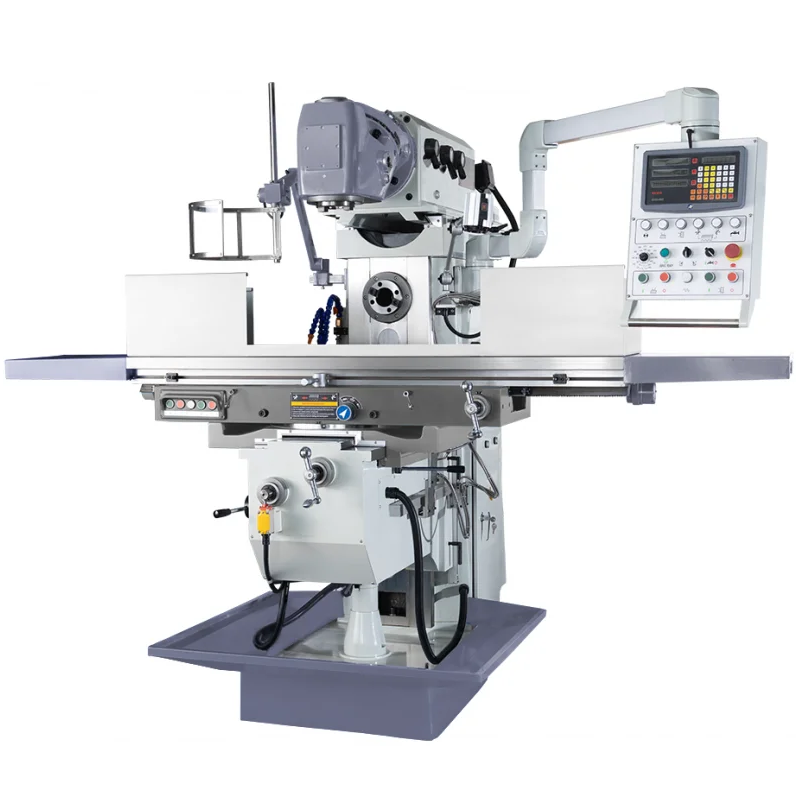

Conventional Universal Knee-Type Milling Machine CORMAK FU1600
Innovative Solutions for Efficient Machining: The CORMAK FU1600 Conventional Universal Knee-Type Milling Machine is a true piece of engineering excellence, designed for efficient machining of heavy workpieces. Its large table enables precise execution of even the most complex projects. Servo drives and ball screws on each axis guarantee not only high power but also perfect control. In addition, the universal swivelling head, central lubrication and modern LED lighting make this milling machine the number one choice for professionals.
Variant
Conventional Universal Knee-Type Milling Machine CORMAK FU2000
Conventional Universal Knee-Type Milling Machine CORMAK FU1700
Conventional Universal Knee-Type Milling Machine CORMAK FU1800
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€26,721.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine Characteristics
- Quiet-running vertical spindle gearbox with hardened and ground gears ensures precise machining of materials.
- Universal milling head tiltable in two planes allows easy change of operation from horizontal to vertical milling.
- Possibility to set almost any head angle thanks to the combination of both tilt planes, increasing machining flexibility.
Technical Data
|
Table dimensions |
1600 × 500 mm |
|
Table load capacity |
1800 kg |
|
X-axis travel |
1200 mm |
|
Y-axis travel |
700 mm |
|
Z-axis travel |
500 mm |
|
Spindle speed range |
(27) 30 – 2050 rpm |
|
Spindle taper |
ISO 50 |
|
Distance from spindle nose to table surface |
50 – 550 mm |
|
Swivelling head |
360° |
| Rapid feed X-axis |
2540 mm/min |
|
Rapid feed Y-axis |
2540 mm/min |
|
Rapid feed Z-axis |
1700 mm/min |
|
Feed rate X-axis |
10 – 1000 mm/min |
|
Feed rate Y-axis |
10 – 1000 mm/min |
|
Feed rate Z-axis |
5 – 500 mm/min |
|
Main drive power |
7.5 kW |
|
Overall dimensions |
2475 × 2260 × 2180 mm |
|
Weight |
5000 kg |
Equipment Depending on Version
- 3-axis digital readout
- Universal swivelling head
- Milling chuck with collets (Ø 5, 6, 8, 10, 12, 14, 16 mm)
- Central lubrication system
- Cooling system
- LED lamp
- Tool set
- User manual
Manufacturer: Cormak
