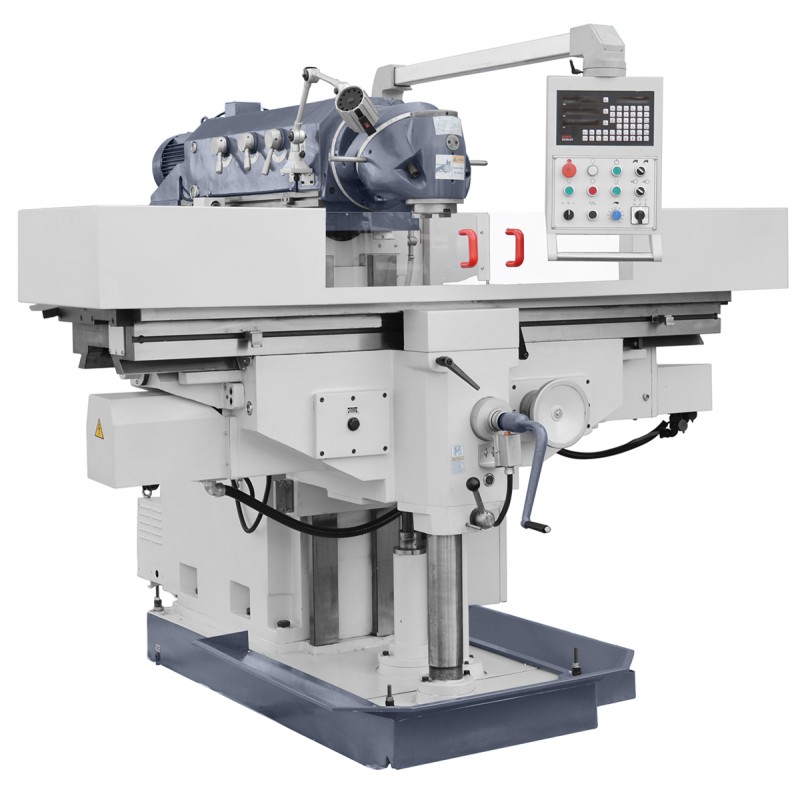

Conventional Universal Knee-Type Milling Machine CORMAK FU1235
Precision and Convenience in One Solution: The CORMAK FU1235 Conventional Universal Milling Machine represents precision and reliability. Designed with an exceptionally durable cast-iron structure, it enables uncompromising machining of workpieces weighing up to 1,800 kg. Equipped with advanced servo drives and ball screws on all axes, it ensures outstanding accuracy in every operation. A universal swivelling head, central lubrication system and modern LED lighting make work not only precise but also comfortable.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€56,887.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine Characteristics
- Massive cast-iron machine bed, supported on two columns, ensures high stability and machining precision.
- Precisely ground, surface-hardened and carburised guideways guarantee long-term accuracy and smooth movement.
- Large 1235 × 460 mm working area and table load capacity up to 600 kg allow machining of various materials.
Technical Data
|
Table dimensions |
1235 × 460 mm |
|
Table load capacity |
250 kg |
|
X-axis travel |
900 mm |
|
Y-axis travel |
650 mm |
|
Z-axis travel |
450 mm |
|
Spindle speed range |
(27) 30 – 2050 rpm |
|
Spindle taper |
ISO 50 |
|
Distance from spindle nose to table surface |
58 – 508 mm |
|
Swivelling head |
360° |
| Rapid feed X-axis |
2200 mm/min |
|
Rapid feed Y-axis |
2200 mm/min |
|
Rapid feed Z-axis |
1100 mm/min |
|
Feed rate X-axis |
10 – 1000 mm/min |
|
Feed rate Y-axis |
10 – 1000 mm/min |
|
Feed rate Z-axis |
6 – 640 mm/min |
|
Main drive power |
5.5 kW |
|
Overall dimensions |
2570 × 2035 × 1990 mm |
|
Weight |
4000 kg |
Equipment Depending on Version
- 3-axis digital readout
- Milling arbor with collet chuck set for end mills
- Reducing sleeves ISO 40 / Morse
- 24 V lighting system
- Cooling system
- User manual
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
