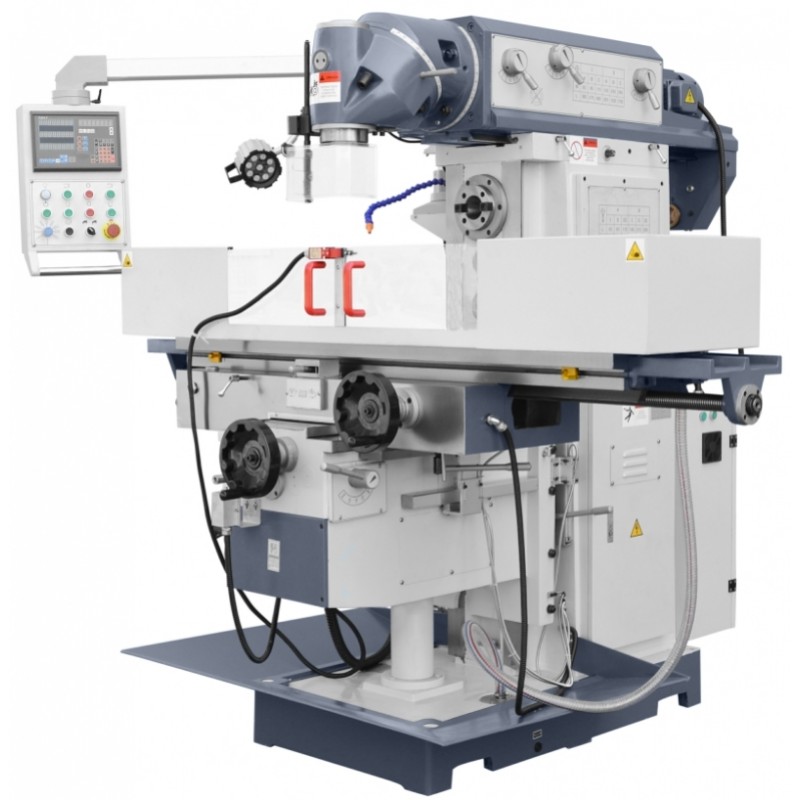

Universal Milling Machine CORMAK UWF150S SERVO Swivelling Table

  • Reduced price
Universal Milling Machine CORMAK UWF150S SERVO Swivelling Table -
  • Universal Milling Machine CORMAK UWF150S SERVO Swivelling Table -
  • Universal Milling Machine CORMAK UWF150S SERVO Swivelling Table -
  • Universal Milling Machine CORMAK UWF150S SERVO Swivelling Table -
  • Universal Milling Machine CORMAK UWF150S SERVO Swivelling Table -

Our new series of conventional milling machines, UWF150S SERVO, redefines precision and efficiency in the industry. This exceptional milling machine has been designed with maximum versatility and machining quality in mind. Equipped with servo drives for three feed axes, it enables accurate and fast material processing in any application.

Have questions? Call us!

+48 25 631 00 27 ext.130

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

Save €338.25
VAT included
€23,677.50
€23,339.25
The lowest price of this product in the last 30 days before the discount was €23,339.25 gross

Product available on request. Please contact our sales department.

There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Machine characteristics

  • Automatic feeds in X, Y, and Z axes ensure precise machining of materials in three dimensions.
  • Rapid feed on all axes and stepless feed adjustment allow efficient work across various machining tasks.
  • The digital display and user-friendly Schneider Electric control panel provide intuitive control over the machining process.

Technical parameters

Table dimensions

1600x360 mm

Maximum table travel (X/Y/Z)

1300x300x420 mm

Table T-slots (number/width/spacing)

3 / 14 mm / 95 mm

Maximum table tilt angle

±35°

Table feed speed

X/Y: 25–800 mm/min
Z: 8–267 mm/min

Spindle taper (vertical/horizontal)

7:24 ISO50 / 7:24 ISO50

Distance from table centre to column surface

230–530 mm

Distance from spindle to table surface

0–420 mm

Distance from spindle front vertical plane to table surface

150–570 mm

Spindle speed (vertical/horizontal)

(12) 60–1750 / (12) 58–1800 rpm

Horizontal motor power

5.5kW

Vertical motor power

4.5kW

Table feed servo drive

2.36kW / 15Nm

Overall dimensions

2550x2161x2102 mm

Weight

2,885kg

Additional equipment:

  • 3-axis digital readout
  • Servo drive
  • Long arbor ISO50/27 mm / ISO50/32 mm
  • Reduction sleeve ISO50/MK4
  • ISO50 arbor with ER32 collet set 4, 6, 8, 12, 16, 18, 20, 26
  • Lighting
  • Cooling system
  • Central lubrication system
  • Feed for X, Y, Z axes
  • Tool set
  • CE Declaration of Conformity
  • User manual
  • Brand new machine under warranty

Our UWF150S SERVO milling machine with swivelling table is the perfect solution for demanding machining tasks, providing reliability, precision, and performance. Discover new industrial capabilities through advanced technologies and robust design.

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
