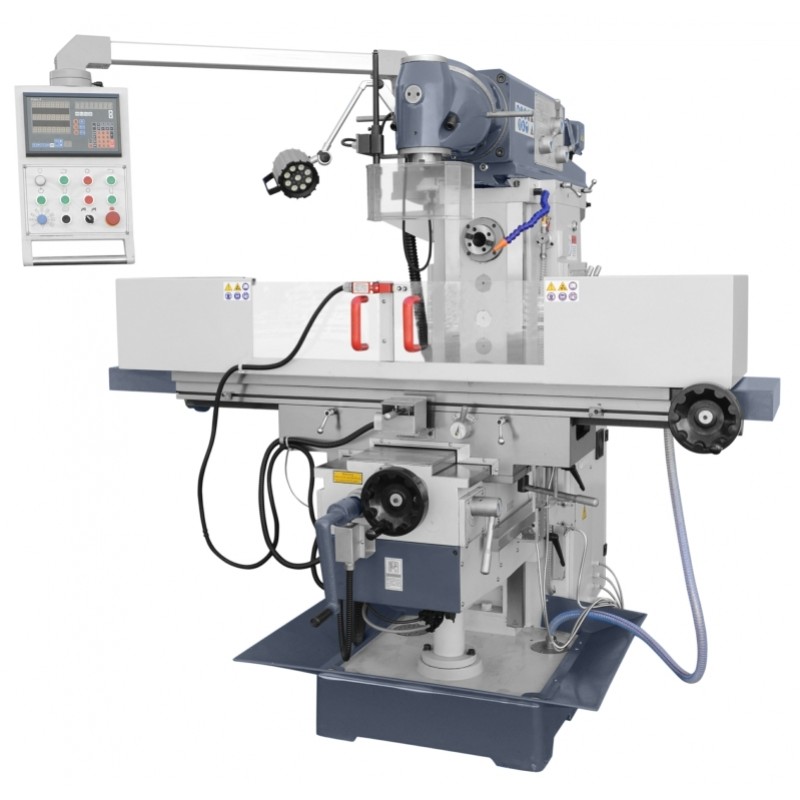

Universal Milling Machine CORMAK UWF120
Our industrial universal milling machine is an essential tool for heavy industry, craft workshops, toolrooms, and maintenance departments. Its massive and rigid construction guarantees stability even during the most demanding machining tasks. Equipped with hardened guides and a swivelling head, this machine enables precise milling at various angles. The large worktable measuring 1500x360mm with a maximum load of 600kg allows efficient machining of large components. Additionally, the SINO 3-axis digital readout system in standard equipment simplifies and enhances operation. It is a tool that meets the expectations of professionals in the field.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€16,574.25
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine characteristics
- Features a precision spindle gearbox and ground, hardened, and polished slideways, ensuring durability and machining precision for many years.
- Allows adjustment to any tilt angle thanks to an innovative connection of two tilting planes.
- The central lubrication system and ground, hardened gears in the spindle gearbox ensure quiet and smooth operation without compromise.
Technical data
| Maximum face milling cutter diameter |
25 mm |
| Table dimensions |
1500x320 mm |
| Table travel X/Y/Z |
1000/320/340 mm |
| Distance from spindle face to table |
90–430 mm |
| Distance from horizontal spindle axis to table |
–130 to 300 mm |
| Distance from spindle axis to column |
400–800 mm |
| T-slot width, spacing, and number | 14 mm / 70 mm / 3 pcs |
| Spindle speeds |
45–1660 (V–11) rpm 34–1320 (H–12) rpm |
| Table feed |
25–595 mm/min (8) |
| Spindle taper |
ISO40 |
| Supply voltage |
400V |
| Motor power |
2.2kW (V); 3kW (H) |
| Weight |
2,100kg |
| Overall dimensions (LxWxH) |
1630x1700x1950 mm |
Equipment depending on version
-
3-axis digital readout
-
ISO40 arbor with ER32 collets 4, 5, 6, 8, 12, 14, 16
-
Reduction sleeve ISO40/MK4
-
Reduction sleeve ISO40/B16
-
Long arbors for horizontal spindle – 2 pcs
-
Drill chuck 3–16 mm B16
-
Vice 160
-
Lighting
-
Cooling system
-
Central lubrication system
-
Feed for X, Y, Z axes
-
Tool set
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
