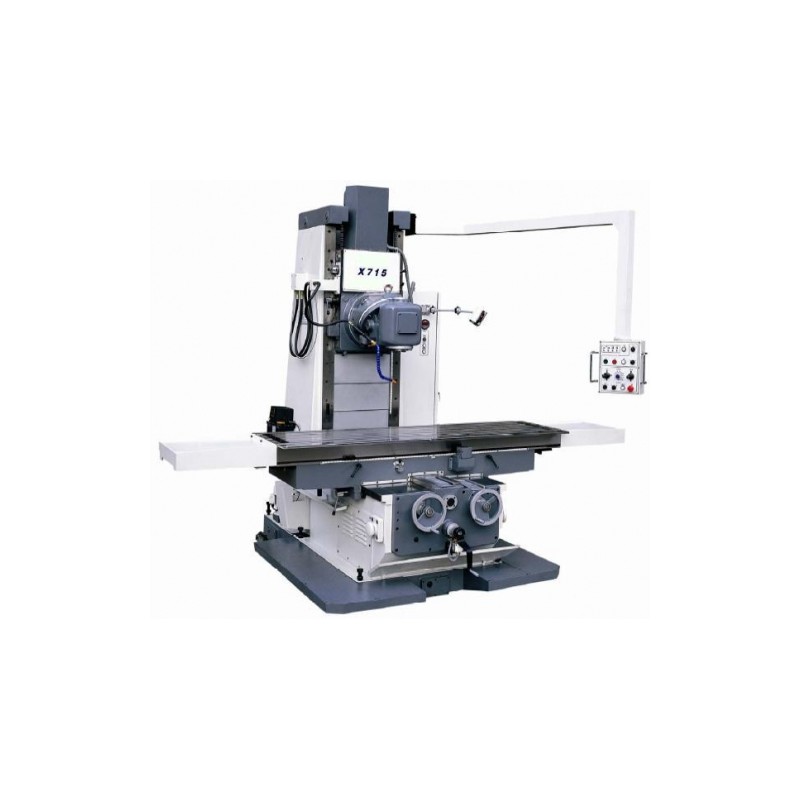

Universal Milling Machine CORMAK X715
The Universal Milling Machine X715 is a solidly built machine designed for machining heavy workpieces. Its rigid construction ensures stability during operation, while the large table surface enables efficient processing of large components. With the ability to operate both as a vertical and horizontal milling machine, this model offers exceptional versatility. Additionally, the large vertical head travel allows precise machining of parts of various dimensions. The X715 is an ideal solution for professionals seeking high-performance metalworking equipment and an excellent investment for industrial workshops.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€87,945.00
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine characteristics
- Robust and durable construction ensuring stability during machining of heavy components.
- Large table surface allowing comfortable work with big materials and complex projects.
- Versatile design enabling both vertical and horizontal milling, increasing flexibility and machining range.
- Large vertical head travel providing access to different work areas and enabling diverse machining operations.
-
Digital display for precise monitoring of machine parameters and settings.
-
Universal 360° swivelling head allows machining at different angles without repositioning the workpiece.
|
Technical parameters | |
|---|---|
|
Table size |
2100 x 500 mm (option 2500 x 500 mm) |
|
Number of T-slots |
4 |
|
T-slot width / spacing |
20 mm / 100 mm |
|
Maximum table load |
2,000 kg |
|
Longitudinal travel |
1500 mm (option 1900 mm) |
|
Cross travel |
670 mm |
|
Spindle |
ISO50 7:24 |
|
Spindle speed |
(12) 40–1600 rpm |
|
Distance from spindle to column surface |
610 mm |
|
Distance from spindle to table surface |
0–670 mm |
|
Rapid feed (longitudinal and cross) |
3500 mm/min |
|
Rapid vertical feed |
1750 mm/min |
|
Feed rate (longitudinal and cross) |
20–1800 mm/min |
|
Feed rate (vertical) |
10–900 mm/min |
|
Spindle motor |
7.5kW |
|
Feed motor |
2kW |
|
Cooling pump motor |
0.55kW |
|
Overall dimensions |
3300 x 2380 x 2750 mm |
|
Net / gross weight |
7300 kg / 8000 kg |
Equipment depending on version
- Milling holder ISO50
- ISO50 toolholder
- Reduction sleeve
- Oil gun
- Toolbox with basic tools
- Mounting anchors
- User manual
- CE Declaration of Conformity
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
