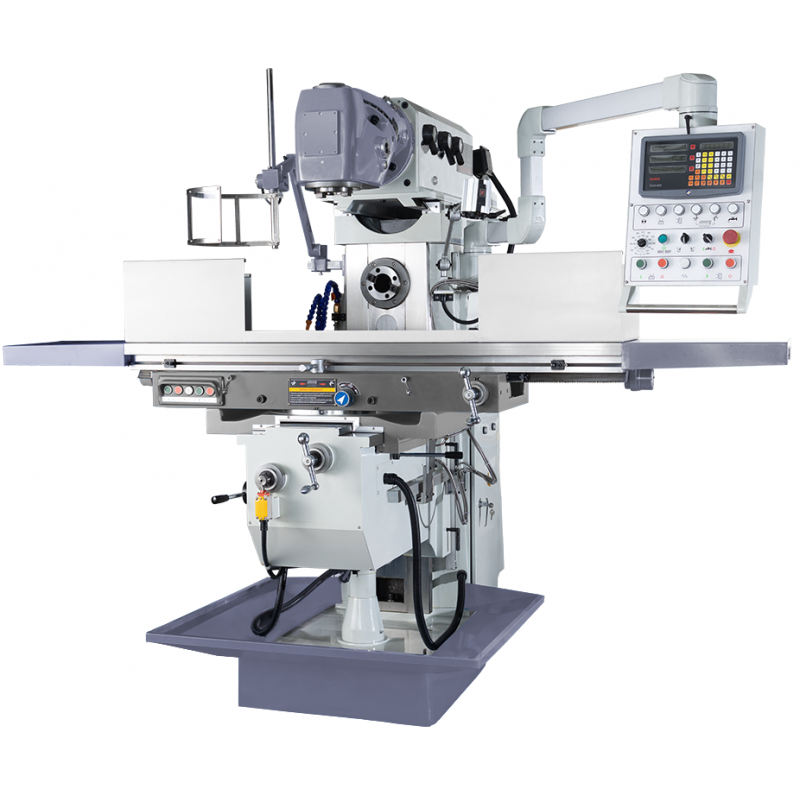

Conventional Universal Knee-Type Milling Machine CORMAK FU1700

  • Reduced price
Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -
  • Conventional Universal Knee-Type Milling Machine CORMAK FU1700 -

The CORMAK FU1700 Conventional Universal Knee-Type Milling Machine features a durable structure and precise servo drives with ball screws in all axes, ensuring exceptional accuracy and efficiency. Its universal swivelling head, central lubrication and LED lighting make operation simple and comfortable. This machine is designed to handle even the most demanding industrial machining tasks.

Variant
Conventional Universal Knee-Type Milling Machine CORMAK FU1600
Conventional Universal Knee-Type Milling Machine CORMAK FU1600
Conventional Universal Knee-Type Milling Machine CORMAK FU2000
Conventional Universal Knee-Type Milling Machine CORMAK FU2000
Conventional Universal Knee-Type Milling Machine CORMAK FU1800
Conventional Universal Knee-Type Milling Machine CORMAK FU1800
Have questions? Call us!

+48 25 631 00 27 ext.130

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

Save €1,875.75
VAT included
€29,489.25
€27,613.50
The lowest price of this product in the last 30 days before the discount was €27,644.25 gross

Product available on request. Please contact our sales department.

Last items in stock

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Machine Characteristics

  • Powerful axis servomotors enable stepless feed adjustment in all three axes, ensuring precise machining.
  • Telescopic covers on the Y-axis protect the feed spindle from contamination and damage.
  • Universal milling head tiltable in two planes allows easy transition between horizontal and vertical milling operations.
  • The combination of both tilt planes enables almost any head angle setting, increasing machining flexibility.

Technical Data

Table dimensions

1700 × 400 mm

Table travel (X/Y/Z)

1300 / 450 / 600 mm

X-axis feed rate

25 – 800 mm/min

Y-axis feed rate

25 – 800 mm/min

Z-axis feed rate

8 – 267 mm/min

Spindle taper

7:24 ISO50 (H)
7:24 ISO50 (V)

Upper arm travel

700 mm

Distance between vertical spindle and table

200 – 850 mm

Distance from horizontal spindle axis to arm surface

200 mm
Spindle speed range

50 – 1520 rpm (Vertical)
60 – 1850 rpm (Horizontal)

Number of spindle speeds

12 / 12

T-slots (number / width / spacing)

3 / 18 / 100 mm

Spindle motor power

5.5 kW (Horizontal) / 7.5 kW (Vertical)

Feed servodrive torque

12 N·m

Overall dimensions

2245 × 2100 × 2000 mm

Weight

3580 kg

Equipment Depending on Version

  • 3-axis digital readout (DRO)
  • Lighting system
  • Cooling system
  • Central lubrication system
  • Vertical and horizontal spindles
  • Table feed in X, Y, Z axes
  • ISO50/ER arbor with collets 4–16 mm
  • ISO50/MK4 arbor
  • Horizontal spindle support
  • Two long arbors for horizontal spindle
  • Set of operating tools
  • CE declaration of conformity
  • User manual
  • Factory-new machine under warranty

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
