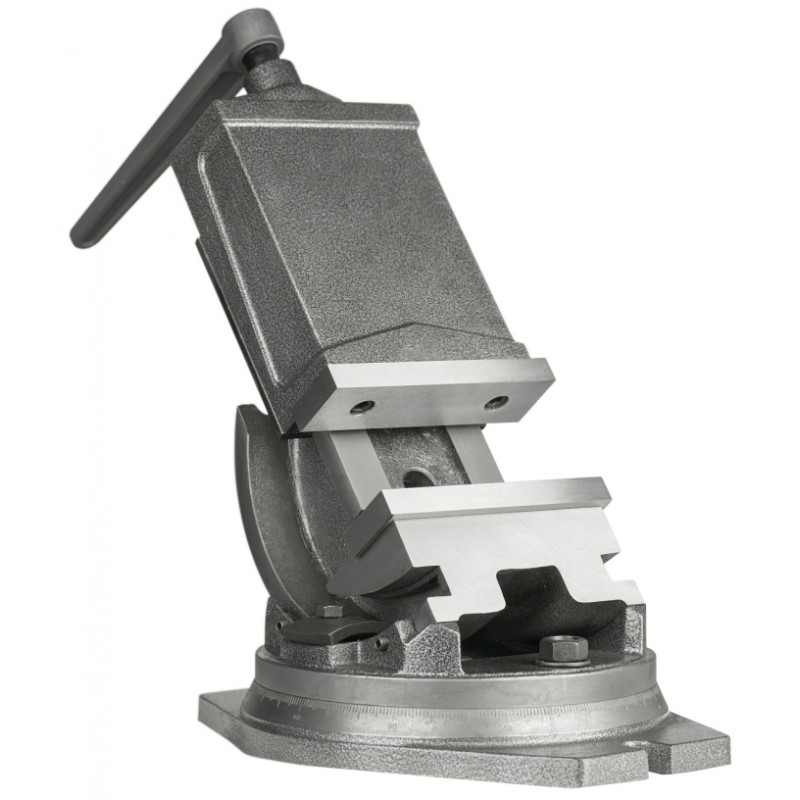

Tilting and Swivel Machine Vice CORMAK QHK125

Tilting and Swivel Machine Vice CORMAK QHK125 – precision clamping at any angle

Machine vices are essential tools in every machining setup, where workpiece stability and positioning accuracy are crucial. The QHK125 model features a unique tilting and swivel design, making it exceptionally versatile for angular operations. Perfect as a bench drill vice, milling vice or grinding vice, especially for applications requiring non-standard positioning. Its solid cast-iron construction and combined swivel and tilting functions guarantee flexibility, precision and operational safety.

Main advantages

• Tilting and swivel cradle design – allows angular positioning in two planes simultaneously.
• Precision 360° scale – ensures accurate workpiece alignment in 1° increments.
• Heavy-duty cast-iron body – delivers rigidity, stability and long service life.
• High clamping force of 3,000kg – ensures secure grip for both heavy-duty and precision machining.
• Protected lead screw – guards the mechanism against chips and coolant, extending its lifespan.
• Removable swivel base – enables configuration flexibility depending on the application.

Construction and technology

The QHK125 is an industrial-grade tilting and swivel machine vice designed for safe and precise angular machining. The body and movable jaw are made of high-quality cast iron, providing excellent resistance to torsion and vibration. The cradle-type tilting mechanism ensures a stable hold of the selected angle. The lead screw, housed under a protective cover, remains shielded from contaminants, ensuring smooth and durable operation over time.

Precision and performance

The tilting and swivel vice allows the workpiece to be rotated and inclined in multiple planes without repositioning or removing it from the table. This design significantly reduces setup time and allows complex operations to be performed without additional fixtures. The vice’s robust construction ensures high precision even during demanding milling or grinding tasks.

Applications

The QHK125 vice is perfect wherever precise angular positioning of workpieces is required. Recommended for:

• Conventional and CNC milling machines – for angular and face machining.
• Grinders – allows accurate setup of work surfaces at the required angle.
• Bench drills – ideal for drilling inclined holes.
• Toolrooms and small-scale production – highly versatile for precision work.

Standard equipment

• Tilting and swivel machine vice with fixed and movable jaws
• 360° swivel base with graduated scale
• Tilting cradle mechanism
• Protected lead screw

Technical data

Choose a professional vice for demanding operations

Opt for the CORMAK QHK125 machine vice that provides precise and secure angular clamping. Perfect for demanding machining operations in professional workshops. Expand your capabilities – order the QHK125 tilting and swivel machine vice today from CORMAK.
