UWF200 SERVO Universal Milling Machine
A new series of conventional machines, equipped with servodrives for 3 feeds.
Variant
UWF150 SERVO Universal Milling Machine
UWF120 SERVO universal milling machine
Frezarka uniwersalna UWF 110 SERVO
Are you a member of the VIES group?
VAT included
€29,900.00
The lowest price of this product in the last 30 days before the discount was €29,900.00 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
|
Table dimensions |
2000x400 mm |
|
X/Y/Z maximum table travel |
1600x490x460 mm |
|
X/Y/Z table feed |
30-750/20-500/15-375 mm/min |
|
Spindle taper |
7:24 ISO 50 (H) 7:24 ISO 50(V) |
|
Arm travel |
550 mm |
|
Distance from spindle to table surface |
196–656 mm |
|
Distance from horizontal spindle do table |
20–480 mm |
|
Spindle speed |
(12) 60-1750(V) 60-1800(H) obr/min |
|
Horizontal motor power |
7.5 kW |
|
Vertical motor power |
5 kW |
|
Servomotor |
15 Nm |
|
Dimensions |
1860x2500x2000 mm |
|
Weight |
4500 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
100 mm Inclined Swivel Machine Vice
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and ...More
125 mm Inclined Swivel Machine Vice
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and ...More
160 mm Inclined Swivel Machine Vice
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and ...More
16 other products in the same category:
UWF120 SERVO universal milling machine
Universal Milling Machine UWF 120 SERVO with Independent Head Drive: Exceptional Flexibility in Processing Our UWF 120 SERWO Universal Milling Machine is an innovative solution for various milling works. Servomotors for the X, Y, Z axes and an independent drive of the vertical head enable ...More
- Reduced price

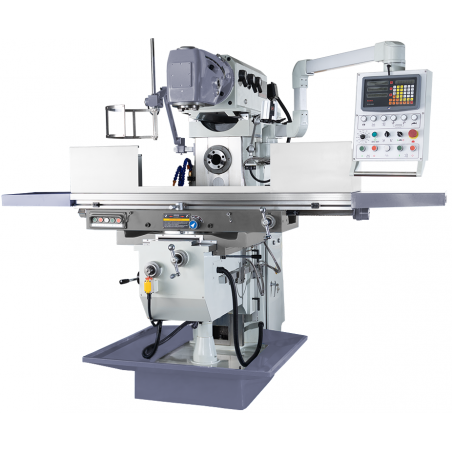

FU1700 CONSOLE MILLING MACHINE
