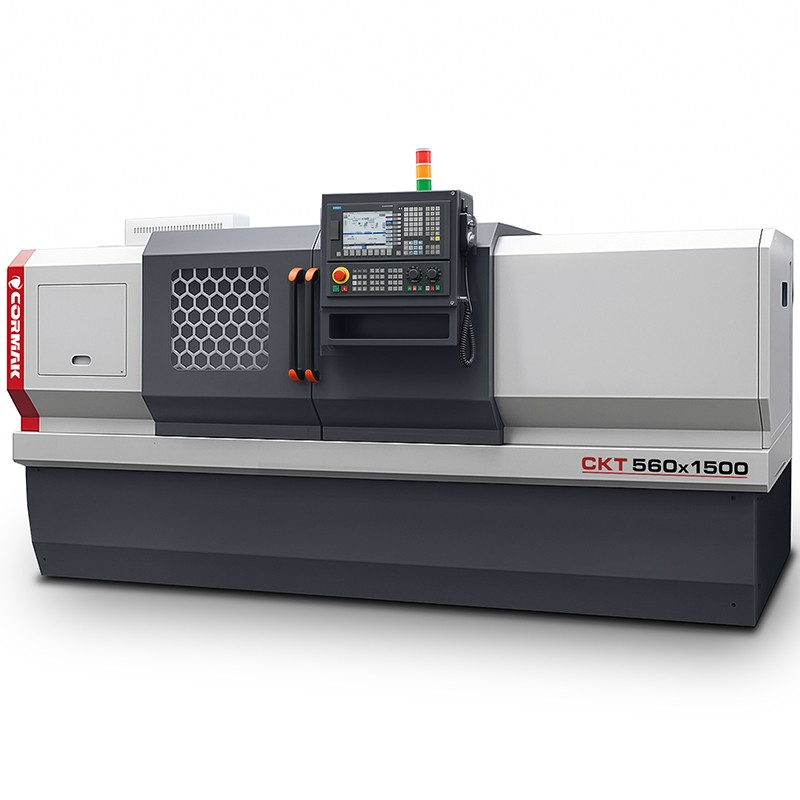

CNC Lathe CKT560x1500 – precision and performance in metalworking

CNC Lathe CKT560x1500 is an advanced numerically controlled lathe designed for precision machining of metal parts in demanding industrial environments. Equipped with SIEMENS SINUMERIK 808D control and a solid construction, it offers high accuracy, reliability and efficiency, ideal for medium and large production facilities.

Main advantages of the CNC Lathe CKT560x1500

CNC Lathe for metal CKT560x1500 is a professional industrial solution combining advanced technology with robust design, dedicated to facilities requiring top-quality cutting performance. As an industrial lathe, it enables the execution of complex operations such as external, internal and spherical turning, threading, drilling, grooving and contouring, ensuring outstanding workpiece quality. Its key benefits include:

• Exceptional machining precision: Maximum turning diameter over bed 560 mm and over carriage 340 mm, with a bed width of 430 mm, guarantee excellent surface finish quality.
• Flexible spindle: Speed range 100–800 rpm and spindle bore 75 mm (option 90 mm) with spindle nose A2-11 allow machining of a wide variety of materials from steel to light alloys.
• Intuitive control: SIEMENS SINUMERIK 808D system with Siemens servo drives offers a dedicated mode for operators of conventional machines, reducing the learning curve for CNC operation.
• Rigid construction: Net weight 3600 kg and dimensions 3770×1500×1900 mm ensure excellent stability when machining workpieces up to 1500 mm in length.
• Tool efficiency: 8-position tool turret (option 6) with 25×25 mm tools speeds up tool change and shortens production cycles.
• Quick setup: Enables convenient tool setting, zero-point adjustment and corrections without programming – ideal for single-part production.
• Enhanced safety: Controlled feed movements and limited speeds allow precise and safe machine handling, reducing operational errors.
• Component durability: The automatic lubrication system for gears and guideways reduces wear and extends machine service life.
• Optimised cooling: The cooling system ensures thermal stability, protecting tools and components during intensive machining.
• Versatile applications: Designed for precision turning in mechanical, automotive and tooling industries, suitable for both batch and small-series production.
• Operational economy: Main motor power of 11 kW combines high performance with low energy consumption.
• Integration with machining cycles: Cooperation with machining cycles such as transverse turning, taper turning, threading and drilling requires only basic parameter input without G-code knowledge.
• Advanced automation: Options such as hydraulic chuck, hydraulic tailstock, bar feeder or chip conveyor improve production efficiency.
• Customisation: A wide range of optional configurations, such as Fanuc Oi-TF, Sinumerik 828D, tool probe or CAD/CAM software, allow the machine to be tailored to specific production requirements.
• European safety standards: The CE Declaration of Conformity confirms compliance with stringent European workplace safety standards.

Construction and technology of the CNC Lathe CKT560x1500

Industrial CNC Lathe CKT560x1500 has been designed for reliability and precision in demanding production conditions. Key structural elements include:

• Solid machine bed: Rigid design with a net weight of 3600 kg and a bed width of 430 mm minimises vibrations, ensuring stability during machining.
• High-performance spindle: Bore of 75 mm (option 90 mm) and speed range of 100–800 rpm with A2-11 spindle nose allow machining of various workpieces.
• Turret head: 8-position (option 6) with 25×25 mm tools ensures quick tool change and operational flexibility.
• Manual tailstock: MT5 taper with a maximum quill travel of 150 mm provides precise workpiece support.
• Manual 3-jaw chuck: Ensures secure workpiece clamping, with an optional hydraulic chuck for increased automation.
• Siemens servo drives: Guarantee smooth movement and high positioning accuracy.
• Automatic lubrication system: Central lubrication of gears and guideways reduces component wear.
• Cooling system: Maintains optimal temperature, improving machining quality and tool life.
• 24V halogen lighting: Provides excellent visibility of the working area, improving safety and precision.

Precision and performance

Numerically controlled lathe CKT560x1500 offers outstanding precision thanks to SIEMENS SINUMERIK 808D control and Siemens servo drives. Advanced standard cycles such as transverse turning, taper turning, threading, grooving and contouring simplify programming and reduce machining time. The ability to machine workpieces up to 560 mm in diameter and 1500 mm in length, combined with a bed width of 430 mm, guarantees high quality and efficiency.

Applications of the CNC Lathe CKT560x1500

CNC Lathes for metal such as the CKT560x1500 are used across multiple industrial sectors, including:

• Mechanical industry: Production of shafts, sleeves, flanges and precision components.
• Automotive industry: Machining of engine, gearbox and suspension components.
• Tool industry: Production of threads, grooves and complex geometry parts.
• Batch and small-series production: Perfect for medium-scale manufacturing and fast prototyping in R&D facilities.

The machine is an excellent choice for workshops seeking a versatile and reliable CNC lathe.

Standard equipment

• SIEMENS SINUMERIK 808D control
• Siemens servo drives
• Manual 3-jaw chuck
• 8-position turret head
• Set of soft jaws
• Manual tailstock
• Cooling system
• Automatic lubrication system for gears and guideways
• 24V halogen lighting
• CE Declaration of Conformity

Optional equipment*

• SIEMENS SINUMERIK 828D
• Fanuc Oi-TF
• GSK control
• Steady rest (fixed)
• Hydraulic chuck
• Hydraulic tailstock
• Follow rest
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet chucks
• Finished part catcher
• Bar feeder
• Tool holders
• CAD/CAM software

*The price refers to the machine only and excludes optional or additional equipment, installation, transport and training — please contact our consultant for details.

Technical specifications

CNC Control Systems – SIEMENS and FANUC

CNC Lathe CKT560x1500 offers advanced CNC control systems such as SIEMENS SINUMERIK 808D, SIEMENS SINUMERIK 828D and FANUC Oi-TF, providing precision, reliability and intuitive operation:

SIEMENS SINUMERIK 808D

• Intuitive interface: Easy to operate, ideal for smaller workshops and beginner users.
• Reliability: Durable design resistant to demanding industrial environments.
• Cost efficiency: Dedicated for standard turning and milling operations.

SIEMENS SINUMERIK 828D

• High computing power: Enables dynamic machining and operation of complex cycles.
• CAD/CAM integration: Simplifies workflow with design software.
• Advanced functions: Optimised tool paths and modular expandability.

FANUC Oi-TF

• Stability: High reliability in long-term and serial production.
• Advanced turning cycles: Ideal for precise operations such as threading and grooving.
• Intuitive operation: Clear interface accelerating programming and setup.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Trust CORMAK experience

With over 20 years of experience in delivering industrial machinery, CORMAK provides reliable CNC lathes for metal and comprehensive technical support. Our machines meet European safety standards, and our professional warranty and post-warranty service ensure production continuity.

• 16 years of experience in servicing SIEMENS CNC controls.
• Over 12,000 machines and devices available in stock across 15,000 m² of warehouse space.
• We provide professional warranty and post-warranty service.
• Choosing CORMAK means buying from a European-certified company that guarantees safety and reliability.

Contact us for more information or to schedule a machine presentation!
