CNC Lathe 630x5000 – Advanced technology for industry

CNC Lathe 630x5000 is a professional numerically controlled machine designed for precise metal machining in demanding industrial environments. Thanks to its solid structure and advanced control systems, it delivers reliability and high productivity in both serial and single-piece manufacturing.

Main advantages of the CNC Lathe 630x5000

Numerical lathe 630x5000 offers comprehensive industrial solutions, combining advanced technology with practical performance. Its design and technical parameters ensure exceptional precision, efficiency and versatility — meeting the expectations of even the most demanding production facilities. The key advantages include:

• High machining accuracy: Turning diameter over bed 630 mm and over carriage 450 mm allow precise processing of components of various sizes and geometries.
• Extended centre distance: The 5000 mm distance between centres enables machining of very long components — ideal for heavy, shipbuilding and railway industries.
• Production efficiency: Spindle speed range 30–800 rpm and rapid feed of X/Z axes (6/8 m/min) reduce machining cycle times, increasing productivity.
• Durability and reliability: The 600 mm bed width and automatic lubrication system for gears and guideways ensure stability and low maintenance costs.
• Advanced automation: A 4-position tool turret (optional 6 or 8) enables quick tool changes, improving productivity for complex operations.
• Intuitive operation: Siemens Sinumerik 808D control in Polish, and optional Sinumerik 828D or Fanuc Oi-TF systems, allow for easy programming and setup.
• Safety and ergonomics: 24V halogen lighting and an efficient cooling system ensure operator comfort and safety.
• Wide machining versatility: Advanced CNC controls enable threading, grooving and drilling cycles.
• Cost-effective operation: Intelligent lubrication and rigid machine design reduce service frequency and maintenance expenses.
• Flexible configuration: Optional features such as a hydraulic chuck or chip conveyor allow the lathe to be tailored to specific production needs.

Construction and technology

The CNC Lathe 630x5000 has been designed for durability, precision, and efficiency in demanding industrial conditions. Key structural components include:

• Robust bed design: A 600 mm wide bed ensures stability when machining heavy components weighing up to 8900 kg.
• Large spindle bore: The 130 mm through-hole with A2-11 spindle nose allows machining of long and massive workpieces.
• Powerful spindle drive: A 11 kW main motor delivers high performance when machining a variety of materials, including steel and alloys.
• Automatic lubrication system: Reduces wear on gears and guideways, significantly extending machine life.
• Revolver tool post: The standard 4-position turret (optional 6 or 8) enables fast tool changes, increasing machining automation.
• Manual 3-jaw chuck: Provides firm and secure clamping of components of various sizes and shapes.
• Cooling system: Ensures optimal tool and workpiece temperature, improving cutting quality and extending tool life.
• Manual tailstock: Equipped with a quill diameter of 75 mm and MK5 taper, offering stable support for long workpieces.

Precision and productivity

The Industrial Lathe 630x5000 provides outstanding accuracy thanks to advanced Siemens Sinumerik and Fanuc Oi-TF control systems. These allow easy programming of complex machining cycles such as threading, grooving, and drilling. The maximum X-axis travel (330 mm) and rapid traverse of X/Z axes (6/8 m/min) guarantee exceptional machining precision and repeatability. The dynamic spindle drive and heavy-duty frame optimise production time, essential for both serial and single-part manufacturing.

Applications

The CNC Lathe 630x5000 is ideal for a wide range of industrial applications, including:

• Automotive industry: Precision manufacturing of components such as shafts, bushings, and gears.
• Machinery industry: Machining of large, high-accuracy machine elements.
• Serial and single production: Flexibility for both batch production and custom components.
• Energy sector: Turning of highly demanding components such as turbine parts and shafts.
• Shipbuilding and railway industries: Machining of long metal components up to 5000 mm in length.

This machine is a perfect choice for manufacturing facilities seeking a reliable and versatile metalworking solution.

Technical data – CNC Lathe 630x5000

Standard equipment

• Siemens Sinumerik 808 control system
• Siemens servo drives
• Manual 3-jaw chuck
• 4-position tool turret
• Set of soft jaws
• Manual tailstock
• Fixed steady rest
• Cooling system
• Automatic lubrication system for gears and guideways
• 24V halogen lighting
• User manual

Optional equipment*

• Control systems: Sinumerik 828, Fanuc, GSK
• Travelling steady rest
• Hydraulic chuck
• Hydraulic tailstock
• Fixed steady rest
• Tool probe
• Chip conveyor
• Additional soft jaws

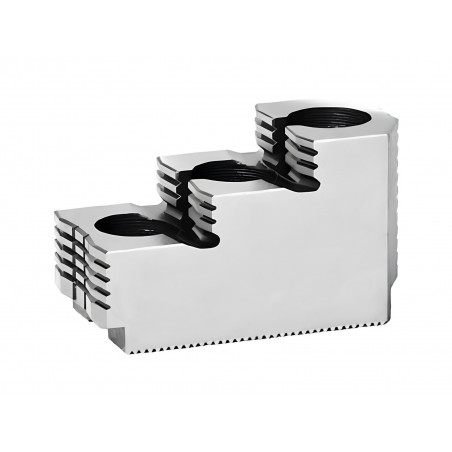

• Hard jaws
• Collet chucks
• Finished-part gripper
• Bar feeder
• Tool holders
• CAD/CAM software

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

CNC control systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF

CNC metal lathes from the 630x5000 series are equipped with world-renowned Siemens Sinumerik and Fanuc Oi-TF control systems, offering high precision, reliability and ease of operation. Choosing the right control allows you to tailor the machine to specific production needs.

Siemens Sinumerik 808D

Siemens Sinumerik 808D is an economical CNC control designed for entry-level users, offering an intuitive interface, reliability and compatibility with standard CNC machinery.

Siemens Sinumerik 828D

Siemens Sinumerik 828D is an advanced system for demanding processes, providing high computing power, sophisticated machining cycles and CAD/CAM integration.

Fanuc Oi-TF

Fanuc Oi-TF offers outstanding stability and precision in turning operations, with an intuitive user interface and advanced functions — ideal for serial production environments.

Trust CORMAK’s experience

With over 20 years of experience in supplying industrial machinery, CORMAK provides reliable solutions and professional service. Our CNC lathes meet European safety standards and are supported by a qualified team of engineers.

• 16 years of experience in servicing Siemens CNC control systems.
• 15,000 m² warehouse space housing approximately 12,000 machines.
• Professional consultation and expert advice in machine selection and implementation.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Order the CNC Lathe 630x5000 today!

Contact us to receive a detailed quotation and professional advice when choosing a CNC lathe for metal machining. Invest in precision and efficiency with CORMAK!

Contact us
