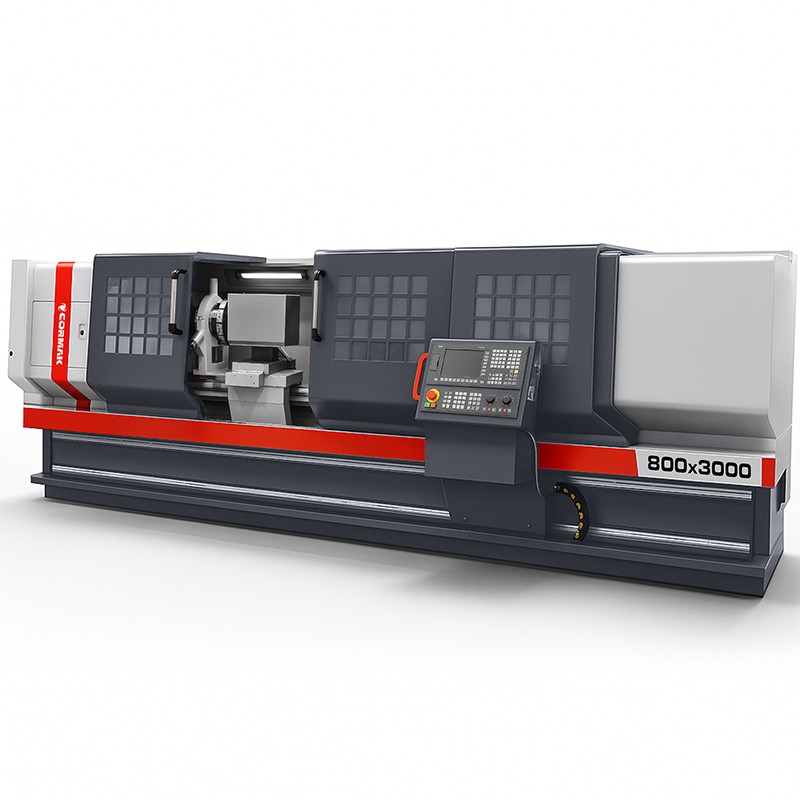

CNC Lathe 800x3000 – Advanced Technology for Industry

CNC Lathe 800x3000 is a professional numerically controlled machine designed for precision metalworking in demanding industrial applications. Thanks to its solid structure and advanced control systems, it ensures reliability and high productivity in both batch and single production.

Main Advantages of the CNC Lathe 800x3000

The CNC Lathe 800x3000 combines advanced technology with functionality, offering users key benefits that enhance production efficiency. The main advantages include:

• High machining precision: Positioning accuracy of 0.03/0.04 mm and X/Z axis repeatability of 0.012/0.02 mm ensure excellent part quality.
• Production efficiency: Maximum spindle speed of 1200 rpm and rapid feed rate of 4/8 m/min reduce machining cycle times.
• Application flexibility: Programmable turning cycles such as taper turning, threading and grooving thanks to intuitive CNC control systems.
• Durability and reliability: Induction-hardened guideways and intelligent central lubrication minimise wear and reduce maintenance costs.
• Advanced automation: 4-position turret (optional 6 or 8) increases productivity when machining complex components.
• Intuitive operation: Siemens Sinumerik and Fanuc Oi-TF systems provide easy programming and adaptability to operator preferences.
• Operational safety: Fully enclosed work area ensures operator and workspace protection.

Construction and Technology

The CNC Metal Lathe 800x3000 has been designed for maximum durability and precision in demanding industrial environments. The key construction features include:

• Solid machine bed: Width of 600 mm ensures stability during machining of workpieces weighing up to 1700 kg.
• Large spindle bore: Standard bore 104 mm (optional 130 mm) allows machining of long and heavy components.
• High-quality ball screws: Guarantee precise X and Z axis feeds, minimising machining errors.
• Powerful spindle drive: 15 kW motor delivers high performance when working with a wide range of materials.
• Intelligent central lubrication: Reduces maintenance demand and extends machine life.
• Tool turret: Standard 4-position (optional 6 or 8) turret enables quick tool changes, increasing automation.
• Cooling system: Ensures optimal working conditions for both tools and workpieces, improving surface quality.

Precision and Performance

The Industrial Lathe 800x3000 delivers exceptional precision through advanced control systems such as Siemens Sinumerik 808D, 828D or Fanuc Oi-TF. These controls enable easy programming of complex machining cycles, including threading, taper turning and grooving. High axis repeatability (0.012/0.02 mm) and positioning accuracy (0.03/0.04 mm) guarantee outstanding machining precision, while a dynamic spindle drive and rapid traverse speeds optimise production time — essential in serial manufacturing processes.

Applications

The CNC Metal Lathe 800x3000 is an ideal solution for a wide range of industrial applications, including:

• Automotive industry: Production of precision components such as shafts, bushings and gears.
• Machinery industry: Machining of large, high-accuracy machine parts.
• Batch and single production: Flexibility for both large-series and custom parts manufacturing.
• Energy and aerospace industries: Turning of high-precision components such as turbine parts and axles.
• Shipbuilding industry: Machining of large metal components up to 3000 mm in length.

The machine is an excellent choice for production facilities seeking a reliable and versatile CNC turning solution.

Technical Data – CNC Lathe 800x3000

Standard Equipment

• Fully enclosed working area
• 4-position tool post
• 3-jaw chuck 320 mm
• Chuck and manual tailstock
• Fanuc or Siemens control
• Cooling system
• Lighting
• Fixed and travelling steadies
• User manual in English

Optional Equipment*

• 6- or 8-position turret
• Manual handwheels
• Hydraulic chuck and tailstock
• 130 mm spindle bore
• Advanced machining cycles
• High-pressure coolant system

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

CNC Control Systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF

CNC metal lathes from the 800x3000 series are equipped with renowned Siemens Sinumerik and Fanuc Oi-TF control systems, ensuring precision, reliability and ease of use. Choosing the appropriate controller allows the machine to be tailored to specific production requirements.

Siemens Sinumerik 808D

Siemens Sinumerik 808D is an economical CNC control system ideal for entry-level users, offering an intuitive interface, high reliability and compatibility with standard turning and milling machines.

Siemens Sinumerik 828D

Siemens Sinumerik 828D is an advanced control system for demanding machining processes, offering high computational power, sophisticated machining cycles and seamless integration with CAD/CAM software.

Fanuc Oi-TF

Fanuc Oi-TF provides outstanding stability and precision for turning operations, with an intuitive interface and advanced turning features ideal for serial production environments.

Trust CORMAK Expertise

With over 20 years of experience in supplying industrial machinery, CORMAK delivers reliable solutions and professional service. Our CNC lathes meet European safety standards and are supported by a team of qualified engineers.

• 16 years of experience in servicing Siemens CNC controls.
• 15,000 m² warehouse space with around 12,000 machines available.
• Professional consulting in machine selection and configuration.

User Manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual
