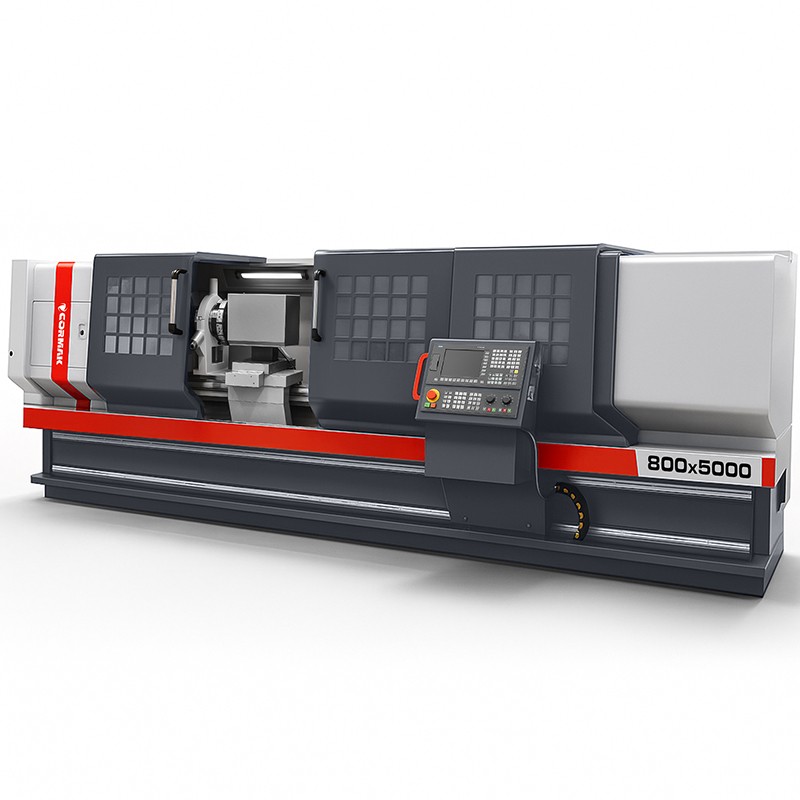

CNC Lathe 800x5000 – Advanced technology for industry

CNC Lathe 800x5000 is a professional numerically controlled machine designed for precise metal machining in demanding industrial applications. With its rigid construction and advanced control systems, it provides reliability and high productivity in both series and unit production.

Main advantages of the CNC Lathe 800x5000

CNC Lathe 800x5000 offers comprehensive solutions for industry, combining advanced technology with practical benefits. Its design and technical parameters ensure exceptional precision, efficiency and versatility, meeting the expectations of even the most demanding manufacturing plants. Key advantages include:

• High machining precision: Turning diameter over bed 800 mm and over cross-slide 450 mm enable accurate machining of large and complex workpieces.
• Large centre distance: The 5000 mm centre distance allows machining of very long components, ideal for heavy, shipbuilding and railway industries.
• Production efficiency: Spindle speed range 30–800 rpm and rapid feed on X/Z axes (6/8 m/min) shorten machining cycles and increase throughput.
• Durability and reliability: Bed width of 600 mm and automatic lubrication for gears and guides ensure stability and reduce operating costs.
• Advanced automation: A 4-position turret (optional 6 or 8) enables quick tool changes and greater efficiency in complex operations.
• Intuitive operation: Siemens Sinumerik 808D control and optional Sinumerik 828D and Fanuc Oi-TF systems allow easy programming and configuration.
• Safety and ergonomics: 24 V halogen lighting and a cooling system ensure operator comfort and safety.
• Versatility of application: Performs complex machining cycles such as threading, grooving and drilling thanks to advanced CNC control.
• Cost-effectiveness: The intelligent lubrication system and robust design minimise maintenance needs and operating expenses.
• Configuration flexibility: Optional equipment such as a hydraulic chuck or chip conveyor allows adaptation to specific production requirements.

Construction and technology

CNC Lathe 800x5000 has been engineered for durability, precision and productivity in demanding industrial conditions. Key design features include:

• Rigid machine bed: A 600 mm bed width provides stability when machining heavy components weighing up to 8,900 kg.
• Large spindle bore: A 130 mm through-hole with A2-11 nose enables machining of long and massive workpieces.
• Powerful spindle drive: An 11 kW motor ensures high performance when machining various materials, including steel and metal alloys.
• Automatic lubrication system: Minimises wear of gears and guides, extending machine life.
• Tool turret: Standard 4-position (optional 6 or 8) allows fast tool changes, enhancing process automation.
• Manual 3-jaw chuck: Provides secure clamping for workpieces of various shapes and sizes.
• Cooling system: Maintains optimal conditions for tools and workpieces, improving machining quality and tool life.
• Manual tailstock: Equipped with a quill diameter of 75 mm and MT5 taper, ensuring stable support for long parts.

Precision and performance

Industrial Lathe 800x5000 offers exceptional precision through advanced Siemens Sinumerik and Fanuc Oi-TF control systems. They enable easy programming of complex cycles such as threading, grooving and drilling. Maximum X-axis travel (330 mm) and rapid feed of X/Z axes (6/8 m/min) ensure high accuracy and repeatability. The dynamic spindle drive and robust design optimise production time — crucial for both serial and unit manufacturing.

Applications

CNC Lathe 800x5000 is the ideal solution for a wide range of industrial applications, including:

• Automotive industry: Production of precise components such as shafts, sleeves and gears.
• Machinery industry: Machining of large-scale machine elements requiring high precision.
• Serial and unit production: Flexibility for both large batches and individual components.
• Energy industry: Turning of technically demanding components such as turbine parts and shafts.
• Shipbuilding and railway industries: Machining of very long metal components up to 5000 mm in length.

The machine is an excellent choice for production plants seeking a reliable and versatile solution for metalworking.

Technical data – CNC Lathe 800x5000

Standard equipment

• Siemens Sinumerik 808 control system
• Siemens servo drives
• Manual 3-jaw chuck
• 4-position tool turret
• Set of soft jaws
• Manual tailstock
• Fixed steady rest
• Cooling system
• Automatic lubrication system for gears and guides
• 24V halogen lighting

Optional equipment*

• Sinumerik 828, Fanuc, GSK controls
• Travelling steady rest
• Hydraulic chuck
• Hydraulic tailstock
• Fixed steady rest
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet holders
• Finished-part gripper
• Bar feeder
• Toolholders
• CAD/CAM software

*The price quoted is for the machine only and excludes optional/additional equipment, installation, transport and training — please contact our consultant for more details.

CNC Control Systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF

CNC Lathes from the 800x5000 series are equipped with renowned Siemens Sinumerik and Fanuc Oi-TF control systems that ensure precision, reliability and ease of operation. Selecting the right control allows the machine to be tailored to specific production needs.

Siemens Sinumerik 808D

Siemens Sinumerik 808D is an economical CNC control system designed for entry-level users. It offers an intuitive interface, high reliability and compatibility with standard machine tools.

Siemens Sinumerik 828D

Siemens Sinumerik 828D is an advanced system for demanding processes, featuring high computing power, extended machining cycles and integration with CAD/CAM systems.

Fanuc Oi-TF

Fanuc Oi-TF delivers outstanding stability and precision in turning operations, with an intuitive interface and advanced turning functions, ideal for serial production.

Trust CORMAK’s experience

With over 20 years of experience in delivering industrial machinery, CORMAK offers reliable solutions and professional service. Our CNC lathes comply with European safety standards and are supported by a qualified team of engineers.

• 16 years of experience in servicing Siemens CNC control systems.
• 15,000 m² warehouse area with around 12,000 machines in stock.
• Professional advice in selecting machines and industrial solutions.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Order the CNC Lathe 800x5000 today!

Contact us to receive a detailed quotation and professional advice on choosing the right CNC lathe for metalworking. Invest in precision and efficiency with CORMAK!

Contact us
