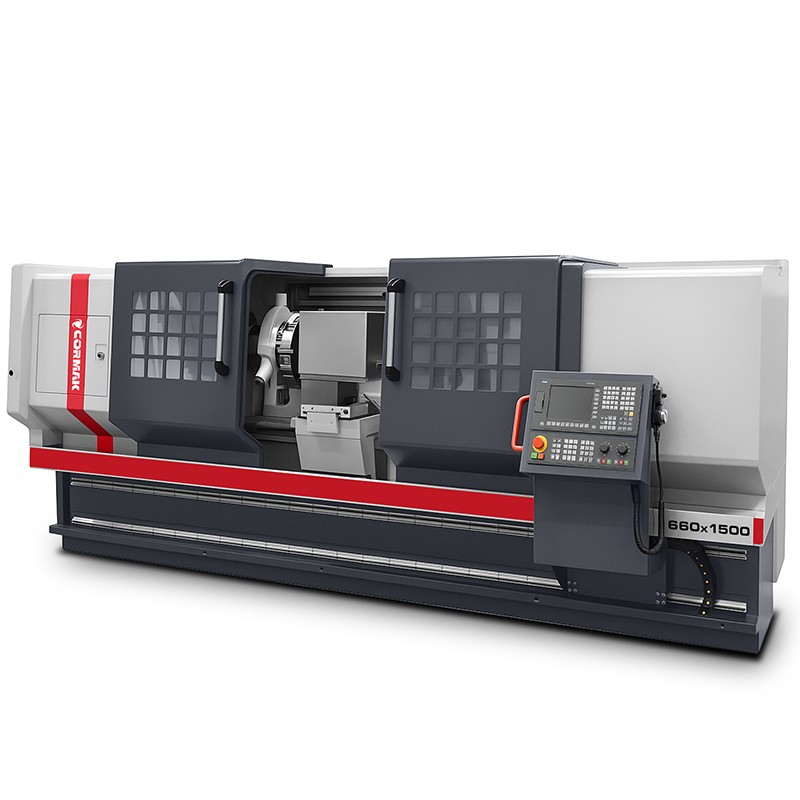

CNC Lathe 660x1500 – Precision and Performance in Metal Machining

CNC Lathe 660x1500 is an advanced numerically controlled lathe designed for precision machining of metal parts in demanding industrial environments. Equipped with SIEMENS SINUMERIK 808D control and a robust structure, it ensures high accuracy, reliability and efficiency, making it ideal for medium and large-scale production facilities.

Main Advantages of the CNC Lathe 660x1500

CNC Metal Lathe 660x1500 is a professional solution for the industry that combines advanced technology with a robust design, dedicated to facilities requiring the highest machining precision. As an industrial lathe, it enables complex operations such as external, internal and spherical turning, threading, drilling, grooving and contouring, ensuring exceptional surface quality. Its key advantages include:

• Exceptional machining precision: Maximum turning diameter over bed 660 mm and over cross slide 320 mm, with a distance between centres of 1500 mm, ensuring excellent surface finish quality.
• Flexible spindle: Speed range 100–900 rpm with a spindle bore of 115 mm allows machining a wide range of materials, from steel to light alloys.
• Intuitive control: The SIEMENS SINUMERIK 808D system with Siemens servo drives provides a user-friendly mode for conventional machine operators, reducing the learning curve for CNC use.
• Rigid construction: Net weight 3850/4550 kg and overall dimensions 650x1520x1750 mm ensure stability during machining of large workpieces.
• Tool efficiency: A 4-position tool post with 25 mm tools enables faster tool change and reduced production cycle times.
• Quick setup: Allows convenient tool setup, zero-point setting and corrections without program writing—perfect for single-piece or small-batch production.
• Enhanced safety: Jogging movements and speed limits allow precise and safe machine operation, minimising the risk of user errors.
• Durable components: Automatic lubrication system for gearbox and guides reduces wear and extends machine life.
• Optimised cooling: The cooling system ensures thermal stability, protecting tools and workpieces during intensive machining.
• Versatile applications: Dedicated for precision turning in mechanical, automotive and tooling industries, both in series and small-scale production.
• Operational economy: Main motor power 7.5 kW with an 11 kW inverter combines high performance with low energy consumption.
• Integration with machining cycles: Supports standard machining cycles such as facing, taper turning, threading and drilling, requiring only basic parameter input—no G-code knowledge needed.
• Advanced automation: Options such as hydraulic chuck, hydraulic tailstock, bar feeder or chip conveyor increase production efficiency.
• Customisation possibilities: A wide range of options such as FANUC Oi-TF, SINUMERIK 828D, tool probe or CAD/CAM software allows machine configuration to specific production needs.
• European safety standards: CE Declaration of Conformity confirms compliance with strict EU safety requirements.

Construction and Technology of the CNC Lathe 660x1500

Industrial CNC Lathe 660x1500 is designed for reliability and precision even in demanding production environments. The key construction elements include:

• Solid machine bed: Rigid structure with a net weight of 3850/4550 kg minimises vibrations and ensures stability during machining.
• High-performance spindle: Spindle bore 115 mm and rotational speed range 100–900 rpm enable machining of diverse workpieces.
• Tool post: 4-position tool holder with 25 mm tools allows quick tool changes and flexible machining operations.
• Manual tailstock: Equipped with MT5 taper and maximum quill travel of 200 mm, providing precise support for long workpieces.
• Manual 3-jaw chuck: Chuck diameter 360 mm ensures secure clamping, with an option for a hydraulic chuck for automated operations.
• Siemens servo drives: Guarantee smooth motion and high positioning accuracy for both X and Z axes.
• Automatic lubrication system: Central lubrication of the gearbox and guideways reduces wear and ensures long service life of machine components.
• Cooling system: Maintains optimal operating temperature, improving machining quality and extending tool life.
• 24V halogen lighting: Provides excellent workspace visibility, enhancing safety and precision during operation.

Precision and Work Efficiency

Numerical lathe 660x1500 offers outstanding accuracy thanks to SIEMENS SINUMERIK 808D control and Siemens servo drives. Advanced standard cycles such as facing, taper turning, threading, grooving and contouring simplify programming and shorten machining times. The rapid feed rate for the X/Z axes (8/10 m/min), combined with the ability to machine parts up to 660 mm in diameter and 1500 mm in length, ensures superior precision and efficiency.

Applications of the CNC Metal Lathe 660x1500

CNC lathes for metal such as the 660x1500 are used across various industries, including:

• Mechanical industry: Production of shafts, sleeves, flanges and precision components.
• Automotive industry: Machining of engine, gearbox and suspension parts.
• Toolmaking industry: Manufacturing of threads, grooves and complex-shaped details.
• Serial and small-batch production: Ideal for mid-series manufacturing and rapid prototyping in R&D facilities.

This machine is an excellent choice for workshops looking for a versatile and reliable CNC lathe.

Standard Equipment

• SIEMENS SINUMERIK 808D control
• Siemens servo drives
• 4-position tool post
• Set of soft jaws
• Manual tailstock
• Cooling system
• Automatic lubrication system for gearbox and guideways
• 24V halogen lighting
• User manual
• CE Declaration of Conformity

Optional Equipment*

• SIEMENS SINUMERIK 828D control
• FANUC Oi-TF control
• GSK control
• Steady rest
• Follow rest
• Tool probe
• Additional soft jaws
• Hard jaws
• Collet chucks
• Finished-part catcher
• Bar feeder
• Cabin mist separator
• Coolant oil separator
• Tool holders
• CAD/CAM software

*The price quoted is for the machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical Specifications

CNC Control Systems – Siemens and Fanuc

CNC Lathe 660x1500 offers advanced CNC control systems such as SIEMENS SINUMERIK 808D, SIEMENS SINUMERIK 828D, and FANUC Oi-TF, providing precision, reliability and user-friendly operation:

SIEMENS SINUMERIK 808D

• Intuitive interface: Simple to operate, ideal for smaller workshops and beginner users.
• Reliability: Durable construction resistant to harsh industrial conditions.
• Cost-efficiency: Perfect for standard turning and milling operations.

SIEMENS SINUMERIK 828D

• High processing power: Enables dynamic machining and handling of complex cycles.
• CAD/CAM integration: Facilitates cooperation with design software.
• Advanced features: Toolpath optimisation and modular function expansion.

FANUC Oi-TF

• Stability: Ensures reliability in serial and continuous production.
• Advanced turning cycles: Ideal for precise machining such as threading and grooving.
• User-friendly interface: Clear layout for faster programming.
