CNC Lathe CORMAK CKT630x4000 SIEMENS SINUMERIK
Our exceptional CNC Lathe CKT630x4000 is the perfect solution for both experienced professionals and those beginning their journey in batch or single-piece production. This series of heavy-duty lathes has been designed to deliver maximum cutting efficiency, ensuring optimal results even under intensive operation.
Thanks to its wide guideways and robust construction, the machine guarantees stability, high precision, and repeatable machining accuracy. It is a reliable tool that performs perfectly in any professional production facility.
Variant
CNC Lathe CORMAK 630x4000 SIEMENS SINUMERIK
CNC Lathe CORMAK CKT630x5000 SIEMENS SINUMERIK
CNC Lathe CORMAK CKT 630x5000 SIEMENS SINUMERIK
CNC Lathe CORMAK CKT 630x6000 SIEMENS SINUMERIK
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€54,058.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
CNC Lathe CKT630x4000 – Professional Precision and Reliability in Metalworking
Why Choose Our Lathe?
- Robust construction: The machine has been designed for durability and resistance to intensive use. Its solid frame ensures reliable operation even during long-term production.
- Precise machining: Advanced turning functions enable accurate machining of components in various shapes and sizes, ensuring the highest level of precision.
- Intuitive operation: A simple and user-friendly control system facilitates operation for both skilled machinists and new CNC users. Reduced programming time increases productivity and operator comfort.
Technical Data – CNC Lathe CKT630x4000
| Control system | Sinumerik 808 |
|---|---|
| Centre distance | 4000 mm |
| Turning diameter over bed | 630 mm |
| Turning diameter over cross slide | 450 mm |
| Bed width | 600 mm |
| Chuck | manual |
| Tailstock | manual |
| Spindle nose | A2-11 |
| Spindle bore | 100 mm |
| Tool post | 4-position (OPTION 6, 8) |
| Spindle speed | 30–800 rpm |
| Maximum X-axis travel | 330 mm |
| Rapid feed X/Z | 6/8 m/min |
| Tailstock quill diameter | 75 mm |
| Maximum quill travel | 250 mm |
| Tailstock taper | MT5 |
| Motor power | 11 kW |
| Weight | 8600 kg |
Available Equipment
- SIEMENS SINUMERIK 808 control (English version)
- SIEMENS servo drives
- Manual 3-jaw chuck
- 4-position tool turret
- Set of soft jaws
- Manual tailstock
- Fixed steady rest
- Coolant system
- Automatic lubrication system for gearbox and guideways
- 24V halogen work light
- User manual
Optional Equipment*
- Available controls: SINUMERIK 828, Fanuc, GSK
- Travelling steady rest
- Hydraulic chuck
- Hydraulic tailstock
- Fixed steady rest
- Tool probe
- Chip conveyor
- Additional soft jaws
- Hard jaws
- Collet holders
- Finished parts gripper
- Bar feeder
- Toolholders
- CAD/CAM software
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
CNC Controls – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF
We offer professional CNC systems from renowned manufacturers Siemens and Fanuc, providing precision, performance and ease of operation. These solutions are ideal for both smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D – Compact CNC Control for Standard Applications
Siemens Sinumerik 808D is a modern and economical CNC control system designed for entry-level lathes and milling machines. It has been created for small and medium enterprises, offering:
- Intuitive operation – a graphical, user-friendly interface that simplifies machine programming and configuration.
- High reliability – durable hardware resistant to challenging workshop conditions.
- Wide compatibility – suitable for machines with basic technological requirements.
- An excellent choice for beginners who want to start working with modern CNC technology.
Siemens Sinumerik 828D – Advanced CNC Control for Demanding Applications
Sinumerik 828D is a professional CNC control system designed for lathes and milling machines that require superior precision and performance. Its key features include:
- High computing power – fast data processing enables dynamic and highly accurate metal cutting operations.
- Comprehensive technological functions – advanced machining cycles, interpolation options, and toolpath optimisation.
- Compact and durable design – built for heavy-duty use in industrial environments.
- Easy automation integration – expandable with additional modules and control options for complex production processes.
- CAD/CAM compatibility – seamless integration with design and production management software.
This control system is an excellent choice for companies seeking high performance and reliability for advanced machining operations.
Fanuc Oi-TF – Stability and Precision in Turning Applications
Fanuc Oi-TF is one of the most popular CNC control systems for lathes, renowned for its reliability and ease of use. It is widely adopted in the metalworking industry thanks to its:
- Exceptional operational stability – consistent performance and precision, even during long production runs.
- Advanced turning functions – supports a wide range of machining cycles, including threading, grooving, drilling and contouring.
- User-friendly interface – clear display and optimised navigation for faster programming and setup.
- Wide compatibility – suitable for integration with various lathe models and configurations.
- Optimised process efficiency – allows enhanced control over machining parameters, reducing production time and material waste.
With the Fanuc Oi-TF system, operators can rely on stable and precise operation, resulting in higher productivity and machining quality.
Choosing the right CNC control is key to achieving optimal machining efficiency and precision. Siemens Sinumerik 808D is ideal for standard applications, Siemens Sinumerik 828D is suited for advanced production needs, while Fanuc Oi-TF guarantees maximum reliability and accuracy in turning operations.
Contact us – our specialists will help you choose the CNC control system best suited to your production requirements!
User Manuals
SIEMENS SINUMERIK 828/840
SIEMENS SINUMERIK 808
With over 20 years of experience in providing industrial machinery and technological solutions, we have established ourselves as a leading supplier for the manufacturing sector.
- 16 years of experience in servicing Siemens CNC control systems.
- Over 15,000 m² of warehouse space housing approximately 12,000 machines and devices ready for immediate delivery.
CORMAK – a Polish brand offering proven, high-quality solutions recommended by professionals for many years. We continuously strive to enhance the standards and performance of our machines.
- Professional warranty and post-warranty service: our engineers possess extensive expertise and training in CNC systems and industrial machinery.
- European safety certification: by choosing CORMAK, you are purchasing from a trusted European-certified Polish manufacturer.
- Expert technical support: our specialists provide comprehensive advice and assistance to help you select the optimal solution for your business. You can always rely on our professional support.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
Serrated Soft Jaws for Lathe Chucks
Serrated soft jaws are designed for precise clamping of workpieces in lathe chucks. Thanks to their soft material structure, they can be pre-machined to match a specific shape or diameter, ensuring perfect fit and repeatability in series production. The serrated connection provides stable seating ...More
Hard Top Jaws SGTm for Lathe Chucks
The SGTm hard top jaws are designed for secure and stable clamping of workpieces during machining. Made of hardened tool steel, they provide excellent wear resistance, making them ideal for demanding production environments. Perfect for applications requiring high clamping force and stability during turning. ...More
16 other products in the same category:
CNC Lathe CORMAK 660x3000 SIEMENS SINUMERIK
Our unique CNC Lathe CORMAK CKT660x3000 is an excellent solution for experienced professionals as well as those beginning their journey in batch and single-piece production. This series of heavy-duty lathes has been designed for efficient metal cutting, with wide guideways and a robust structure ...More

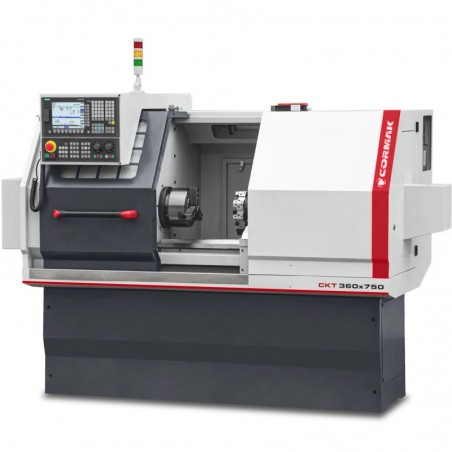

CNC Lathe CORMAK CKT360x750 with Hydraulic Chuck and SIEMENS SINUMERIK
