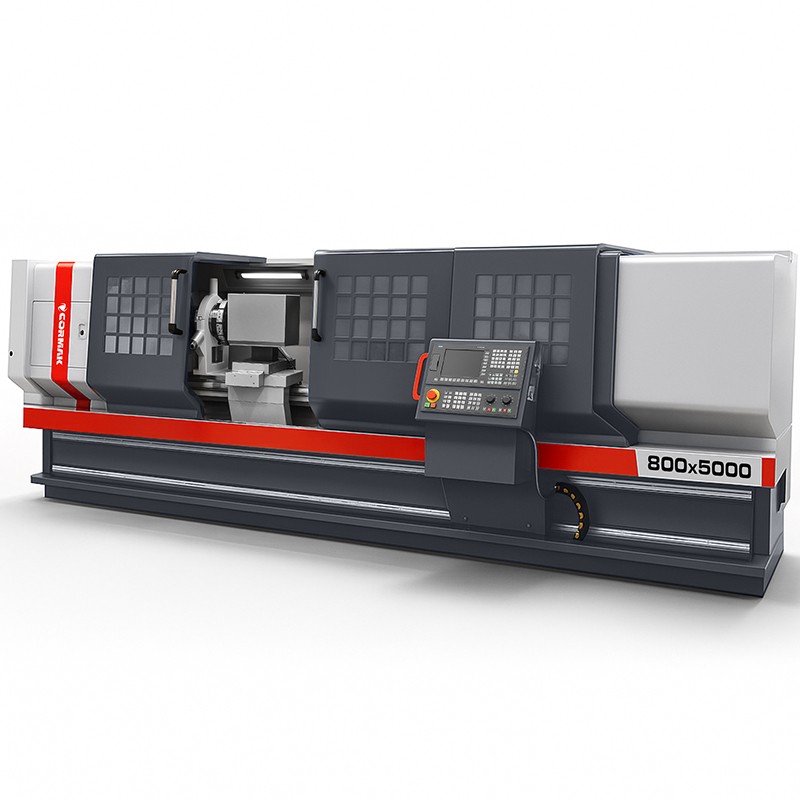

CNC Lathe 800x5000 – Advanced technology for industry

CNC Lathe 800x5000 is a professional numerically controlled machine designed for precise metalworking in demanding industrial applications. Equipped with advanced Siemens and Fanuc control systems, it guarantees reliability, high accuracy and efficiency in both series and individual production.

Main advantages of the CNC Lathe 800x5000

CNC Lathe 800x5000 represents an advanced industrial solution, combining modern technology with practical user benefits. Its rigid structure, high performance and flexible configuration make it the ideal choice for manufacturing facilities with diverse production needs. Key technical parameters, such as the large centre distance and powerful motor, ensure unrivalled versatility in metal machining. Here are the main advantages of the machine:

• Exceptional machining precision: Turning diameter over bed 800 mm and over cross slide 450 mm enable accurate machining of large and complex components, ensuring repeatability of results.
• Large centre distance: The 5000 mm distance between centres allows machining of very long components, making the machine ideal for heavy industry, shipbuilding and railway applications.
• High efficiency: Spindle speed range 30–800 rpm and rapid feed on X/Z axes (6/8 m/min) shorten machining cycles and increase productivity.
• Durable construction: A bed width of 600 mm and total machine weight of 8,900 kg ensure stability when machining heavy workpieces, minimising vibrations.
• Advanced automation: The 4-position turret (expandable to 6 or 8 positions) enables fast tool changes, optimising processes during complex operations.
• Intuitive control: Standard Siemens Sinumerik 808D control, with options for Sinumerik 828D and Fanuc Oi-TF, provides easy programming and operation, even for less experienced users.
• Ergonomics and safety: 24V halogen lighting and a cooling system improve operator comfort, while the rigid design guarantees safe operation.
• Versatility of applications: The machine allows execution of complex operations such as threading, grooving, drilling or surface finishing, thanks to advanced CNC control systems.
• Cost efficiency: The automatic lubrication system for gears and guideways reduces component wear, lowering maintenance costs and extending machine life.
• Configuration flexibility: Extensive optional equipment, including a hydraulic chuck, chip conveyor and CAD/CAM software, enables adaptation to specific production requirements.

Construction and technology

CNC Lathe 800x5000 has been designed for maximum durability and precision under demanding industrial conditions. Its key components ensure reliability and excellent machining quality:

• Rigid bed: The 600 mm bed width guarantees stability when machining heavy parts, minimising deformation and vibration.
• Large spindle bore: A 130 mm through-hole with A2-11 nose enables machining of long and massive components such as shafts or pipes.
• Powerful motor: The 15 kW motor ensures high performance when machining hard materials such as steel, aluminium alloys or cast iron.
• Lubrication system: Automatic lubrication of gears and guideways reduces friction, extending the lifespan of critical components.
• Tool turret: 4-position turret (optionally 6 or 8) allows quick tool changes, improving automation and minimising downtime.
• Manual 3-jaw chuck: Provides secure clamping of workpieces of various shapes, ensuring stability during machining.
• Cooling system: Optimises working conditions for both tools and workpieces, enhancing surface finish and tool life.
• Manual tailstock: The quill with 75 mm diameter and MT5 taper provides stable support for long parts, improving machining precision.

Precision and performance

Industrial Lathe 800x5000 stands out for exceptional accuracy thanks to advanced Siemens Sinumerik and Fanuc Oi-TF control systems. They allow easy programming of complex operations such as threading, grooving, drilling and contour machining. The maximum X-axis travel (330 mm) and rapid feed on X/Z axes (6/8 m/min) ensure outstanding precision and repeatability. The powerful 15 kW motor and rigid design guarantee efficient machining even under heavy loads, resulting in shorter production times and superior part quality.

Applications

CNC Lathe 800x5000 is suitable for a wide range of industrial sectors, offering flexibility and reliability in metalworking. It is particularly recommended for:

• Automotive industry: Production of precision components such as crankshafts, sleeves and gears.
• Machinery industry: Machining of large-scale machine components requiring high accuracy.
• Serial and single-unit production: Versatility in handling both large batches and custom parts.
• Energy sector: Turning of technically demanding components such as turbine parts, shafts and flanges.
• Shipbuilding and railway industries: Machining of very long components such as drive shafts or axles up to 5000 mm in length.

The machine is an ideal choice for production facilities seeking a reliable, precise and versatile metalworking solution.

Technical data – CNC Lathe 800x5000

Standard equipment

• Siemens Sinumerik 808 control system
• Siemens servo drives
• Manual 3-jaw chuck
• 4-position tool turret
• Set of soft jaws
• Manual tailstock
• Fixed steady rest
• Cooling system
• Automatic lubrication system for gears and guides
• 24V halogen lighting

Optional equipment*

• Sinumerik 828, Fanuc, GSK control systems
• Travelling steady rest
• Hydraulic chuck
• Hydraulic tailstock
• Fixed steady rest
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet holders
• Finished part gripper
• Bar feeder
• Toolholders
• CAD/CAM software

*The price quoted refers to the machine only and excludes optional/additional equipment, installation, transport and training — please contact our consultant for more details.

CNC Control Systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF

CNC Lathes from the 800x5000 series are equipped with renowned Siemens Sinumerik and Fanuc Oi-TF control systems, providing precision, reliability and ease of operation. Choosing the right control system allows the machine to be adapted to specific production requirements.

Siemens Sinumerik 808D

Siemens Sinumerik 808D is an economical CNC control system for entry-level users, offering an intuitive interface, high reliability and compatibility with standard machines.

Siemens Sinumerik 828D

Siemens Sinumerik 828D is an advanced system for demanding processes, featuring high computing power, extended machining cycles and full CAD/CAM integration capabilities.

Fanuc Oi-TF

Fanuc Oi-TF provides exceptional stability and precision in turning operations, with an intuitive interface and advanced turning functions — ideal for serial production.

Trust CORMAK’s experience

With over 20 years of experience in delivering industrial machinery, CORMAK offers reliable solutions and professional service. Our CNC lathes meet European safety standards and are supported by a qualified team of engineers.

• 16 years of experience in servicing Siemens CNC control systems.
• 15,000 m² warehouse space with around 12,000 machines available.
• Professional technical advice in selecting machines and industrial solutions.
