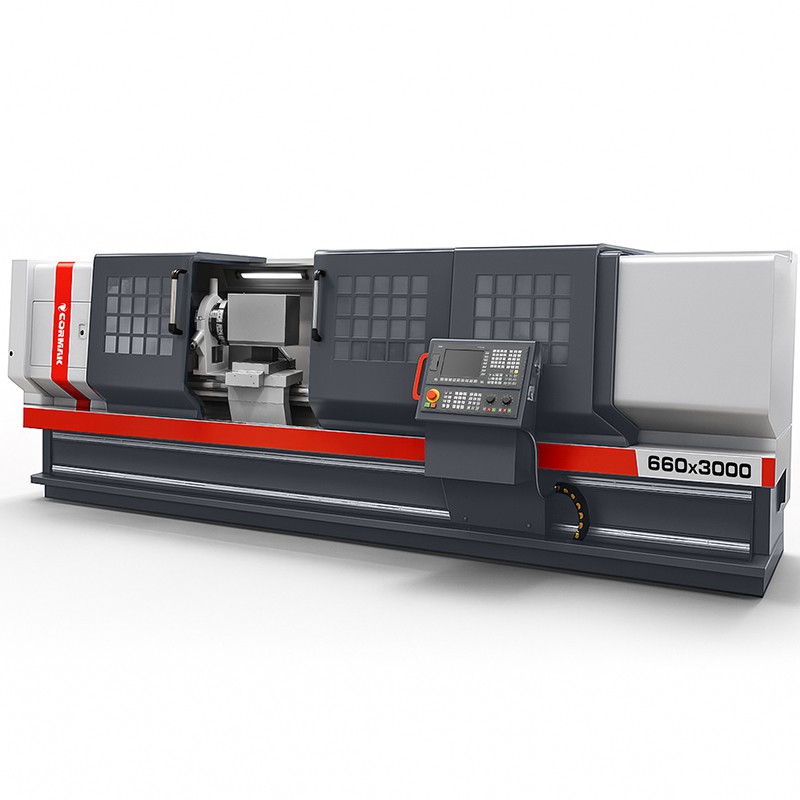

CNC Lathe 660x3000 – Precision and Reliability in Metalworking

CNC Lathe 660x3000 is an advanced numerically controlled machine designed for precision machining of metal components in demanding industrial environments. Equipped with Siemens Sinumerik 808D control and a robust construction, it ensures exceptional accuracy, efficiency and reliability — ideal for large-scale production facilities.

Main Advantages of the CNC Lathe 660x3000

The CNC metal lathe 660x3000 is a professional industrial solution combining advanced technology with solid construction, dedicated to workshops requiring top-quality machining. As an industrial lathe, it enables complex operations such as external, internal and spherical turning, threading, drilling, grooving and contouring, ensuring excellent surface quality. Key advantages include:

• Exceptional machining precision: Maximum turning diameter over bed 660 mm and over carriage 450 mm with a maximum workpiece length of 3000 mm, guaranteeing superior finish quality.
• Versatile spindle: Speed range of 30–1000 rpm, spindle bore 86 mm and spindle nose A2-11 allow machining a wide variety of materials, from steel to light alloys.
• Intuitive control: Siemens Sinumerik 808D system in English with Siemens servo drives provides an operator-friendly mode for conventional users, facilitating transition to CNC technology.
• Rigid construction: Net weight of 5900 kg ensures stability when machining long and heavy components, minimising vibration.
• Tooling efficiency: 4-position turret with coolant supporting 8 tools allows rapid tool change and shorter production cycles.
• Quick setup: Enables easy tool alignment, zero-point setting and correction without program entry, ideal for single-part production.
• Enhanced safety: Controlled motion and speed limitation ensure precise and safe machine handling, reducing the risk of operator error.
• Durable components: Automatic lubrication of gears and guideways minimises wear and extends the machine’s lifespan.
• Optimised cooling: Head-integrated cooling system ensures thermal stability, protecting tools and parts during heavy-duty machining.
• Wide range of applications: Designed for precision turning in mechanical, automotive and toolmaking industries — suitable for both batch and small-series production.
• Energy efficiency: 11kW main motor offers high performance with low energy consumption.
• Integration with technological cycles: Supports turning, tapering, threading and drilling cycles requiring only basic parameter input — no G-code knowledge needed.
• Advanced automation: Options such as hydraulic chuck, hydraulic tailstock, bar feeder and chip conveyor enhance production efficiency.
• Customisation options: Optional configurations including Fanuc Oi-TF, Sinumerik 828D, tool probe and CAD/CAM software allow machine adaptation to specific requirements.
• European safety standards: CE certification confirms compliance with strict European occupational safety norms.

Construction and Technology of the CNC Lathe 660x3000

The industrial CNC lathe 660x3000 has been designed for reliability and precision in demanding production conditions. The main construction elements include:

• Solid machine bed: A rigid 5900 kg structure minimises vibrations and ensures stability when machining long workpieces.
• High-performance spindle: Bore 86 mm, speed 30–1000 rpm and spindle nose A2-11 enable versatile part machining.
• Turret head: 4-position with coolant, supporting 8 tools, ensures fast tool change and flexibility.
• Hydraulic tailstock: Quill diameter 75 mm, taper MT5, with maximum travel of 250 mm for precise support of long parts.
• Hydraulic 3-jaw chuck: Provides secure clamping, improving automation and safety.
• Siemens servo drives: Guarantee smooth motion and excellent positioning accuracy.
• Automatic lubrication system: Central lubrication for gears and guideways extends service life and minimises maintenance needs.
• Cooling system: Integrated in the head, maintains optimal temperature, improving machining quality and tool longevity.
• 24V halogen lighting: Provides perfect illumination of the workspace for enhanced precision and safety.

Precision and Productivity

CNC Lathe 660x3000 ensures exceptional accuracy thanks to the Siemens Sinumerik 808D control and Siemens servo drives. Advanced fixed cycles such as cross-turning, tapering, threading, grooving and contouring simplify programming and reduce machining time. Rapid traverse speeds in X/Z axes (6/8 m/min) and machining capacity up to Ø660 mm diameter and 3000 mm length guarantee top efficiency and precision.

Applications of the CNC Metal Lathe 660x3000

CNC metal lathes such as the 660x3000 are used across various industrial sectors, including:

• Mechanical industry: Production of shafts, bushings, flanges and precision components of extended length.
• Automotive industry: Machining of engine, transmission and suspension parts.
• Toolmaking industry: Manufacturing of threads, grooves and complex-shaped components.
• Batch and small-scale production: Perfect for medium-scale production and fast prototyping in R&D facilities.

The machine is an excellent choice for workshops seeking a versatile and reliable CNC lathe for machining long metal components.

Standard Equipment

• Siemens Sinumerik 808D control in English
• Siemens servo drives
• Hydraulic 3-jaw lathe chuck
• 4-position turret head with coolant
• Set of soft jaws
• Hydraulic tailstock
• Fixed steady rest
• Cooling system
• Automatic lubrication system for gears and guideways
• 24V halogen lighting
• CE certification

Optional Equipment*

• Siemens Sinumerik 828D control
• Fanuc Oi-TF control
• GSK control
• Travelling steady rest
• Hydraulic chuck
• Hydraulic tailstock
• Fixed steady rest
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet chucks
• Finished part catcher
• Bar feeder
• Tool holders
• CAD/CAM software

*The price quoted refers to the machine only, excluding optional or additional equipment, installation, transport and training — please contact our consultant for more details.

Technical Specifications

CNC Control Systems – Siemens and Fanuc

The CNC Lathe 660x3000 offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, providing precision, reliability and ease of use:

Siemens Sinumerik 808D

• Intuitive interface: Easy to operate, ideal for smaller workshops and beginners.
• Reliability: Durable design resistant to harsh industrial environments.
• Cost-effectiveness: Dedicated to standard turning and milling applications.

Siemens Sinumerik 828D

• High processing power: Enables dynamic machining and management of complex cycles.
• CAD/CAM integration: Simplifies communication with design software.
• Advanced features: Toolpath optimisation and upgrade options for additional modules.

Fanuc Oi-TF

• Stability: Proven reliability for serial and long-term production.
• Advanced turning cycles: Ideal for precision operations such as threading and grooving.
• Intuitive operation: Clear interface accelerating programming and setup.
