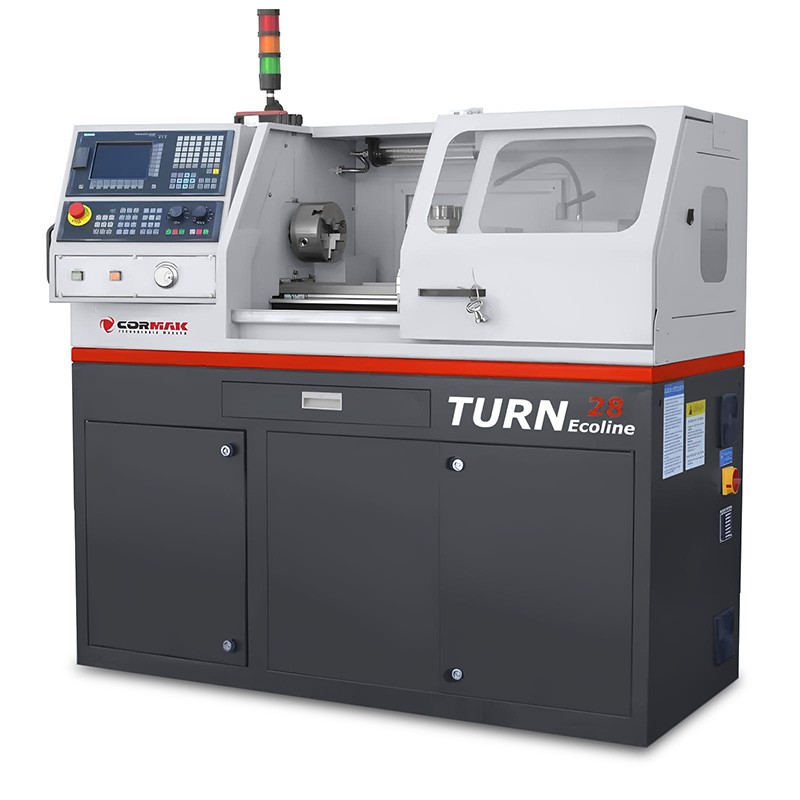

CNC Metal Lathe 280x700 – Precision and Reliability in Machining

CNC Metal Lathe 280x700 is an advanced numerically controlled lathe designed for precision machining of metal components in small and medium-sized production facilities. Equipped with Siemens Sinumerik 808D control, it offers outstanding accuracy and operational efficiency.

Main Advantages of the CNC Lathe 280x700

CNC Metal Lathe 280x700 combines a compact design with advanced technology, ensuring high precision and versatility in metal cutting. Dedicated to professionals, it is the perfect choice for companies seeking reliable CNC lathes for metal with optimal parameters. Key advantages include:

• High machining precision: Positioning accuracy of axis X 0.03mm and axis Z 0.032mm with repeatability of 0.13mm ensures excellent surface finish quality.
• Versatile spindle: Speed range 30–4000rpm with forward/reverse rotation allows machining of various materials and threads (metric 0.2–3mm and inch 8–56TPI).
• Compact construction: Dimensions 1855x805x1685mm and weight 420kg make it easy to fit into smaller workshops.
• Efficient control: Siemens Sinumerik 808D system with an intuitive interface optimises programming and operation, increasing productivity.
• Component durability: Induction-hardened bed guideways and an automatic lubrication system reduce wear, extending machine lifespan.
• Effective cooling: An efficient cooling system maintains thermal stability, protecting tools and parts during intensive machining.
• Versatile applications: Ideal for turning parts with a diameter of up to 280mm and length of 700mm, including threading, grooving and other turning operations.
• Economic operation: Low energy consumption thanks to the 1.5kW motor and automatic systems reducing maintenance costs.

Construction and Technology of the CNC Lathe 280x700

Industrial CNC Lathe 280x700 is engineered for reliability and precision in demanding production environments. Key structural components include:

• Induction-hardened bed guideways: Ensure smooth movement and high precision during machining, minimising vibration.
• Flexible spindle: With a 26mm bore, MT4 taper and speed range of 30–4000rpm, it enables multidirectional operations.
• Automatic lubrication system: Centralised lubrication ensures all key components are properly maintained, reducing wear and failure risk.
• Efficient cooling system: Maintains optimal temperature of tools and parts for continuous production and superior surface finish.
• 4-position tool post: (optional 6-position) allows quick tool changes, improving operational efficiency.
• Tailstock with MT2 taper: Provides precise support for long workpieces, improving machining stability.
• Rigid design: Compact frame weighing 420kg provides excellent stability for turning diameters up to 280mm.

Precision and Performance

Numerical Lathe CNC 280x700 ensures high precision through Siemens Sinumerik 808D control, offering intuitive operation and optimised tool paths. Positioning accuracy (0.03mm X axis, 0.032mm Z axis) and rapid feeds (3000mm/min X, 2000mm/min Z) allow efficient machining of complex parts while minimising cycle time.

Applications of the CNC Metal Lathe 280x700

CNC metal lathes like the 280x700 are used in various industrial sectors, including:

• Mechanical industry: Production of precision components such as shafts, sleeves and fittings.
• Automotive industry: Machining of engine parts, drive systems and suspension components.
• Tool industry: Thread cutting (metric and inch) and machining of complex shapes.
• Small and medium workshops: Perfect for prototyping and serial production of parts up to 280mm diameter.

The machine is an excellent choice for facilities requiring precision and reliability in a compact format.

Standard Equipment

• Control system: SIEMENS SINUMERIK 808 Advanced
• 4-position tool post
• Induction-hardened bed guideways
• Automatic central lubrication system
• Cooling system
• Spindle rotation right/left
• Tailstock with MT2 taper
• Work area lighting

Optional Equipment*

• Control system Siemens Sinumerik 828D or Fanuc Oi-TF
• 6-position tool post
• Through-spindle cooling
• Workpiece measuring probe
• Oil and coolant separator
• Chip conveyor

*The price shown applies to the base machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for details.

Technical Specifications

CNC Control Systems – Siemens and Fanuc

CNC Lathe 280x700 features advanced CNC systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, offering precision, reliability and ease of operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Easy to use, ideal for small workshops and beginners.
• Reliability: Robust construction resistant to demanding industrial conditions.
• Cost-effectiveness: Perfect for basic turning and milling applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and complex cycles.
• CAD/CAM integration: Simplifies design cooperation.
• Advanced features: Optimised tool paths and modular upgrade options.

Fanuc Oi-TF

• Stability: Reliable in long-term serial production.
• Advanced turning cycles: Ideal for threading and grooving precision work.
• Intuitive operation: Clear interface enables faster programming.
