Metal Bandsaw CORMAK HBS320 – precision and cutting reliability

The CORMAK HBS320 metal bandsaw is a high-performance and professional solution for workshops and industrial facilities that need a dependable machine for precise cutting of pipes, profiles and solid metal materials. The solid construction, wide cutting angle range and the possibility of integration with feeding systems make it a versatile metal cutting bandsaw suitable for both production and service operations.

Main features

• Cutting angle from -45° to +60° – allows double-sided mitre cuts without repositioning the material.
• Powerful 1.5 kW motor – delivers high torque and stable operation even when cutting hard materials.
• Cast-iron cutting arm – vibration- and load-resistant, ensuring accuracy and long service life.
• Precision blade guides – equipped with bearings and carbide inserts to extend blade lifespan.
• Safe operation – blade guards and micro-switches protect the operator and stop the drive when necessary.
• Cooling system with electric pump – enhances cutting efficiency and facilitates chip removal.

Design and technology

The machine’s structure is based on a welded steel frame and a stable base with a coolant tray. The cast-iron arm provides rigidity for the entire cutting assembly. Cutting is performed using a gravity feed controlled by an oil-flow hydraulic cylinder. The quick-lock vice with an adjustable base ensures secure material clamping. The user can choose between two blade speeds: 44 or 88 m/min and stepless adjustment of the arm lowering rate.

Cutting precision and performance

Thanks to the robust blade guiding system, the bandsaw maintains high cutting accuracy even during intensive operation. The cooling system with a separate tank and pump lowers the cutting temperature and reduces blade wear. Automatic drive switch-off after cutting completion prevents unnecessary wear of the drive components.

Applications

The CORMAK HBS320 bandsaw for pipes and profiles is designed for cutting structural, stainless and tool steels, as well as copper, aluminium and plastics. It is ideal for locksmith shops, tool rooms, steel fabrication companies and small-scale production workshops.

Standard equipment

• Quick-action vice
• Hydraulic cylinder with feed control
• Coolant pump with tray and chip drain
• Two-speed blade drive
• Micro-switch safety system

Optional equipment

• Roller table extension

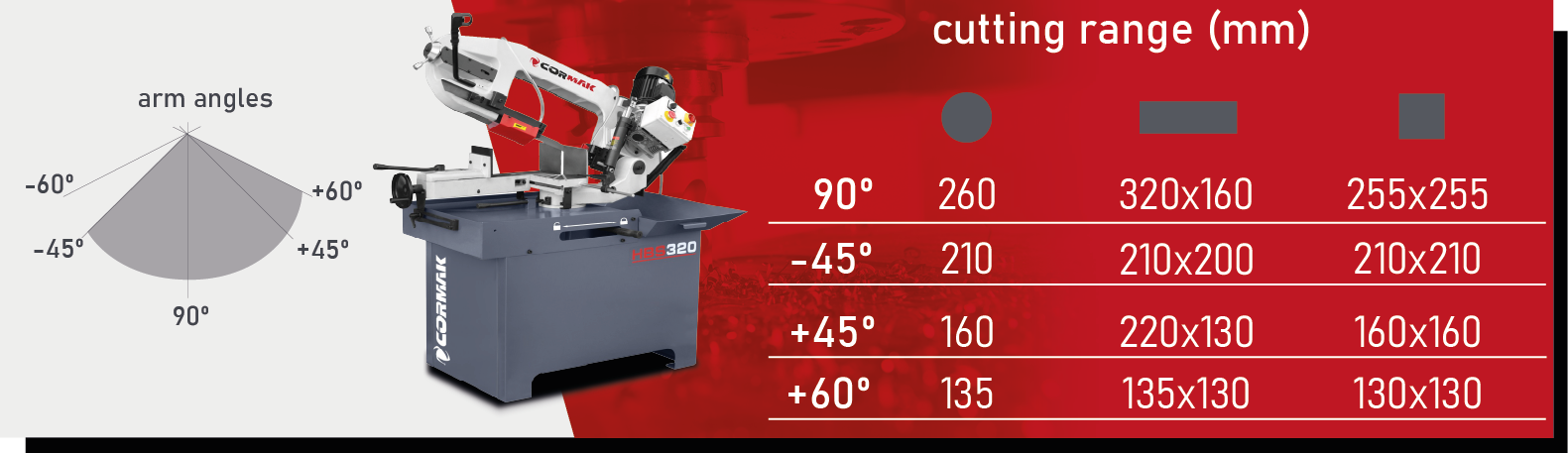

Technical data

Choose the CORMAK HBS320 metal bandsaw and improve both efficiency and precision in your cutting operations. Trust the proven quality and reliability of CORMAK machines!
