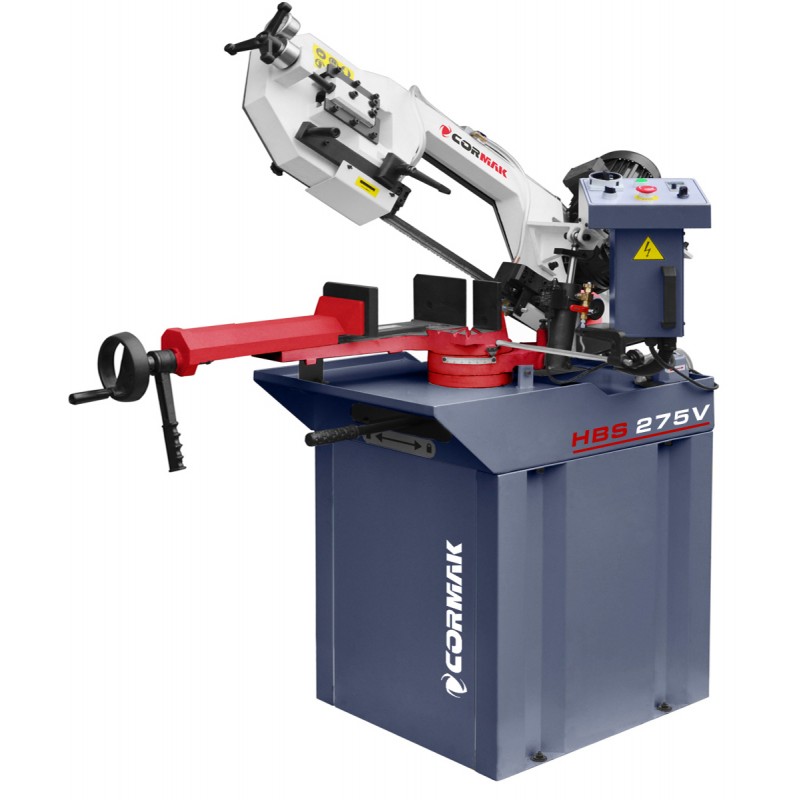

A professional, powerful and efficient metal bandsaw with a swivelling arm in the range of 0°–60°. The model is equipped with a dial gauge tensometer and carbide blade guides. Additionally, the saw offers stepless blade speed control, making it ideal for cutting non-ferrous metals. The infinitely variable cutting speed adjustment allows full utilisation of the saw’s capabilities.
The control panel is located next to the arm. The drive from the electric motor to the driving wheel of the blade is transmitted through a motor with a worm gearbox. The cutting blade is tensioned on two cast-iron wheels using a manual tensioner and guided in adjustable rolling and sliding carbide guides.
The entire belt transmission is enclosed in a hinged cover attached to the housing. The base is designed as a rigid welded steel frame with a separate coolant tank and an electric pump inside.
The control panel is mounted on a separate arm. During cutting, the main cutting motion is the movement of the saw blade. The arm lowering speed (cutting speed) is regulated by a hydraulic cylinder.
Safety is ensured by blade guards and micro-switches that stop the motor after the cutting cycle or when any guard is opened. Additional protection automatically switches off the saw in the event of blade breakage.
| BLADE SIZE |
2450 x 27 x 0.9 mm |
| DRIVING WHEEL DIAMETER | 300 mm |
| GEAR RATIO | 36:1 |
| BLADE TENSION | mechanical (manual) |
| BLADE SPEED | 0–90 m/min (stepless adjustment) |
| ARM LOWERING CONTROL | stepless – hydraulic cylinder |
| VICE BASE HEIGHT | 900 mm |
| POWER SUPPLY | 3-phase 400 V |
| MAIN MOTOR POWER | 1.5 kW |
| COOLANT PUMP MOTOR POWER | 0.045 kW |
| PACKAGING DIMENSIONS | 1350 x 580 x 970 mm |
| WEIGHT | 235 kg |
|
Angle |
|
|
|
| 0º | Ø220 | 260 x 140 | 200 x 200 |
| 30º | Ø190 | 200 x 140 | 180 x 180 |
| 45º | Ø160 | 160 x 140 | 160 x 160 |
| 60º | Ø100 | 120 x 100 | 100 x 100 |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
