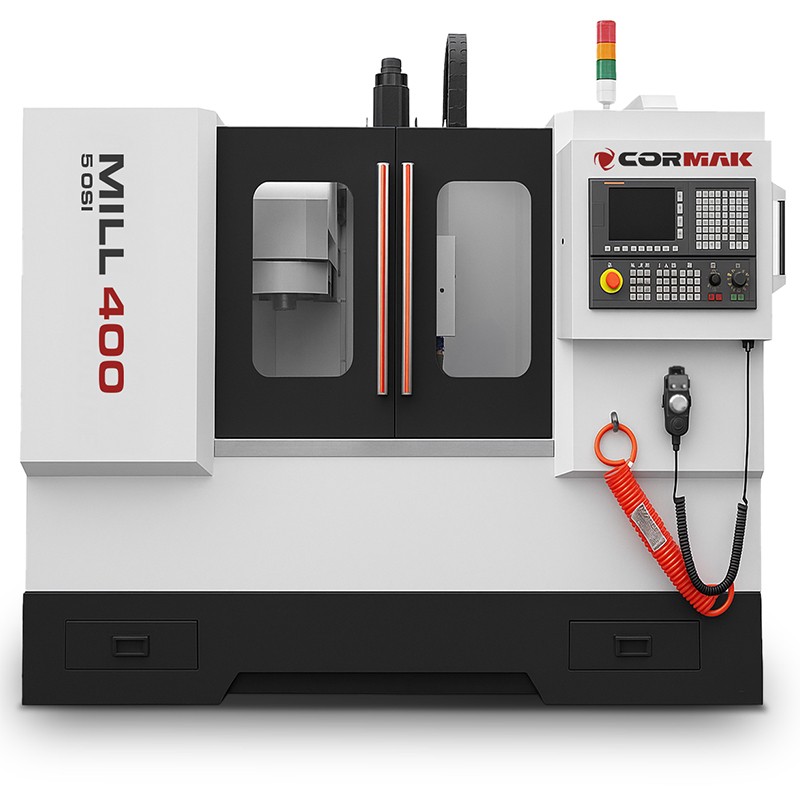

Machining Centre MILL 400 5 axis – precision and efficiency in micromachining

Machining Centre MILL 400 5 axis is a compact, 5-axis vertical CNC machining centre designed for precision machining of small and complex parts in a single setup. Equipped with a tilting-rotary table Ø100 mm and CNC control, it provides maximum accuracy and productivity, a machine designed for precision machining of aluminium and other soft materials

Key advantages of the MILL 400 5-axis machining centre

Vertical machining centre MILL 400 5 axis an advanced solution for industries requiring precision and complex part geometries. This is an ideal CNC machining centre for companies looking for a compact machine with high production capability and flexibility, a machine designed for precision machining of aluminium and other soft materials Key benefits include:

• Advanced 5-axis machining: Positioning accuracy ±0.05 mm and repeatability ±0.03 mm, thanks to the tilting-rotary table Ø100 mm with B axis (-110° to +30°) and C (continuous 360° rotation), enable machining of complex parts in a single setup.
• Compact and rigid design: Minimises vibration, ensuring stability during precision machining of parts weighing up to 20 kg.
• High spindle performance: Spindle speed 8000 rpm (option* up to 12000 rpm) with BT30 taper (option* BT40) allows efficient cutting of metals and plastics.
• Process automation: 10-position tool magazine with automatic tool change speeds up operations, increasing productivity.
• Ergonomics and safety: Sealed enclosure and an automatic lubrication system create a safe and efficient working environment.
• Versatility of applications: Dedicated to micromachining in industries such as medical, electronics or watchmaking.

Design and technology of the MILL 400 5-axis machining centre

Metal milling centre MILL 400 5 axis has been designed for reliability and precision in demanding production environments. Key structural components include:

• Rigid machine body: Compact design made from high-quality materials ensures stability and minimises vibration during machining.
• Tilting-rotary table Ø100 mm: Enables full 5-axis machining with B-axis range -110° to +30° and C axis 360°, ideal for precision parts.
• High-speed spindle: Spindle 6000 rpm with BT30 taper (option* BT40) and power 2.2 kW ensures efficient cutting.
• Linear guides: High-quality guides on axes X (400 mm), Y (250 mm), Z (380 mm) ensure smooth motion and accuracy.
• Tool magazine: 10-position tool magazine speeds up production processes thanks to automatic tool change.
• Automatic lubrication system: Central lubrication system reduces component wear, extending machine service life.
• Sealed enclosure: Protects against contamination and ensures operator safety.
• Pneumatic system: Supports precision operations and automatic machine functions.

Precision and productivity

CNC machining centre MILL 400 5 axis offers exceptional precision thanks to CNC 5-axis control. Positioning accuracy ±0.05mm and repeatability ±0.03 mm enable machining of parts with complex shapes with minimal deviations. Rapid feed 6/5/4 m/min and toolpath optimisation shorten the production cycle time.

Applications of the MILL 400 5-axis vertical machining centre

Vertical machining centres such as the MILL 400 5 axis are used in industries requiring the highest precision, including:

• Medical industry: Production of implants, surgical instruments and prosthetic components.
• Watchmaking industry: Machining microcomponents of watch mechanisms.
• Electronics industry: Manufacturing precision parts for electronic devices.
• Micromechanics: Prototyping and production of small moulds, electrodes and inserts.

The machine is ideal for workshops specialising in precision micromachining and prototyping, a machine designed for precision machining of aluminium and other soft materials

Standard equipment

• CNC control system
• Tilting-rotary table Ø100 mm
• Spindle 8000 rpm with BT30 taper
• 10-position tool magazine
• 3-colour alarm lights
• Work area lighting
• Sealed enclosure
• Automatic lubrication system
• Pneumatic system

Optional equipment*

• Siemens Sinumerik 828D control system
• Spindle 10000 or 12000 rpm
• BT40 spindle taper
• Through-spindle coolant (20 bar or 40 bar)
• 4th axis
• Belt chip conveyor with container
• Oil separator
• Automatic doors
• Renishaw TS27R tool setter probe
• Renishaw OMP60 workpiece probe

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical parameters

CNC Control Systems – Siemens and Fanuc

The MILL 400 5-Axis Machining Centre offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, providing precision, reliability and intuitive operation:

Siemens Sinumerik 808D

• Intuitive interface: Simple and user-friendly, ideal for small workshops and beginner operators.
• Reliability: Sturdy construction resistant to harsh industrial environments.
• Efficiency: Designed for basic milling and turning applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and execution of complex cycles.
• CAD/CAM integration: Simplifies communication with design and CAM software.
• Advanced functions: Toolpath optimisation and modular expandability.

Fanuc Oi-TF

• Stability: Proven reliability for continuous and serial production.
• Advanced turning cycles: Ideal for precise cutting operations.
• Intuitive operation: Clear graphical interface speeds up programming and setup.
