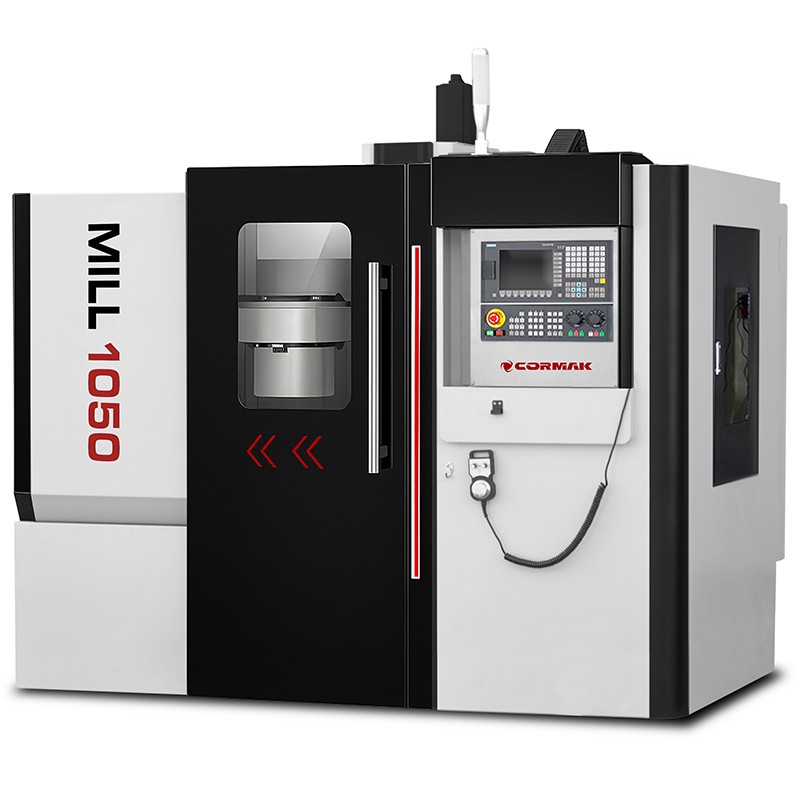

MILL 1050 Machining Centre – precision and performance in CNC machining

MILL 1050 machining centre is an advanced vertical CNC machining centre designed for precise and efficient metalworking in demanding industrial applications. Equipped with modern technologies and a robust construction, it ensures reliability and high-quality components, meeting the expectations of professionals.

Main advantages of the MILL 1050 machining centre

MILL 1050 vertical machining centre stands out with advanced technological solutions that provide an advantage in the production of precision components. This machine is an ideal choice for companies seeking CNC machining centres that combine high precision, durability and efficiency. Key benefits include:

• Machining precision: Thanks to top-quality linear guideways and precision ball screws, the machine achieves positioning accuracy of 0.006 mm, ideal for components with complex geometries.
• Structural stability: The massive cast iron body weighing 5800 kg minimises vibration, ensuring reliability when machining components weighing up to 500 kg.
• High performance: A spindle with 5.5 kW power (option* 7.5 kW) and speeds up to 8000 rpm (option* 12,000 rpm) as well as rapid traverse of 24/24/12 m/min reduce production cycle time.
• Operator safety: The enclosed working chamber protects against dust and chips, ensuring a safe working environment.
• Configuration versatility: The possibility of expansion with advanced control systems (Siemens 828D, Fanuc Oi-TF), a 4th axis and through-spindle coolant allows the machine to be tailored to specific production needs.

Construction and technology of the MILL 1050 machining centre

MILL 1050 metal milling centre has been designed for maximum durability and precision in demanding industrial conditions. Key components include:

• Massive cast iron body: Weighing 5800 kg, it ensures excellent rigidity and vibration reduction, essential for machining hard materials.
• Linear guideways: High-quality guideways in the X, Y and Z axes guarantee smooth movement and precision at rapid traverse of 24 m/min.
• BT40 spindle: With 5.5 kW power (option* 7.5 kW) and speeds up to 8000 rpm, ensures efficient cutting performance.
• Ball screws: Precision screws in three axes ensure high accuracy and repeatability of movement.
• Automatic lubrication system: Minimises component wear, extending machine service life.
• Tool magazine: 16-position magazine (with 24-position option*) enables quick tool changes, increasing process efficiency.

Precision and performance

CNC machining centre MILL 1050 ensures high precision thanks to advanced technological solutions. Positioning accuracy (0.006 mm) and rapid traverse (24/24/12 m/min) enable efficient machining of components with complex shapes. Advanced control systems such as Siemens Sinumerik or Fanuc Oi-TF optimise tool paths, reducing production time and minimising errors.

Applications of the MILL 1050 vertical machining centre

Vertical machining centres such as MILL 1050 are used in many industrial sectors, including:

• Automotive industry: Production of precision components such as engine parts, transmission elements and suspension systems.
• Aerospace industry: Machining of parts requiring high tolerances, e.g. turbine components or structural elements.
• Machine building: Manufacturing of components for industrial equipment and precision tools.
• Toolmaking industry: Production of injection moulds, dies and other high-precision components.

The machine is ideal for medium and large manufacturing plants that focus on high quality and efficiency.

Standard equipment

• Control system SIEMENS SINUMERIK 808 Advanced with 2-year warranty
• 8000 rpm spindle
• 16-position tool magazine
• 3-colour signal tower light
• Working area lighting
• Closed cooling system
• Fully enclosed guarding
• Automatic lubrication system
• Pneumatic system

Optional equipment

• Siemens Sinumerik 808D, 828D or Fanuc Oi-TF control systems
• 12,000 rpm spindle
• Through-spindle coolant
• Horizontal tool magazine (24 positions)
• Chip conveyor
• Tool measurement probe
• Workpiece measurement probe
• 4th rotary axis

Technical specifications

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

CNC Control Systems – Siemens and Fanuc

The MILL1050 machining centre offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, providing precision, reliability and intuitive operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Easy to operate, ideal for smaller workshops and beginners.
• Reliability: Durable design resistant to harsh industrial environments.
• Cost-effective: Perfect for basic milling and turning applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and execution of complex cycles.
• CAD/CAM integration: Ensures seamless cooperation with design and production systems.
• Advanced features: Tool-path optimisation and expansion capabilities for process control.

Fanuc Oi-TF

• Stability: Reliable performance in serial and long-term production.
• Advanced turning cycles: Perfect for precision cutting operations.
• Intuitive operation: Clear interface for fast programming and easy control.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Trust CORMAK’s Experience

With over 20 years of experience in supplying industrial machinery, CORMAK provides reliable machining centres and professional technical support. All our machines meet European safety standards, ensuring continuous and safe production. Contact us to learn more!
