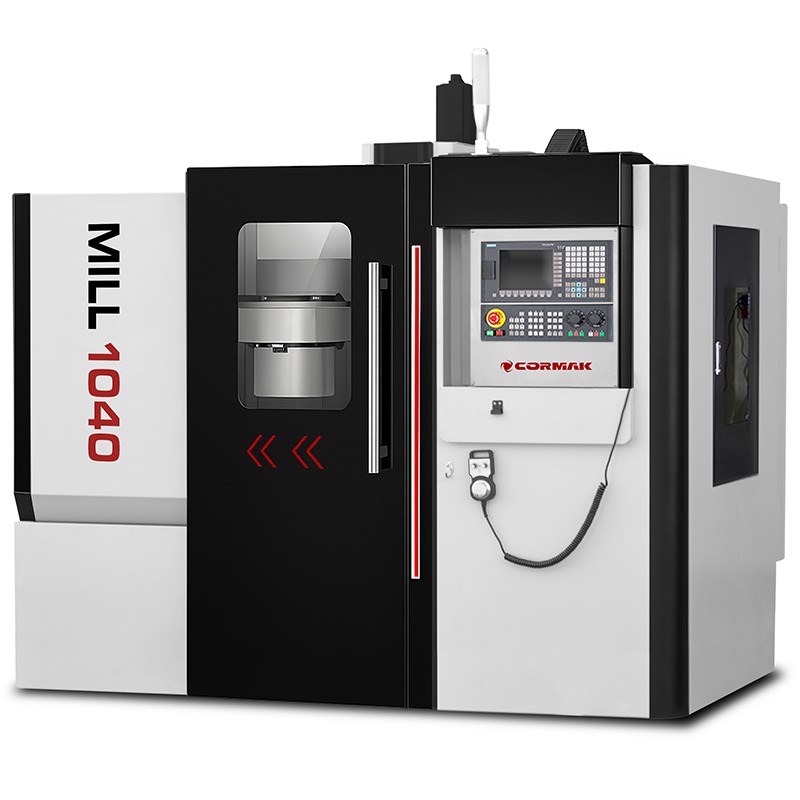

MILL 1040 Machining Centre – Precision and Reliability in CNC Machining

The MILL 1040 machining centre is an advanced vertical CNC machining centre designed for precise and efficient metalworking. Equipped with modern technologies and a solid construction, it ensures reliability and high-quality component finishing for a variety of industrial applications.

Main Advantages of the MILL 1040 Machining Centre

The vertical machining centre MILL 1040 combines advanced technology with robust design, providing an advantage in demanding production processes. This machine is an ideal choice for companies looking for CNC machining centres that offer precision, productivity, and durability. Key benefits include:

• High machining precision: With premium linear guides and precision ball screws, the machine achieves a positioning accuracy of 0.02 mm, perfect for parts with complex geometries.
• Structural stability: The massive cast-iron body ensures excellent rigidity, minimising vibration even when machining parts weighing up to 300 kg.
• Work efficiency: The 7.5 kW spindle with speeds up to 8000 rpm (option 10,000 rpm) and servo drives deliver dynamic machining and shorter cycle times.
• Operator safety: The hermetically sealed working chamber protects against dust and chips, ensuring a safe and clean work environment.
• Configuration flexibility: Expandable with advanced CNC control systems (Siemens 828D, Fanuc Oi-TF) and options such as a 4th axis or through-spindle coolant for tailored functionality.

Construction and Technology of the MILL 1040 Machining Centre

The MILL 1040 milling centre for metalworking is designed for maximum durability and precision under demanding industrial conditions. Key components include:

• Heavy cast-iron body: Ensures excellent stability and vibration reduction, crucial for machining hard materials.
• Linear guides: High-quality guides in the X, Y, and Z axes provide smooth movement and precision with a rapid feed of 24 m/min.
• BT40 spindle: With 7.5 kW of power and speeds up to 8000 rpm (option 10,000 rpm), it ensures efficient cutting performance.
• Ball screws: Precision screws on all three axes ensure high accuracy and repeatability of movement.
• Automatic lubrication system: Minimises wear and extends the machine’s lifespan.
• Tool magazine: A 16-position magazine (optional 24-position) allows quick tool changes in approximately 8 seconds.

Precision and Work Efficiency

The CNC Machining Centre MILL 1040 guarantees high accuracy thanks to advanced technological solutions. The positioning accuracy (0.02 mm) and rapid feed rate (24 m/min for X and Y axes, 20 m/min for Z) allow for efficient machining of complex parts. Advanced control systems such as Siemens Sinumerik or Fanuc Oi-TF optimise tool paths, reducing production time and eliminating errors.

Applications of the MILL 1040 Vertical Machining Centre

Vertical machining centres such as the MILL 1040 are used across multiple industries, including:

• Automotive industry: Manufacturing precision components such as engine parts, gears, and suspension systems.
• Aerospace industry: Machining of high-tolerance components such as turbine parts and structural elements.
• Machine building: Production of parts for industrial equipment and precision tools.
• Toolmaking industry: Manufacture of injection moulds, dies, and other high-precision components.

This machine is ideal for small and medium-sized manufacturers seeking to increase productivity while maintaining the highest quality standards.

Standard Equipment

• Control system SIEMENS SINUMERIK 808 Advanced with 2-year warranty
• Spindle 8000 rpm
• 16-position tool magazine
• Three-colour alarm lights
• Work area lighting
• Closed cooling system
• Sealed enclosure
• Automatic lubrication system
• Pneumatic system

Optional Equipment*

• Control systems Siemens Sinumerik 808D, 828D or Fanuc Oi-TF
• Spindle 12,000 rpm
• Through-spindle coolant
• Horizontal tool magazine (24 positions)
• Chip conveyor
• Tool measuring probe
• Workpiece measuring probe
• 4th rotary axis

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical Parameters

CNC Control Systems – Siemens and Fanuc

The MILL 1040 machining centre offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, ensuring precision, reliability and user-friendly operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Easy to use, ideal for smaller workshops and beginners.
• Reliability: Robust design resistant to demanding industrial conditions.
• Cost-effectiveness: Dedicated to basic milling and turning applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and supports complex cycles.
• CAD/CAM integration: Facilitates cooperation with design and production software.
• Advanced functions: Tool-path optimisation and expansion possibilities with additional modules.

Fanuc Oi-TF

• Stability: Reliable operation during serial and long-term production.
• Advanced turning cycles: Ideal for precision cutting operations.
• Intuitive control: A clear and logical interface enables quick programming.
