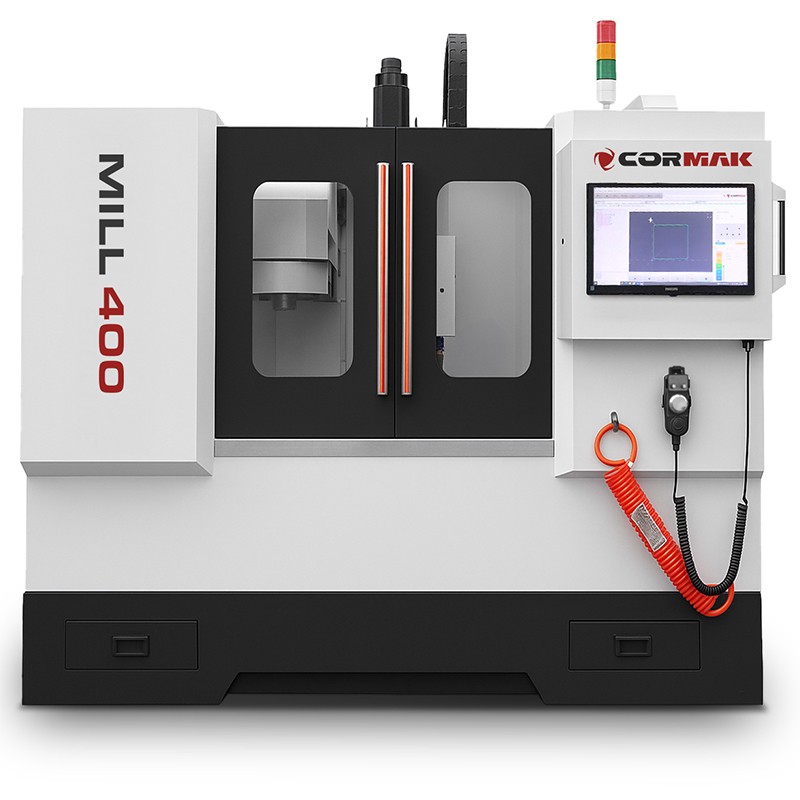

CNC Machining Centre CORMAK MILL400 800x260

Reduced price

CNC MILL400 machining centres have been designed based on proven components ensuring long-term reliability. The massive machine body provides efficient and precise machining. The sealed working enclosure ensures safety and cleanliness at the workplace. The hardened table surface allows workpieces to be clamped without loading the mechanical structural elements. Each machine in this series is equipped with an efficient cooling system ensuring optimal cutting conditions.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

~~€23,000.00~~

€21,431.75

The price has not changed

Product available on request. Please contact our sales department.

Last items in stock

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Vertical CNC machining centre for precision metalworking

Cormak MILL 400 800X260 with CNC control is a modern vertical CNC machining centre, designed for precise and efficient metal cutting operations. The machine combines a rigid construction, high positioning accuracy and intuitive CNC control, making it ideal for both single-piece and series production.

It is an ideal solution for manufacturing plants, toolrooms and CNC workshops that expect reliability, repeatability and technological flexibility.

CNC control – intuitive operation and full control

The applied CNC control enables:

programming in the G-code (ISO) standard,
linear and circular interpolation,
machining cycle operation,
operation in manual, MDI and automatic modes,
easy integration with CAD/CAM systems.

This solution is valued for its ease of use, operational stability and high configuration flexibility, making it an excellent alternative to traditional industrial controls.

Technical parameters

TABLE DIMENSIONS	800x260 mm
SPINDLE TAPER	*BT30 (option BT40)**
X-AXIS TRAVEL	404 mm
Y-AXIS TRAVEL	284 mm
Z-AXIS TRAVEL	451 mm
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE	500 mm
RAPID TRAVERSE	10/10/8 m/min
FEED RATE	2000 mm/min
X/Y/Z AXIS SERVO TORQUE	4.7/4.7/7.7 Nm
POSITIONING ACCURACY	±0.02 mm
REPEATABILITY	±0.01 mm
MAX. SPINDLE SPEED	8000 rpm
NUMBER OF TOOLS IN MAGAZINE	*12 option 16**
MOTOR POWER	2.2 kW
CONTROL	CNC G-CODE
WEIGHT	1300 kg
DIMENSIONS	2000x1800x2400 mm

Standard equipment

CNC G-CODE control
Spindle 8000 rpm
12-position tool magazine
Sealed working enclosure
Automatic lubrication system
Pneumatic system
LED lighting
3-colour alarm tower light
Lathe chuck, tailstock

Optional equipment*

Control system Siemens 828D, Siemens 808, FANUC
Spindle speed 10,000 / 12,000 rpm
Through-spindle coolant
4th axis
Belt-type chip conveyor + container

Choose proven technology – CNC machining centre MILL 400

By choosing the MILL 400 metal milling centre, you invest in a proven technical solution that meets the expectations of even the most demanding users. Gain precision, stability and professional technical support from CORMAK.

Contact our technical advisor and configure the machining centre to suit your production needs!

CNC Controls – SIEMENS SINUMERIK 808 Advanced, SINUMERIK 828D and Fanuc Oi-TF

We offer professional CNC control systems from renowned brands Siemens and Fanuc, ensuring precision, efficiency and ease of operation. Our solutions are ideal both for smaller workshops and demanding industrial applications.

CNC Machining Centre MILL 400 800x260 SIEMENS SINUMERIK control panel

Siemens Sinumerik 808D – compact CNC control for basic applications

SIEMENS SINUMERIK 808 Advanced is a modern, cost-effective CNC control dedicated to entry-level lathes and milling machines. The system has been designed for small and medium-sized enterprises, offering:

Intuitive operation – simple graphical interface facilitating machine programming and configuration.
High reliability – robust design resistant to demanding workshop conditions.
Wide compatibility – adapted to machines with basic technological requirements.
An excellent solution for beginner CNC users starting work with modern control systems.

Download user manual for SIEMENS SINUMERIK 808 Advanced

Siemens Sinumerik 828D – advanced control for demanding applications

Sinumerik 828D is a professional CNC control designed for milling machines and lathes requiring greater precision and performance. Its key features include:

High computing power – fast data processing enabling dynamic and accurate machining.
Advanced technological functions – advanced machining cycles, interpolation and toolpath optimisation functions.
Solid, compact construction – designed for operation in demanding industrial environments.
Easy integration with automation – possibility of expansion with additional modules and process control options.
CAD/CAM compatibility – seamless cooperation with design software and production management systems.

Download user manual for Siemens Sinumerik 828D

Fanuc Oi-TF – stability and precision in turning operations

Fanuc Oi-TF is one of the most popular CNC controls for lathes, known for its reliability and ease of use. The system is widely used in the metalworking industry thanks to:

Exceptional operational stability – reliability and precision even in long-term series production.
Advanced turning functions – supports various turning cycles, including threading, grooving, drilling and other cutting operations.
Intuitive user interface – fast programming and easy operation thanks to a clear display and optimised menu.
Wide compatibility – ability to cooperate with many lathe models.
Effective process optimisation – enables better control of machining parameters, saving time and materials.

With Fanuc Oi-TF, users gain confidence in stable and precise operation, resulting in higher productivity and machining quality.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Manufacturer: Cormak
