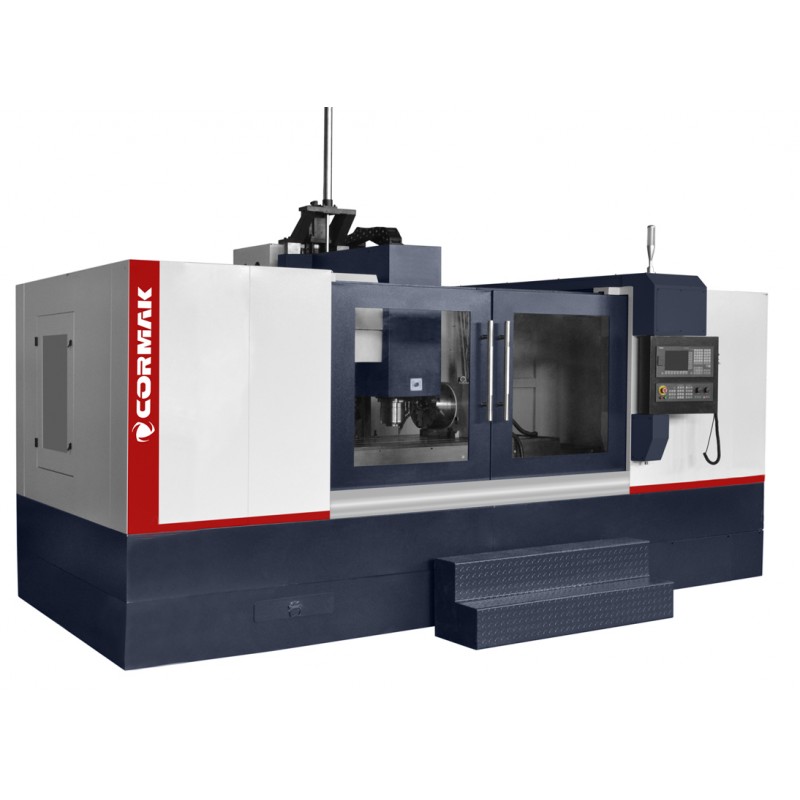

MILL 1780 Machining Centre – Precision and Efficiency in CNC Machining

MILL 1780 Machining Centre is an advanced vertical CNC machining centre designed for precision metal processing in demanding industrial applications. Equipped with Siemens Sinumerik 808 Advanced control, it ensures reliability and high efficiency.

Main Advantages of the MILL 1780 Machining Centre

The vertical machining centre MILL 1780 stands out with its robust construction and advanced technology, offering unparalleled precision and stability in machining heavy components. It is an ideal solution for companies seeking CNC machining centres that combine high quality with versatility. Key benefits include:

• High machining accuracy: Positioning accuracy of ±0.01 mm thanks to ball screws with a diameter of 40 mm and a lead of 8 mm, perfect for components with complex geometries.
• Structural stability: A massive cast-iron frame weighing 13,300 kg with a 4-way guide system minimises vibration, enabling the machining of parts weighing up to 960 kg.
• Performance: A spindle power of 15 kW and speeds up to 8,000 rpm combined with rapid feed rates of 15/15/12 m/min shorten the production cycle time.
• Safety: The hermetically sealed working chamber provides operator protection against dust and chips, creating an ergonomic work environment.
• Configuration flexibility: Can be upgraded with advanced control systems (Siemens 828D, Fanuc Oi-TF), through-spindle cooling and additional options tailored to specific production needs.
• Reliability: High-quality linear guides and mechanical components ensure long-term performance under demanding industrial conditions.
• Large working area: The 1700x800 mm table allows the machining of larger workpieces, increasing the machine’s versatility.

Construction and Technology of the MILL 1780 Machining Centre

The MILL 1780 metal milling centre was designed for durability and precision in demanding production environments. Key components include:

• Massive cast-iron frame: Weighing 13,300 kg, with widely spaced hardened and ground rectangular guides ensuring excellent rigidity.
• 4-way guide system: Increases stability and enables handling of heavy table loads, ideal for machining large workpieces.
• Linear guides: Top-quality guides on X, Y, and Z axes guarantee smooth movement and precision at rapid feeds of 15 m/min.
• BT50 spindle: With 15 kW power and up to 8,000 rpm belt drive, ensures efficient cutting performance.
• Ball screws: Precision screws with 40 mm diameter and 8 mm lead on all three axes ensure high accuracy and repeatability.
• Tool magazine: A 24-position BT50 magazine allows fast tool changes, increasing process efficiency.
• Automatic lubrication system: Minimises component wear, extending machine lifespan.
• Hermetic work chamber: Ensures safety and protection against contamination.

Precision and Performance

The CNC machining centre MILL 1780 offers exceptional precision thanks to the Siemens Sinumerik 808 Advanced control system. The positioning accuracy of ±0.01 mm and rapid traverse speeds of 15/15/12 m/min enable efficient machining of complex shapes. The control system optimises tool paths, reducing production time and minimising errors.

Application of the MILL 1780 Vertical Machining Centre

Vertical machining centres such as the MILL 1780 are used in many key industrial sectors, including:

• Automotive industry: Production of engine components, gearboxes, and suspension systems.
• Aerospace industry: Precision machining of components such as turbine blades and aircraft structures.
• Toolmaking industry: Manufacturing of injection moulds, dies, and other complex parts.
• Machine building: Production of heavy parts for industrial equipment and precision tools.

The machine is ideal for large production plants that require precision and flexibility in machining larger workpieces.

Standard Equipment

• Siemens Sinumerik 808 Advanced control system with a 2-year warranty
• Spindle speed 8,000 rpm
• 24-position BT50 tool magazine
• Three-colour alarm lights
• Work area lighting
• Closed cooling system
• Hermetically sealed enclosure
• Automatic lubrication system
• Pneumatic system

Optional Equipment*

• Siemens Sinumerik 828D or Fanuc Oi-TF control systems
• Spindle 10,000 or 12,000 rpm
• Through-spindle coolant (20 bar or 40 bar)
• 4th rotary axis
• Chip conveyor (chain or auger type)
• Renishaw TS27R tool setting probe
• Renishaw OMP60 workpiece probe
• Renishaw measurement cycles
• Oil and coolant separator
• Oil mist extractor
• Automatic doors
• Linear scales for 3 axes

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical Parameters

CNC Control Systems – Siemens and Fanuc

The MILL 1780 Machining Centre offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, ensuring precision, reliability, and ease of operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Simple to operate, ideal for smaller workshops and beginner users.
• Reliability: A robust design resistant to harsh industrial conditions.
• Cost-effectiveness: Dedicated for basic milling and turning applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and complex cycle management.
• CAD/CAM integration: Facilitates cooperation with design software.
• Advanced functions: Toolpath optimisation and expandability with additional modules.

Fanuc Oi-TF

• Stability: Proven reliability for serial production and long operation cycles.
• Advanced turning cycles: Perfect for precise cutting operations.
• Intuitive operation: Clear interface speeds up programming.
