Fibre laser cutting machines are modern devices offering numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also provide many benefits that enable production expansion (up to 70%) and improved quality. FIBER technology allows cutting of sheets and other materials of various thicknesses, from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These characteristics result in beam intensity that is 100 times higher than that of CO2 machines of comparable power.
Main advantages of the laser:
- maintenance-free optical fibre,
- no consumable components,
- the fibre laser source occupies about one-third less space,
- high energy efficiency – 100,000 h of operation,
- universal application (special steels, mild and stainless steels, copper, brass, aluminium, titanium).
Fibre laser
- increases work efficiency by 80%,
- reduces maintenance costs by 70%,
- saves 80% of energy,
- minimises gas consumption,
- saves 30% of workshop space.

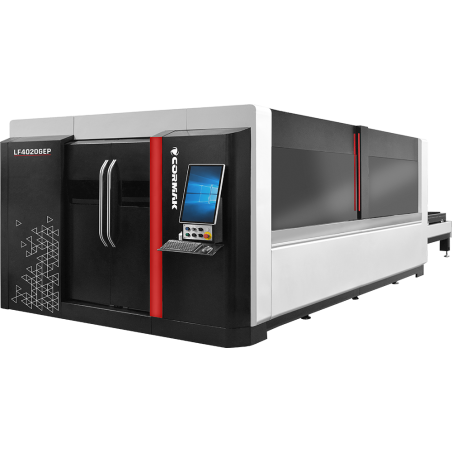

Safety and cleanliness
- fully enclosed laser body,
- observation window with CE-certified protective laser glass,
- fumes generated during cutting can be filtered internally, preventing environmental pollution.
Sliding gantry made of aerospace-grade aluminium
The sliding gantry structure is made of aged aerospace aluminium, formed under 4,300 tons of pressure, achieving excellent rigidity. Aerospace aluminium offers numerous advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.
Exchangeable work table
The exchangeable work table consists of upper and lower platforms, the movement and exchange of which are controlled by the system. The machine can complete a platform exchange cycle within 15 seconds.
Welded bed made of rectangular profiles
The bed structure features an internal honeycomb design made of multiple welded rectangular tubes. Internal stiffeners increase the bed’s durability, as well as the rigidity and stability of the guide rail, effectively preventing deformation. High strength, stability and tensile resistance ensure 20 years of operation without distortion.
Raytools cutting head
- Automatic focus adjustment – autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The autofocus adjustment speed is ten times faster than manual adjustment.
- Wider manual adjustment range – adjustment range -10 mm to +10 mm. Precision of 0.01 mm makes it suitable for materials of various thicknesses (0–20 mm) – below 1500W power.
- Long service life. Collimating and focusing lenses are equipped with a water-cooled radiator, reducing the temperature of the cutting head to extend its lifetime.
Technical parameters
| WORKING AREA |
6000x2000
|
| POWER |
6000W
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
120 m/min |
| MAXIMUM ACCELERATION |
1.5G |
| DIMENSIONS |
14800x3350x2310 mm |
| POWER SUPPLY |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
