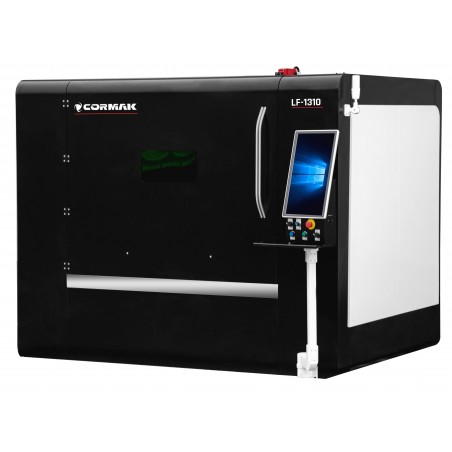

Fibre laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology but also offer many benefits that allow up to 70% production growth and improved quality. FIBER technology enables cutting of sheets and other materials of various thicknesses — from very thin to very thick. The wavelength of the FIBER laser is 1.064 µm, which provides an intensity 100 times higher than that of CO2 systems of comparable power.
Main advantages of the laser:
- reliable optical fibre,
- no wearing parts,
- fibre laser source occupies about one-third less space,
- high energy efficiency – 100,000 h of operation,
- versatile application (special steels, mild and stainless steel, copper, brass, aluminium, titanium).
Fibre laser
- increases work efficiency by 80%,
- reduces maintenance costs by 70%,
- saves 80% of energy,
- minimises gas consumption,
- saves 30% of floor space.
Safety and zero emissions
- fully enclosed laser housing,
- observation window with CE-standard protective laser glass,
- fumes generated during cutting can be filtered internally, without polluting the environment.
Sliding gantry made of aged aerospace aluminium
The gantry structure is made of aged aerospace aluminium formed under 4300-ton pressure, ensuring exceptional rigidity. Aerospace aluminium offers many benefits: high stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.
Bed welded from rectangular profiles
The bed structure has an internal honeycomb design made of multiple welded rectangular tubes. Reinforcements inside increase strength and improve the rigidity and stability of the guide rails, effectively preventing deformation. High strength, stability and tensile resistance ensure up to 20 years of use without distortion.
Raytools cutting head
- Automatic focus adjustment – autofocus. The software automatically regulates the focusing lens during cutting of sheets of various thicknesses. The autofocus speed is ten times faster than manual adjustment.
- Wider range of manual adjustment – adjustment range from –10 mm to +10 mm. The precision of 0.01 mm applies to various material thicknesses (0–20 mm) – for lasers below 1500W.
- Long service life. Collimating and focusing lenses feature a water-cooled heat sink, reducing the cutting head temperature and extending its lifespan.
Technical parameters
| WORKING AREA |
1500×3000 mm |
| POWER |
1000W, 2000W, 3000W, 4000W, 6000W |
| REPEAT POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
120 m/min |
| MAXIMUM ACCELERATION |
1.5G |
| DIMENSIONS |
4900×2850×2310 mm |
| POWER SUPPLY |
400V 50Hz |
Cutting parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
