Laser cutting machines are modern devices offering numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many features that increase production efficiency (up to 70%) and improve quality. FIBER technology enables cutting sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in a FIBER laser is 1.064 micrometres, which results in intensity 100 times higher than that of CO2 machines of similar power.
Main advantages of the laser:
- maintenance-free optical fibre,
- no wearing components,
- the fibre laser source occupies about one-third less space,
- high energy efficiency – 100,000 h of operation,
- universal use (special steels, mild and stainless steel, copper, brass, aluminium, titanium).
Fibre laser
- increases productivity by 80%,
- reduces maintenance costs by 70%,
- saves 80% of energy,
- minimises gas consumption,
- saves 30% of workshop space.

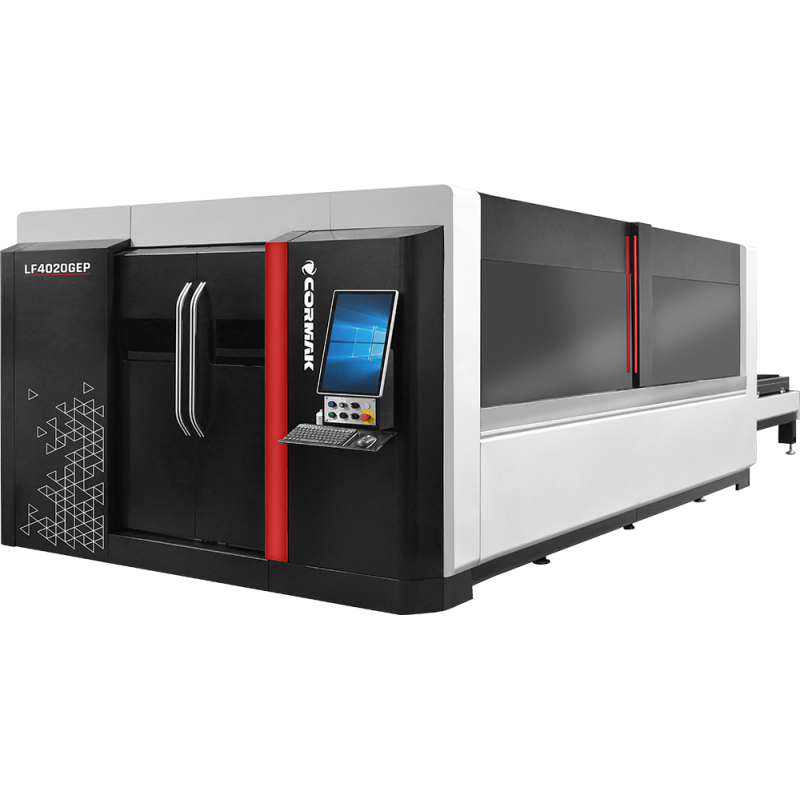

Safety and Clean Operation
- fully enclosed laser housing,
- observation window with CE-certified laser-protective glass,
- cutting fumes are filtered internally, ensuring environmental safety.
Sliding Gantry Made of Aged Aerospace Aluminium
The sliding gantry is made from aged aerospace aluminium, formed under 4,300 tonnes of pressure, providing exceptional rigidity. Aerospace aluminium offers numerous benefits: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and excellent machinability.
Exchangeable Working Table
The exchangeable working table consists of upper and lower platforms whose movement and replacement are controlled by the system. The machine can complete a platform exchange in just 15 seconds.
Welded Rectangular Frame Bed
The bed structure features an internal honeycomb design made of multiple welded rectangular tubes. Internal reinforcements improve strength, rigidity, and guide rail stability, effectively preventing deformation. High durability and tensile strength ensure 20 years of distortion-free operation.
Raytools Cutting Head
- Automatic focus adjustment – autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The automatic focus adjustment speed is ten times faster than manual adjustment.
- Wider manual adjustment range – adjustment range -10 mm to +10 mm. Precision of 0.01 mm suitable for materials of 0–20 mm thickness (below 1500W).
- Long service life. Collimating and focusing lenses have water-cooled radiators, reducing the temperature of the cutting head and extending its lifespan.
Technical Parameters
| WORKING AREA |
2000x4000
|
| POWER |
1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W
|
| REPEAT POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
120 m/min |
| MAXIMUM ACCELERATION |
1.5G |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
