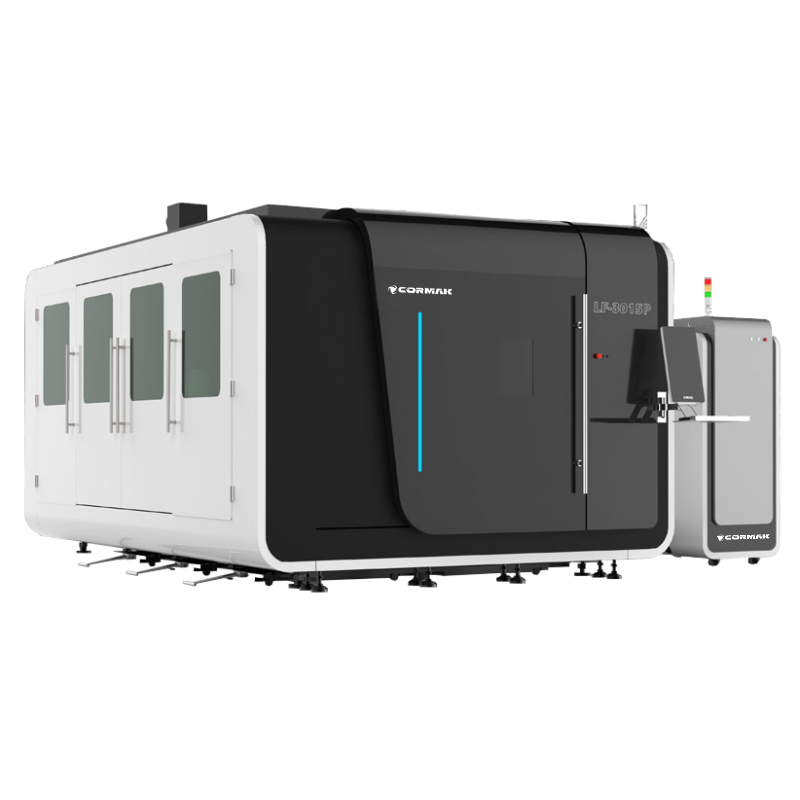

Fibre Laser Cutter CORMAK FIBER 3015P

The latest premium-class fibre laser cutting machine. The fully enclosed FIBER laser is equipped with a camera for real-time process monitoring and control. The use of components from leading global manufacturers ensures long service life and reliability. A wide range of available laser power options from 1kW to 8kW.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€199,875.00

Product available on request. Please contact our sales department.

Fiber Lasers
designed and assembled in Poland

Fibre laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO₂ technology, but they also feature many benefits that allow production to expand (up to 70%) and improve its quality. FIBER technology enables cutting sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometres. These properties affect the intensity, which is 100 times greater than in CO₂ systems of similar power.

Main advantages of the laser:

reliable optical fibre,
no wearing parts,
fibre laser source occupies about one-third less space,
high energy efficiency – 100,000 h of operation,
universal use (special steels, mild steel, stainless steel, copper, brass, aluminium, titanium).

Fibre laser

increases work efficiency by 80%,
reduces maintenance costs by 70%,
saves 80% of energy,
minimises gas consumption,
saves 30% of floor space.

Fibre Laser Cutting Machine CORMAK FIBER 3015P

Safety and cleanliness

fully enclosed laser design,
observation window with CE-certified laser protective glass,
fumes generated during cutting can be filtered inside, without polluting the environment.

Sliding gantry made of aged aviation aluminium

The gantry construction is made of aged aviation aluminium formed with a pressure of 4,300 tonnes, achieving outstanding rigidity. Aviation aluminium offers many advantages: high stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.

Fibre Laser Cutting Machine CORMAK FIBER 3015P

Precitec cutting head

Automatic focus adjustment – autofocus. The software automatically adjusts the focusing lens during the cutting of sheets with different thicknesses. The autofocus adjustment speed is ten times faster than manual adjustment.

Extended manual adjustment range – adjustment range -10 mm to +10 mm. Accuracy of 0.01 mm allows use with materials of various thicknesses (0–20 mm) – below 1500W power.

Long service life. The collimating and focusing lenses have a water-cooled heat sink to reduce the cutting head temperature, extending its lifespan.

Welded bed made of rectangular profiles

The bed design has an internal honeycomb structure made of multiple welded rectangular tubes. Inside the tubes are stiffeners that increase the bed’s strength and enhance the rigidity and stability of the guide rail to prevent deformation effectively. High strength, stability, and tensile resistance guarantee 20 years of operation without deformation.

Fibre Laser Cutting Machine CORMAK FIBER 3015P

Monitoring

A high-resolution camera enables the monitoring of the cutting process without interrupting or opening the machine, significantly improving safety and work efficiency.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical parameters

WORKING AREA	1500x3000 mm
POWER	1000W 2000W 3000W 4000W 6000W 8000W
REPEAT POSITIONING ACCURACY	±0.02 mm/m
MAXIMUM SPEED	120 m/min
MAXIMUM ACCELERATION	1.5G
DIMENSIONS	5425x3150x2530 mm
POWER SUPPLY	400V 50Hz
