Laser cutting machines are modern devices with numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many inherent benefits that allow production to increase (up to 70%) and improve its quality. The FIBER technology enables cutting of sheets and other materials of various thicknesses, from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These properties affect beam intensity, which is 100 times higher than that of CO2 systems of comparable power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free optical fibre,
- no consumable components,
- fibre laser source takes up about one-third less space,
- high energy efficiency – 100,000 h of operation,
- universal application (special steels, mild and stainless steel, copper, brass, aluminium, titanium).
Fibre laser
- increases working efficiency by 80%,
- reduces maintenance costs by 70%,
- saves 80% of energy,
- minimises gas consumption,
- saves 30% of workspace area.
Safety and Clean Operation
- Fully enclosed laser,
- Observation window with CE-standard protective glass,
- Fumes generated during cutting can be filtered internally without polluting the environment.
Dual Application and Cost Efficiency

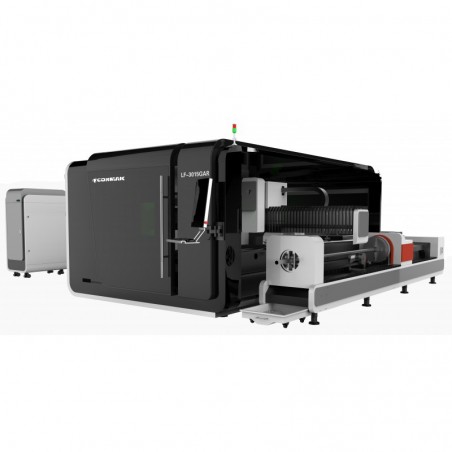

The FIBER LF3015GEPR not only cuts sheet metal but also tubes and profiles. It offers multiple applications and saves more than 50% of floor space, effectively increasing productivity.
Sliding Gantry Made of Aged Aerospace Aluminium
The gantry structure is made of aged aerospace aluminium formed under 4,300 tonnes of pressure, achieving outstanding rigidity. Aerospace aluminium has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and excellent machinability.
Electric Clamping Chuck
The chuck grips the profile in two directions and automatically performs profile alignment. The diagonal adjustment range is 20–200 mm.
Exchangeable Worktable
The exchangeable worktable consists of upper and lower platforms, whose movement and replacement are controlled by the system. The machine can complete the platform exchange in 15 seconds.
Automatic Tube Support
The intelligent tube support system effectively eliminates deformation during the cutting process of long tubes.
Welded Bed Made of Rectangular Tubes
The bed structure has an internal honeycomb design made of multiple welded rectangular tubes. Reinforcements inside the tubes increase the strength of the bed and the stiffness and stability of the guide rails, effectively preventing deformation. High strength, rigidity, and tensile resistance ensure 20 years of operation without distortion.
Raytools Cutting Head
- Automatic Focus Adjustment – Autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The autofocus speed is ten times faster than manual adjustment.
- Extended Manual Adjustment Range – Adjustment range -10 mm to +10 mm, precision 0.01 mm, suitable for different material thicknesses (0–20 mm) – below 1500W power.
- Long Service Life. The collimating and focusing lenses feature water-cooled radiators to reduce the cutting head temperature and extend its lifespan.
Technical Parameters
| WORKING AREA |
1500×3000 |
| POWER |
1000W 1500W 2000W 3000W 4000W 6000W 12000W |
| REPEAT POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
120 m/min |
| MAXIMUM ACCELERATION |
1.5 G |
| DIMENSIONS |
9500×3760×2520 mm |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
